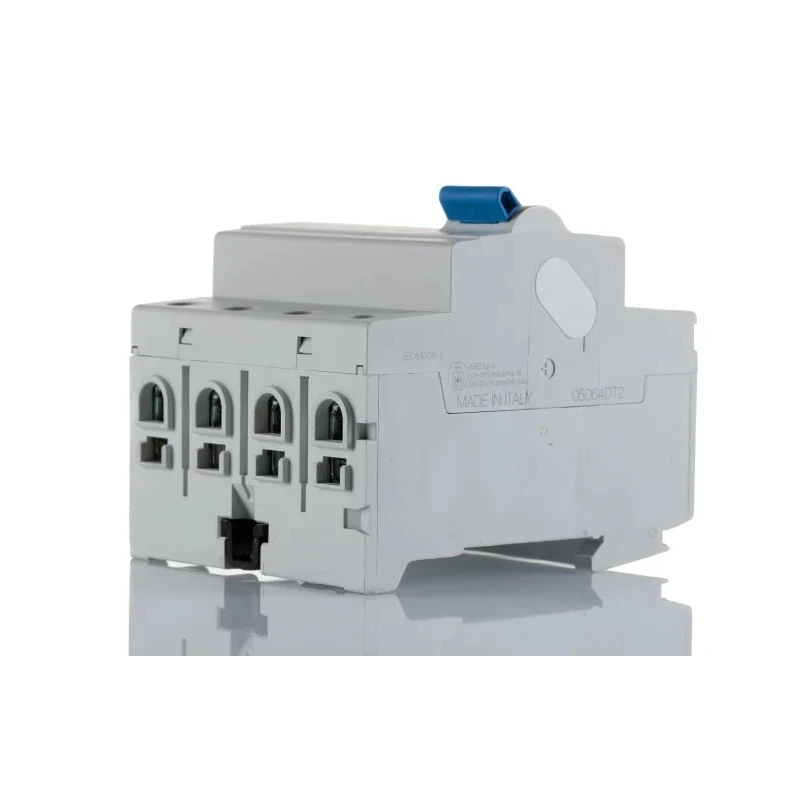

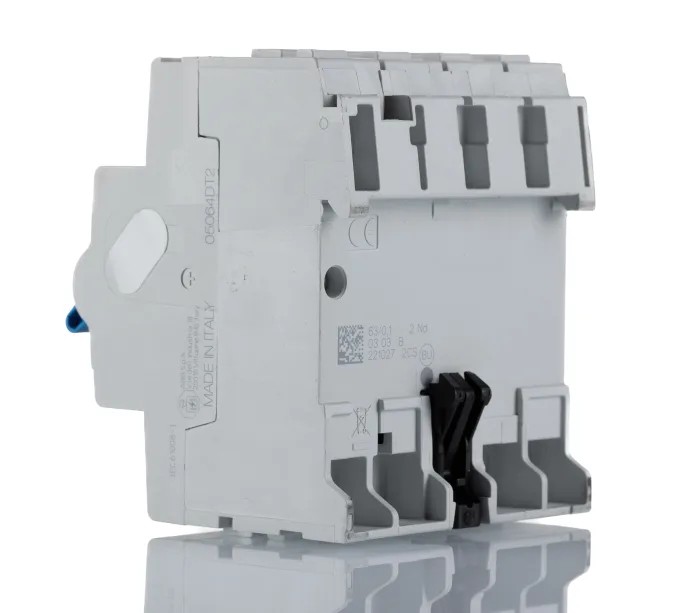

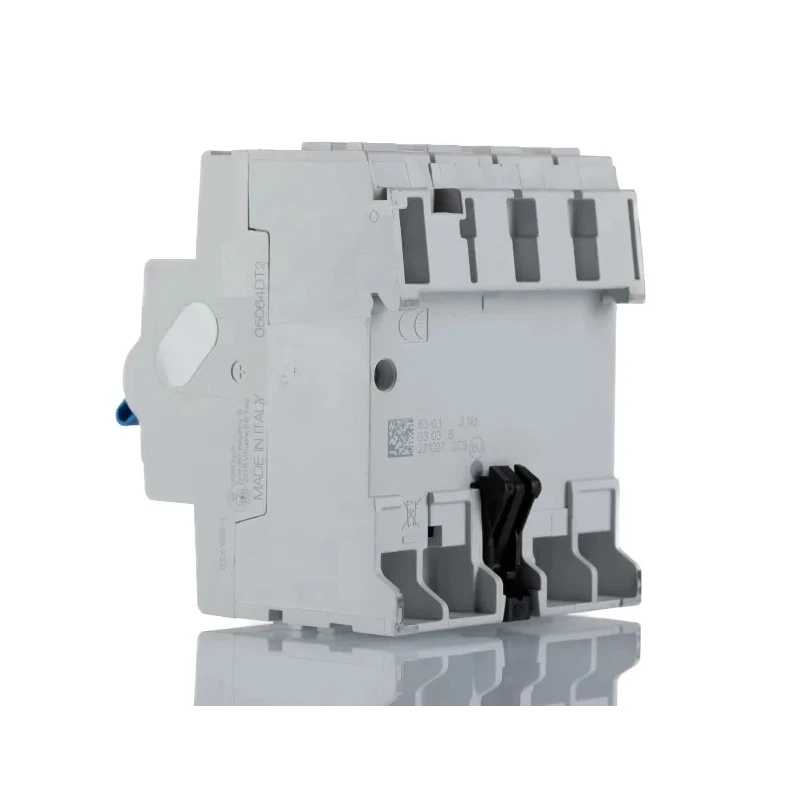

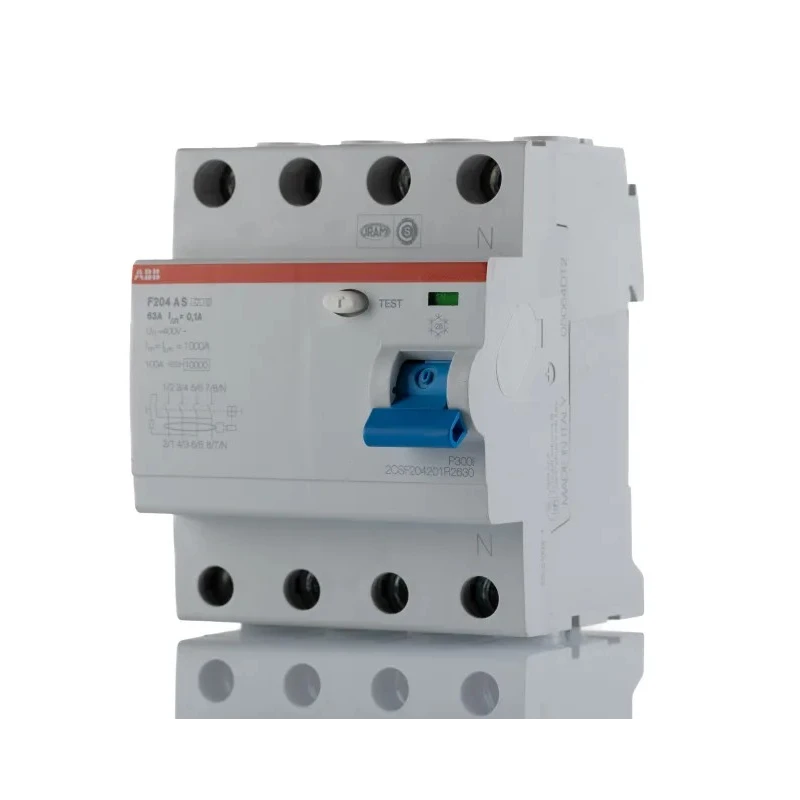

ABB Residual Current Circuit Breaker 63A 4-Pole 100mA Type A 1kA Breaking Capacity 277V AC 2CSF204201R2630 F204 A S-63/0,1

ABB 2CSF204201R2630 F204 A S-63/0,1 Residual Current Circuit Breaker is a selective protection device designed to safeguard electrical circuits by detecting earth leakage currents. Rated for 63 amperes with 4 poles, it operates at 277V AC and provides trip sensitivity at 100mA Type A to protect personnel and equipment from earth faults and leakage currents.

This circuit breaker uses an instantaneous electromagnetic tripping mechanism for rapid fault response, minimizing downtime and preventing damage. Its compact form factor measuring 70mm width, 85mm height, and 69mm depth allows for convenient DIN rail mounting in electrical panels.

With a breaking capacity of 1 kiloampere, it safely interrupts short circuits and fault currents. The toggle switch actuator allows the device to be reset quickly after tripping. The screw terminal type terminals provide secure and robust electrical connections suitable for industrial and commercial installations.

Compliant with CE, IEC EN 61008, and RoHS standards, this ABB F200 Series RCCB is built to the highest international quality and safety benchmarks. Manufactured in Italy, it offers reliable and long-lasting protection.

Applications for this Residual Current Circuit Breaker include lighting installations, renewable energy systems, and automotive workshops where electrical safety is paramount. Its selective operation ensures that only faulty sections of the system are disconnected, maintaining overall operational continuity.

The device exhibits a typical power loss of only 4.4 watts per pole, contributing to energy-efficient system operation. The circuit breaker supports a rated AC voltage of 277V for reliable operation. Features instantaneous electromagnetic tripping mechanism for fast response to faults.

Compact DIN rail mount design with dimensions 70mm (W) x 85mm (H) x 69mm (D) ensures easy installation. Breaking capacity of 1kA ensures safe interruption of fault currents. Manufactured in Italy and complies with CE, IEC EN 61008 and RoHS standards.

Toggle switch reset actuator enables quick and easy reactivation after a trip. Includes screw terminal connections for secure wiring. Designed for use in lighting systems, renewable energy setups, and automotive workshop electrical safety.

Power consumption is low with typical power loss of 4.4W per pole for energy efficiency. Provides earth leakage protection of type A for enhanced safety. Explore more quality electrical protection devices in the RTR circuit breakers and fuse category on EnvMart for reliable and certified industrial and commercial safety solutions.
