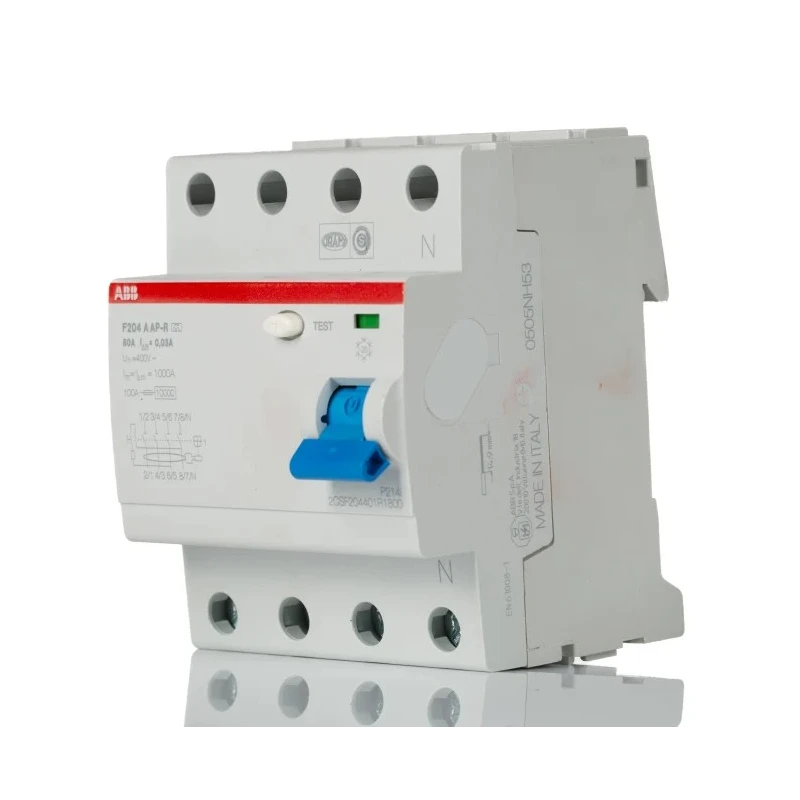

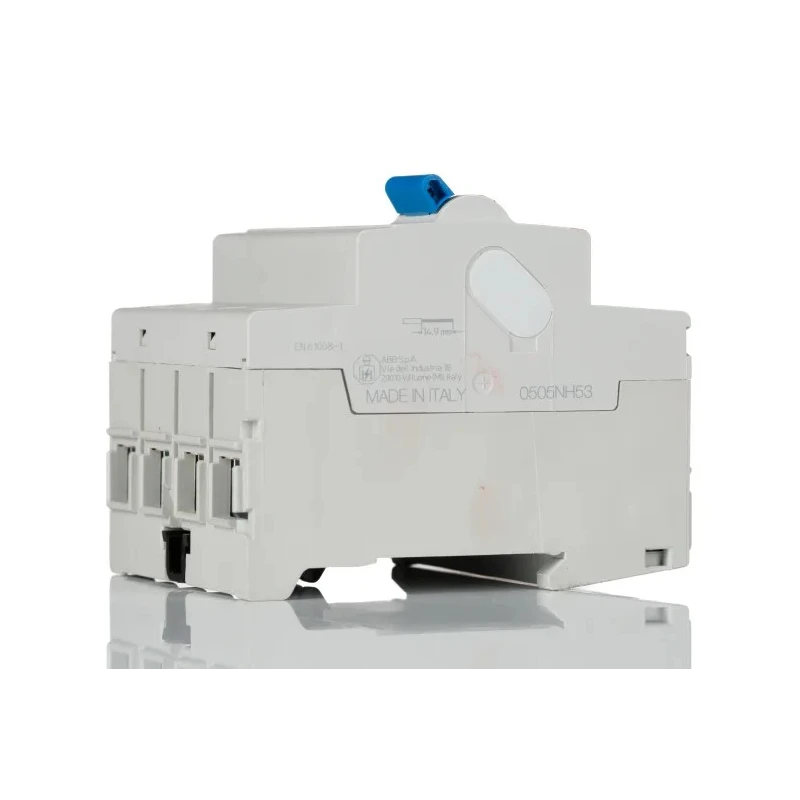

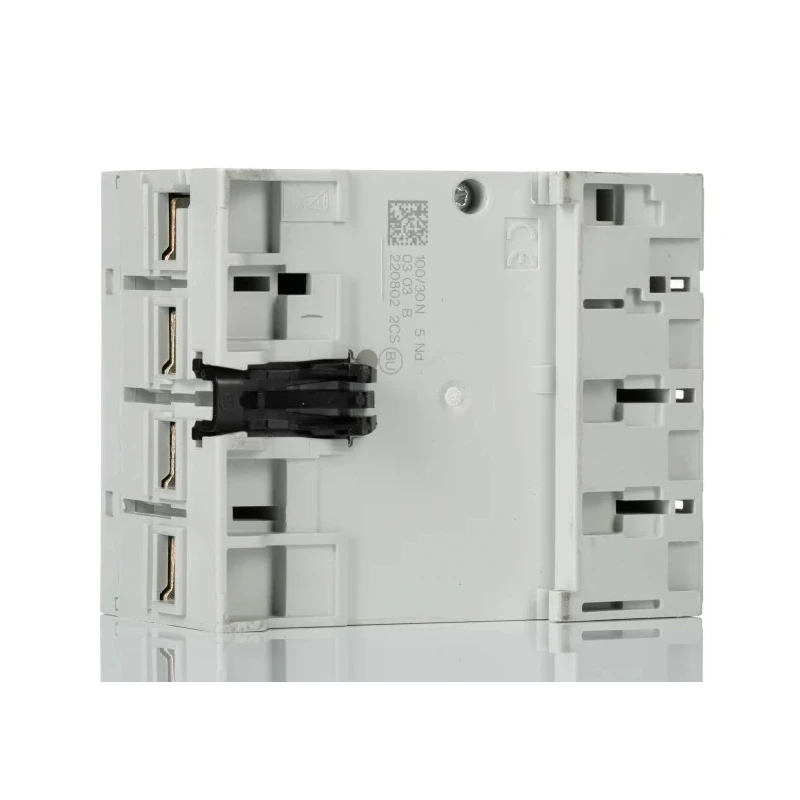

ABB F200 Series Residual Current Circuit Breaker 80A 4-Pole 30 mA Type A 1 kA 480V AC 2CSF204401R1800 F204 A-80/0,03 AP-R

ABB 2CSF204401R1800 F204 A-80/0,03 AP-R Residual Current Circuit Breaker is a high-performance electrical protection device designed for industrial, commercial, and manufacturing environments operating at 480V AC. The device features a low power loss of 5.3W per pole enabling energy-efficient operation.

With four protective poles, this RCCB efficiently monitors multiple circuits simultaneously, making it an ideal solution for compact electrical panel installations where space is critical. Designed with an instantaneous electromagnetic tripping mechanism and Type A trip sensitivity, it provides reliable protection against residual AC and pulsating DC currents over 30 mA.

The circuit breaker easily mounts on standard DIN rails for quick, tool-free installation. Its slim dimensions (70mm width, 85mm height, 69mm depth) allow easy integration into busy electrical panels without compromising space.

Safety is further enhanced with a front-mounted toggle switch for quick reset after tripping events and screw terminal connections for durable and secure wiring. The device possesses a breaking capacity of 1 kA, ensuring it can handle fault currents safely to protect personnel and equipment.

Certifications including CE marking, IEC EN 61008 standard compliance, and RoHS conformity guarantee adherence to rigorous safety and environmental standards. Made in Italy, the ABB RCCB offers reliable long-term service with a rated electrical operation lifespan of 10,000 cycles.

Instantaneous tripping mechanism delivers rapid response to current leakage. Type A trip characteristic safeguards against AC and pulsating DC residual currents. Compact DIN rail mount design for efficient panel layouts.

High breaking capacity of 1kA supports industrial fault protection requirements. Toggle switch reset actuator simplifies operational convenience. Screw terminal ensures secure electrical connection reliability. Compliant with CE, IEC EN 61008, and RoHS standards for quality and safety.

Manufactured in Italy, guaranteeing high build quality standards.

This ABB Residual Current Circuit Breaker is ideal for installation in retail industry electrical systems, server management infrastructure, and manufacturing facilities where reliable earth leakage protection is critical. Its slim profile and robust trip mechanism provide dependable electrical fault interruption while maintaining compliance with high safety standards.
