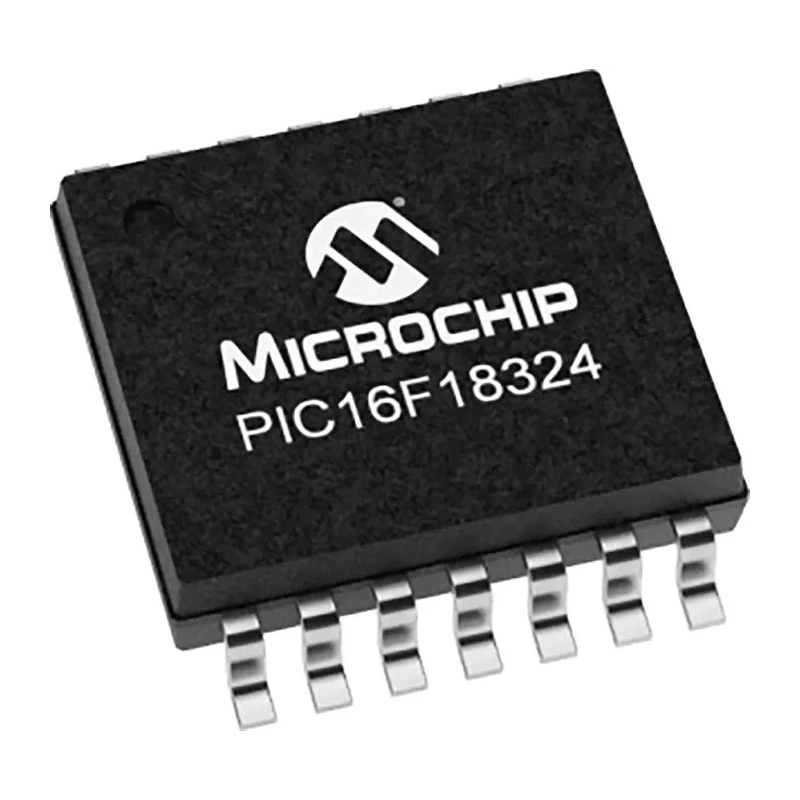

Microchip 8-bit PIC Microcontroller PIC16F18324-I/SL, 32 MHz, 7kB FLASH, 14-Pin SOIC

Microchip PIC16F18324-I/SL is an 8-bit PIC microcontroller designed with enhanced mid-range core architecture featuring 49 instructions and 16 stack levels. Operating at a maximum clock frequency of 32 MHz, it integrates 7kB of FLASH program memory and 512-bit RAM, suited for low power and general purpose applications across industrial, automotive, and embedded systems.

This microcontroller operates with a supply voltage range of 2.3V to 5.5V and supports multiple low-power modes including IDLE and DOZE, enabling efficient power management for portable and battery-powered designs.

Key peripheral modules include 12 programmable I/Os, two 8-bit timers (TMR0 and TMR2), one 16-bit timer (TMR1), an extended watchdog timer (WDT), and communication interfaces facilitated by peripheral pin select (PPS).

Analog capabilities consist of 11 channels of 10-bit Analog-to-Digital Converters (ADCs) with voltage reference, 2 analog comparators, and a 5-bit Digital to Analog Converter (DAC). Timer and pulse width modulation (PWM) units include 2 CCP modules with complementary waveform generation, numerically controlled oscillator (NCO), and two configurable logic controllers (CLC), enabling flexible hardware control.

Designed to meet the automotive AEC-Q100 standard and RoHS compliance, the PIC16F18324-I/SL package is a surface mount SOIC with 14 pins, measuring 8.65mm in length, 3.9mm in width, and 1.5mm in height. It is manufactured in Thailand and suitable for industrial, automotive, consumer electronics, and embedded control systems.

Features enhanced 8-bit PIC mid-range core with 49 instructions and 16 stack levels. Includes 7kB FLASH memory and 512-bit RAM for versatile program storage. Operates at up to 32 MHz clock frequency with low power consumption.

Provides 12 programmable I/O pins and multifunctional timers. Incorporates 11-channel 10-bit ADCs with voltage reference and DAC. Meets RoHS and automotive AEC-Q100 quality standards. Compact 14-pin SOIC surface mount package measuring 8.65 x 3.9 x 1.5 mm.

Operating temperature from -40°C to 85°C suitable for industrial applications. Includes peripheral modules such as PWM, CCP, NCO, CLC, and CWG for enhanced control. Ideal for embedded systems, automotive electronics, and industrial automation.

Explore more industrial-grade microcontrollers and embedded solutions in our Electronics & Electricals Semiconductor Microcontroller category at EnvMart.
