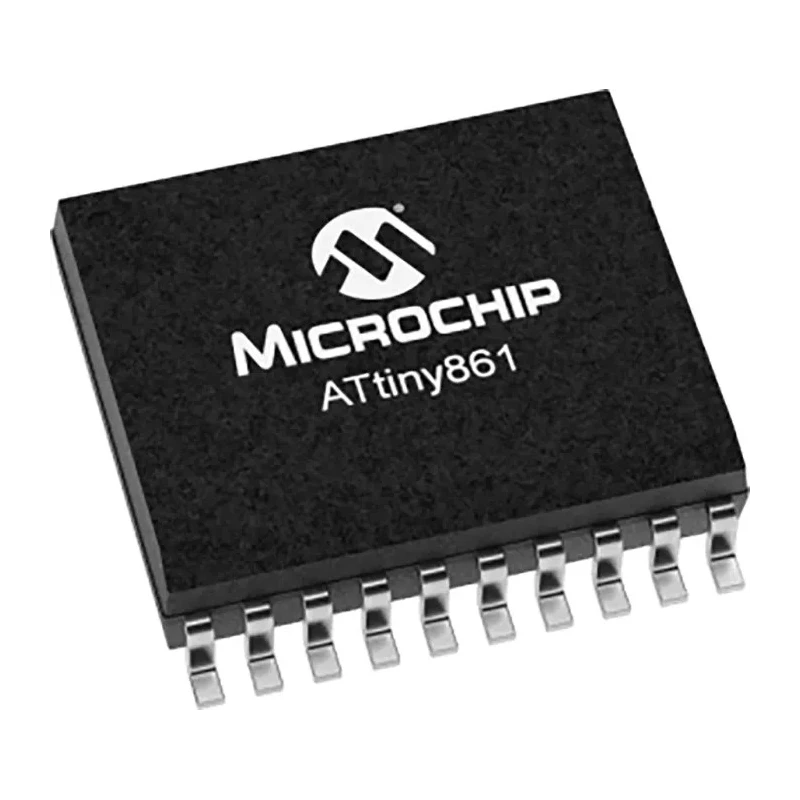

Microchip 8 bit AVR Microcontroller 20 MHz 8kB FLASH 20-Pin SOIC ATTINY861-20SU

Microchip ATTINY861-20SU is an 8-bit AVR microcontroller designed for high-performance applications requiring efficient power management and compact size. Featuring a 20 MHz maximum clock frequency and 8kB of ISP flash memory, this device balances processing speed with low power consumption. It is encapsulated in a 20-pin SOIC package suitable for surface mount applications.

The microcontroller integrates 512 bytes EEPROM and 512 bytes SRAM to support versatile data storage and real-time operations. It offers 16 programmable input/output lines providing flexibility for interfacing with various peripheral devices. Communication interfaces include SPI and Universal Serial Interface (USI), enabling connectivity with external devices and sensors.

Operating voltage ranges from 2.7 V minimum to a maximum of 5.5 V, accommodating a wide array of industrial and commercial power environments. Robust operation is ensured within a temperature range of -40°C to 85°C. The device architecture follows a 8-bit RISC instruction set delivering approximately 1 MIPS per MHz, supporting timely and efficient processing.

Additional features include dual 8-bit timers, an 11-channel 10-bit analog to digital converter (ADC) for precise signal measurement, and a programmable watchdog timer enhancing reliability through reset capabilities. The microcontroller also supports various power-saving modes to optimize energy consumption in battery-operated or embedded systems.

This microcontroller is well suited for embedded industrial systems, consumer electronics, and applications requiring compact, low power, high-performance microcontrollers. Package dimensions are compact with a height of 2.35 mm, width of 7.6 mm, and length of 13 mm enabling dense PCB layouts.

High-performance 8-bit AVR RISC-based microcontroller. Includes 512 bytes EEPROM and 512 bytes SRAM memory. Operates at 2.7V to 5.5V supply voltage range. Provides 16 programmable general-purpose I/O lines. Includes 11-channel 10-bit ADC and two timers.

Supports SPI and USI interface types for communication. Encapsulated in compact 20-pin SOIC surface mount package. Operating temperature range from -40°C to 85°C. Program memory type is flash with fast ISP programming. Equipped with watchdog timer and multiple power saving modes.

This Microchip microcontroller model ATTINY861-20SU is ideal for electronic and embedded systems, providing reliable and efficient processing capabilities. Explore a wide range of Microcontrollers and components within the Electronics & Electricals category at EnvMart.
