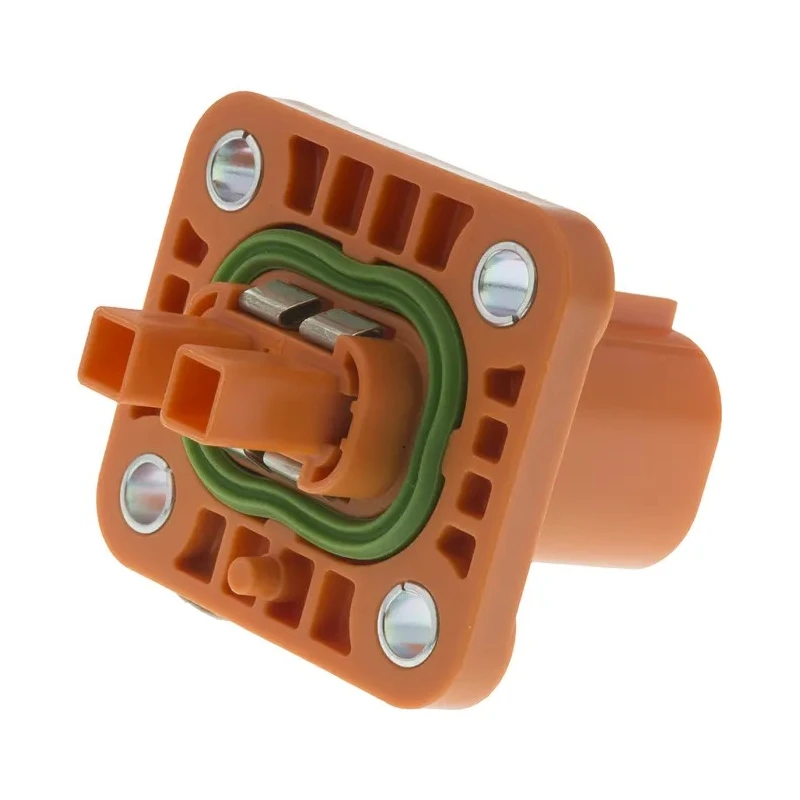

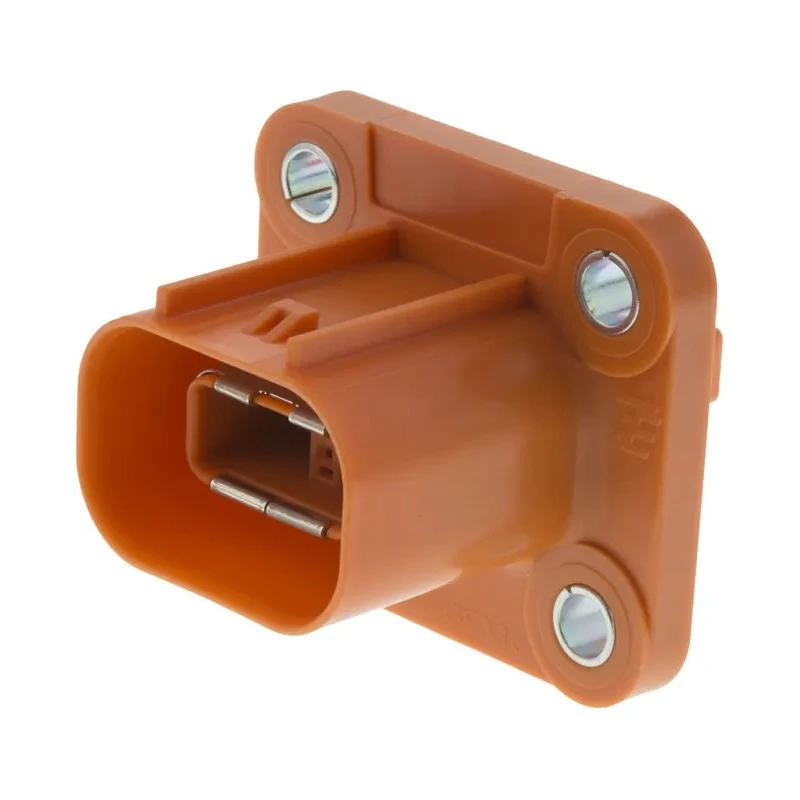

TE Connectivity HVA280 Assembly EV Connector Female, 250A, Panel Mount, IP67/IP6K9K, 1000V, Screw Termination HVA280
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| Orientation | Straight |
| Current | 250A |
| Height | 45.4mm |
| Temperature range | -40°C to 140°C |
| Model | HVA280 |
| Depth | 31.1mm |
| IP Rating | IP67, IP6K9K |
| Connector Type | Assembly |
| Width | 40.6mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Current Rating | Up to 40A @ 85°C |
| Series | HVA280 |
| Termination Type | Screw |
| Maximum Operating Temperature | 140°C |
| Voltage Rating | Up to 600V individually shielded wire up to 750V multicore wire |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 2.8mm |
| Number of Rows | 1 |
| Wire size | 2, 4mm² |
| Operating Voltage | 1000V |
| Shielding | 360° from wire to device |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
Key Features
- The connector supports 1 row and 2 contacts for high current applications.
- It operates at up to 1000V with screw termination for secure wiring.
- Suitable for operating temperatures ranging from -40°C to 140°C.
- Orange plastic housing with tin-plated contacts ensures durability and corrosion resistance.
- Designed for high voltage header use in electric vehicle and renewable energy systems.
- Compliant with touch-proof design and integrates HVIL features for safety.
- IP67 and IP6K9K ratings ensure resistance against water and dust ingress.
Product Description
TE Connectivity HVA280 Assembly EV Connector Female is engineered for high-power electric vehicle and automotive electrical connector applications. This assembly supports a current rating of 250A and operates at an operating voltage of 1000V, providing reliable and safe power transmission with screw termination type ensuring secure contact retention. The connector is designed to withstand harsh industrial conditions with an operating temperature range from -40°C to 140°C and features robust plastic housing with tin-plated contacts for corrosion resistance.
The connector is configured with a single row and two contacts, supporting wire sizes between 2 and 4 mm². Its straight orientation and panel mount type make it suitable for integration into various electric vehicle and renewable energy systems. The orange color housing improves visibility and identification.
IP67 and IP6K9K ingress protection ratings guarantee resistance to dust and water, making it ideal for outdoor and industrial environments. The connector features a type A key and touch-proof design protecting against accidental contact. It includes a 2.8mm pin diameter contact and an internal HVIL (High Voltage Interlock Loop) for enhanced safety.
TE Connectivity's AMP+ HVA280 headers provide a modular and flexible solution for medium to high current EV connector applications, supporting multi-core and individually shielded wiring options. This ensures package size optimization and system flexibility.
This product supports sustainability goals as a Better World product with renewable energy solution claims. The connector supports 1 row and 2 contacts for high current applications. It operates at up to 1000V with screw termination for secure wiring.
Suitable for operating temperatures ranging from -40°C to 140°C. Orange plastic housing with tin-plated contacts ensures durability and corrosion resistance. Designed for high voltage header use in electric vehicle and renewable energy systems.
Compliant with touch-proof design and integrates HVIL features for safety. Dimensions: 45.4mm height, 40.6mm width, 31.1mm depth with straight orientation. IP67 and IP6K9K ratings ensure resistance against water and dust ingress.
Explore more EV connectors and advanced electrical Connector solutions at EnvMart, your destination for industrial and automotive electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HVA280 connector supports a current rating of 250A.
It operates at a maximum voltage of 1000V.
The connector has dimensions of 45.4mm in height, 40.6mm in width, and 31.1mm in depth.
It is suitable for operating temperatures ranging from -40°C to 140°C.
This connector features a screw termination type for secure wiring.
It has IP67 and IP6K9K ratings, ensuring resistance against water and dust ingress.
The contact pin diameter is 2.8mm.
It is configured with 2 contacts in a single row.
The housing is made of plastic with tin-plated contacts for corrosion resistance.
Yes, it features a touch-proof design and integrates HVIL (High Voltage Interlock Loop) for enhanced safety.
It is designed for high voltage header use in electric vehicle and renewable energy systems.
This model supports panel mount installation.
