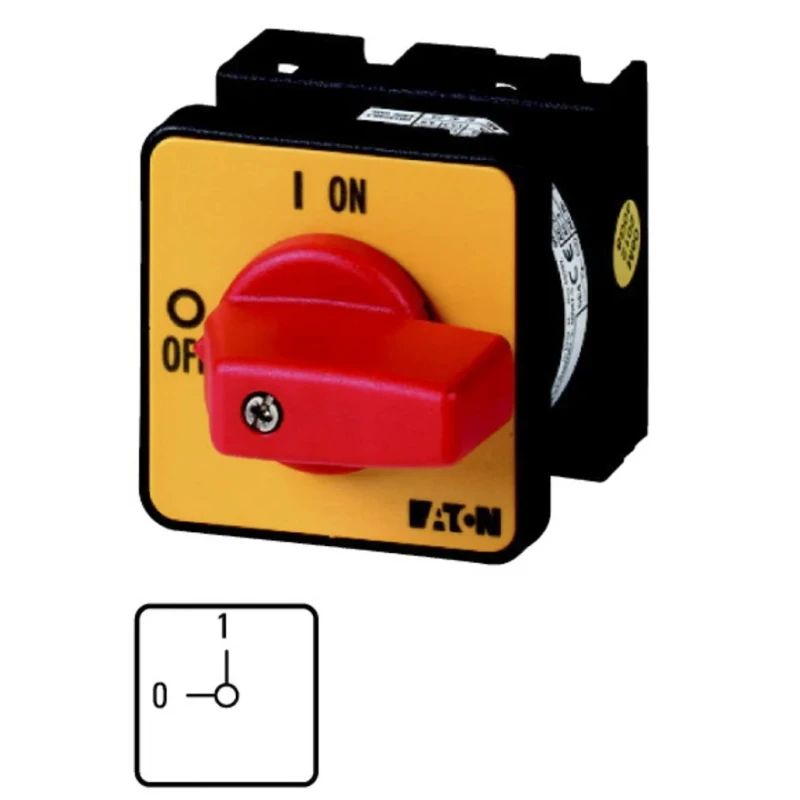

Eaton Cam Switch 2 Position 90° Toggle Actuator 20A Flush Mount T0 Series 009046 T0-1-102/E-RT

Eaton 009046 T0-1-102/E-RT Cam Switch features a robust 2-position 90° toggle actuator designed for industrial switchgear applications. This flush mount cam switch is rated for 20A contact current and suitable for disconnecting power across single-phase or three-phase circuits safely and efficiently.

The switch allows manual disconnection of circuit power to selected equipment zones, ensuring safety during maintenance and servicing. The front face is IP65 rated providing excellent resistance against dust ingress and low-pressure jets of water, making it well suited for challenging industrial environments.

The toggle actuator offers a comfortable thumb grip and clearly marked ON and OFF positions to facilitate straightforward manual operation. Secure, screw terminal connections minimize maintenance and ensure reliable wire retention.

This device is compliant with key international standards including UL, VDE 0660, CE, IEC/EN 60204, CSA, and IEC/EN 60947, ensuring electrical and operational safety. Its mechanical life expectancy is up to 400000 operations, delivering a durable solution for automation and process control systems.

Compactly sized at 75mm length, 81mm width, and 90mm depth, the switch is suitable for integration into electrical panels where space optimization is important. Country of origin is United Kingdom, and the product is supplied as a complete unit ready for installation.

This cam switch offers reliable manual disconnection for industrial equipment safety. The toggle actuator provides clear on and off positions for operational ease. Rated for 20A contact current and 690V AC contact voltage for versatile use.

Flush mounting enables neat installation with screw terminal wiring for secure connections. Designed with IP65 front face rating for dust-tight and water protection in industrial environments. Operates reliably within -25°C to 50°C temperature range.

Mechanical life rated for up to 400000 operations for long service life. Complies with UL, VDE 0660, CE, IEC/EN 60204, CSA, and IEC/EN 60947 standards. Compact dimensions with 75mm length, 81mm width and 90mm depth. Explore Eaton products and the Cam Switch category on EnvMart for high-quality electrical automation solutions.
