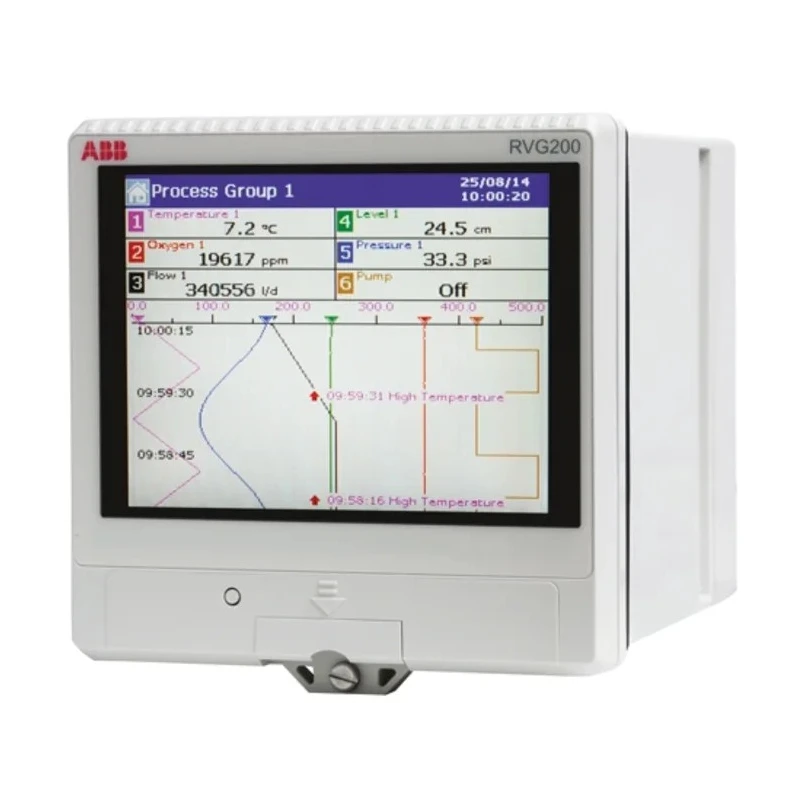

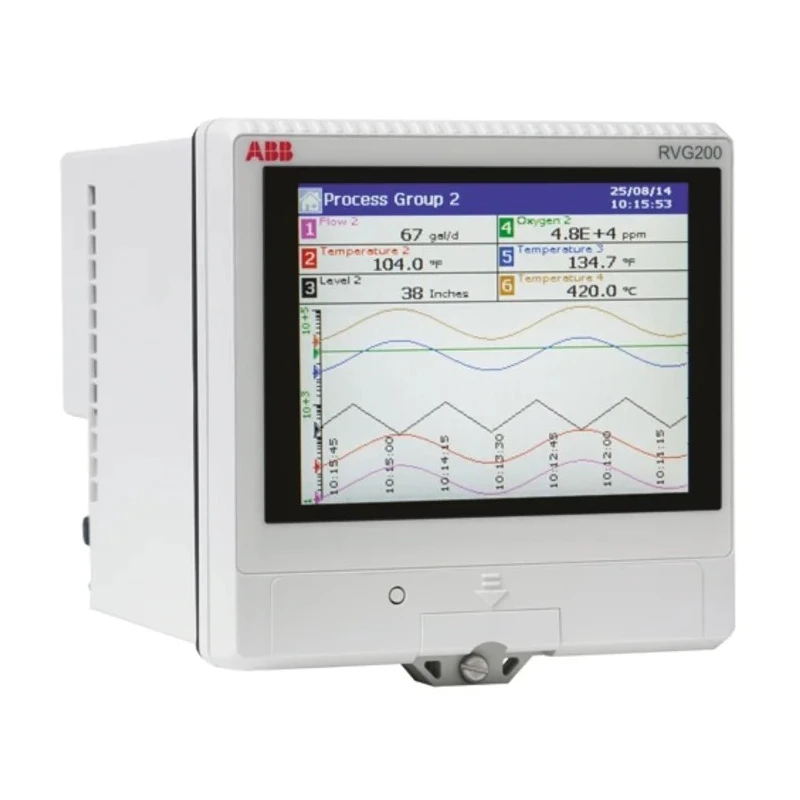

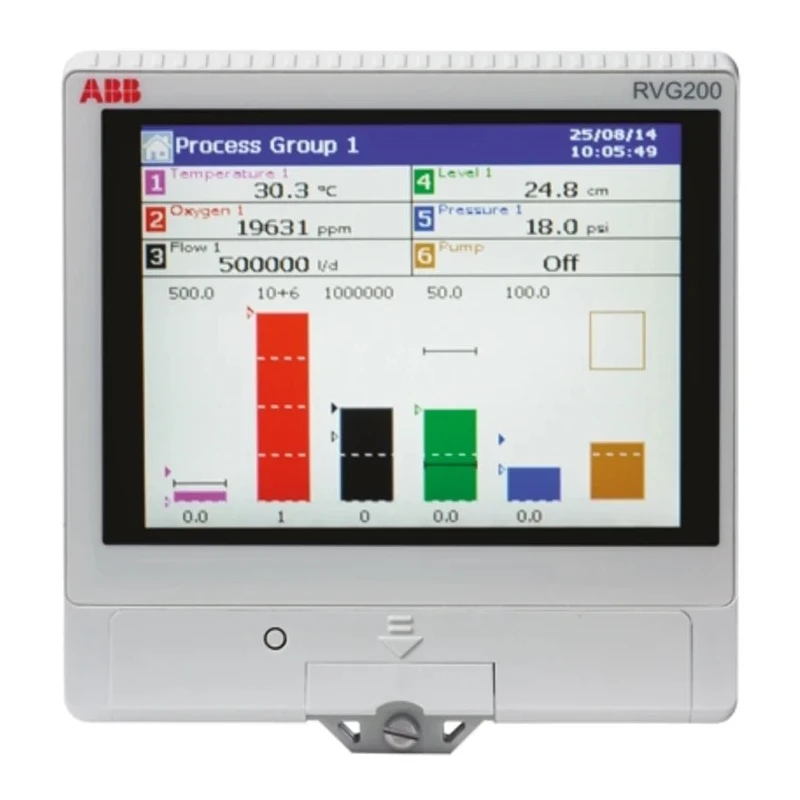

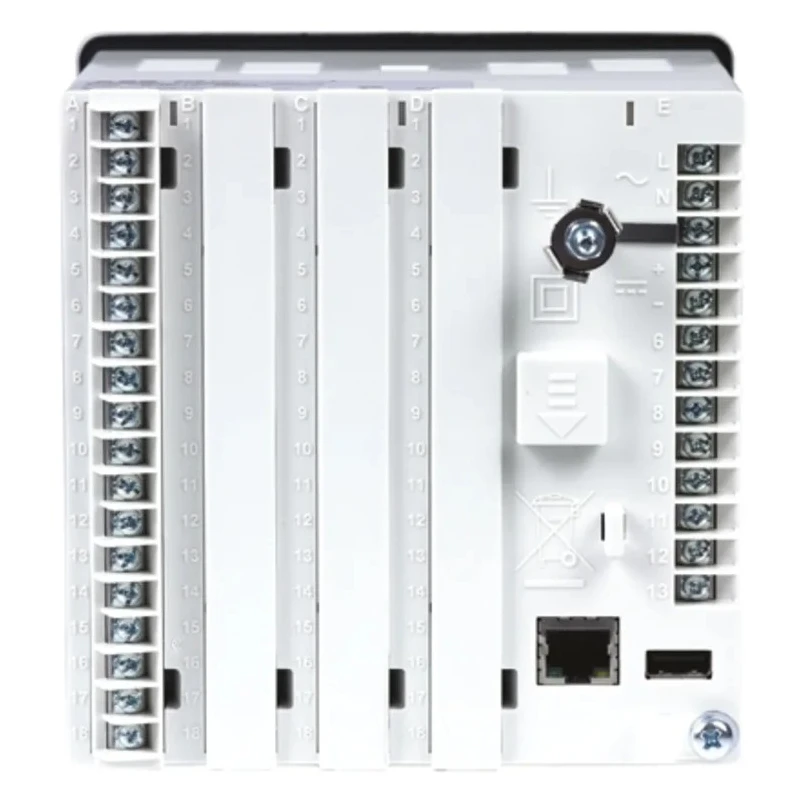

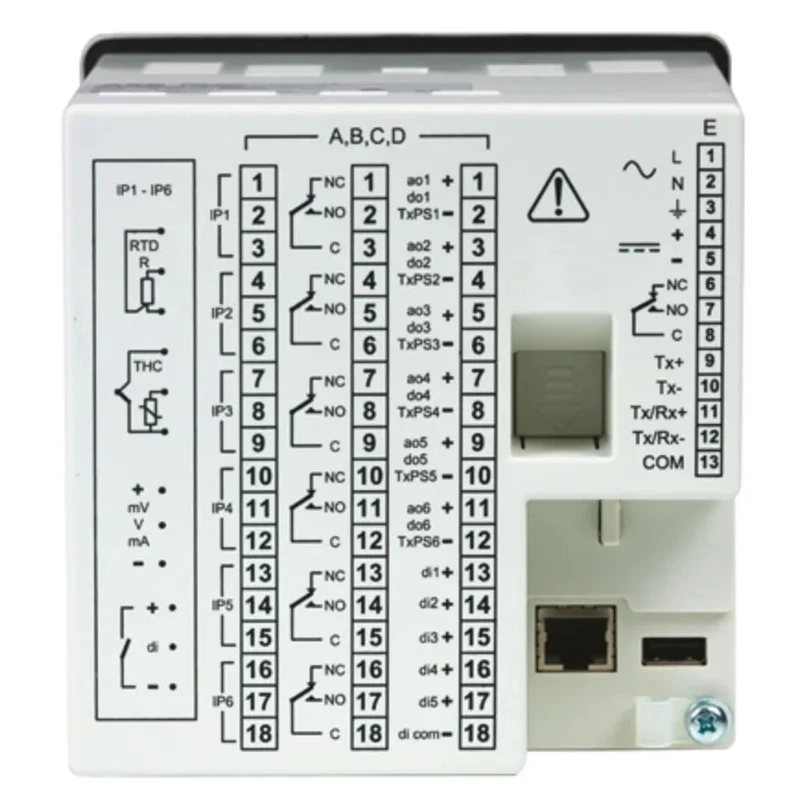

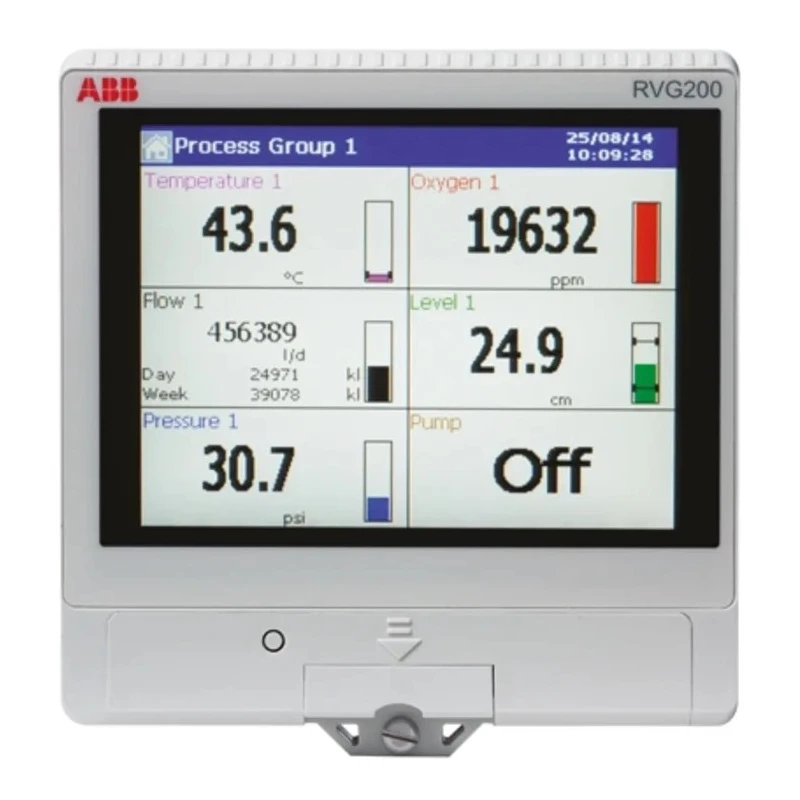

ABB RVG200 1-Channel Paperless Chart Recorder Current, Millivolt, Resistance, Temperature, Voltage RVG200A6A6Y0Y0A

ABB RVG200A6A6Y0Y0A 1-Channel Paperless Chart Recorder offers advanced measurement and monitoring capabilities for industrial and laboratory applications. Designed for high precision, it supports electrical parameters including current, millivolt, resistance, temperature, and voltage with an accuracy of 0.1%. This model features a 5.7-inch TFT touchscreen display that facilitates fast, intuitive operation through swipe gestures, enhancing usability in demanding environments.

The device supports Ethernet and RS485 MODBUS RTU master and slave interfaces, allowing easy network integration into existing control systems for remote data access and process supervision. The RVG200 ensures data security by storing recorded data in an encrypted format in its 2GB internal memory, safeguarding critical process information.

Its paperless design enables efficient data acquisition without the need for consumables, making it ideal for continuous monitoring applications such as manufacturing, water treatment, HVAC, and process control industries.

The recorder includes USB ports supporting peripherals such as keyboards, mice, and barcode scanners, enhancing operator interaction and system flexibility. The product is supplied with DataManager Pro PC software, facilitating extensive data review and optional advanced features through licensing.

Compact and robust, the unit measures 145 mm in height, 154.5 mm in width, and 145 mm in length, weighing approximately 2 kg. Its construction meets industrial standards, although no explicit certifications are listed.

Features 1 channel with paperless recording capability for efficient data logging. Measures current, millivolt, resistance, temperature, and voltage with 0.1% accuracy. Equipped with a 5.7-inch crystal clear TFT touchscreen display with swipe gesture controls.

Supports Ethernet and RS485 MODBUS RTU communication for easy network integration. Offers high data security recording with up to 2GB internal memory storage. Includes USB ports for peripherals like keyboard, mouse, or barcode scanner.

Comes with DataManager Pro PC software for data review and advanced data management. Compact dimensions of 145 mm height, 154.5 mm width, and 145 mm length, weighing 2 kg.

This ABB RVG200 chart recorder is suitable for industrial, laboratory, and process control applications requiring secure and reliable monitoring of electrical signals without paper chart wear and maintenance. Its integration capabilities make it an optimal choice for automation systems and industrial network environments.

Explore EnvMart’s complete range of Chart Recorders and measuring instruments to find ideal solutions for your data acquisition and logging needs.
