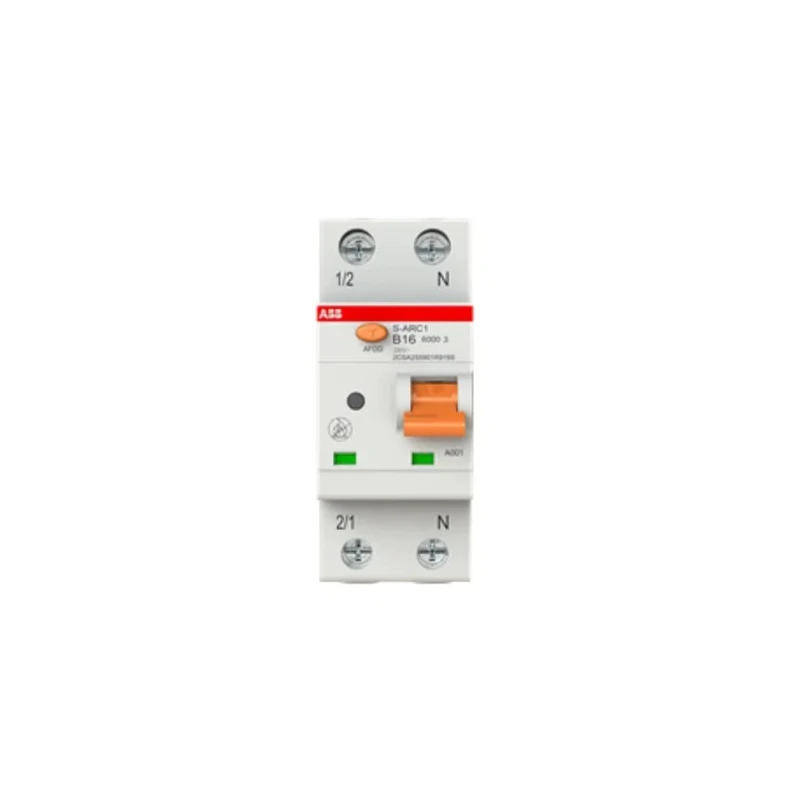

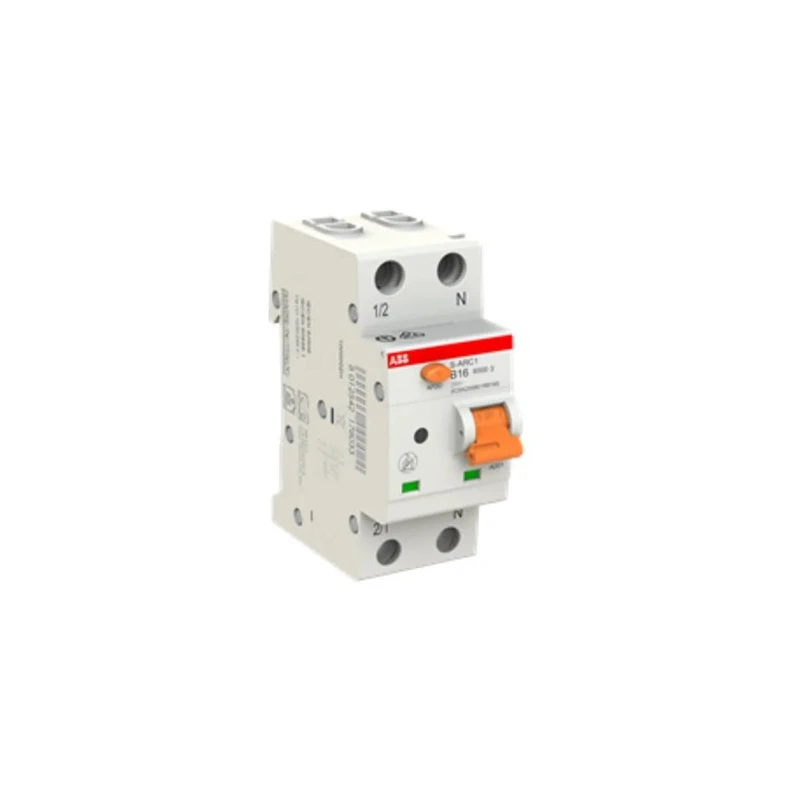

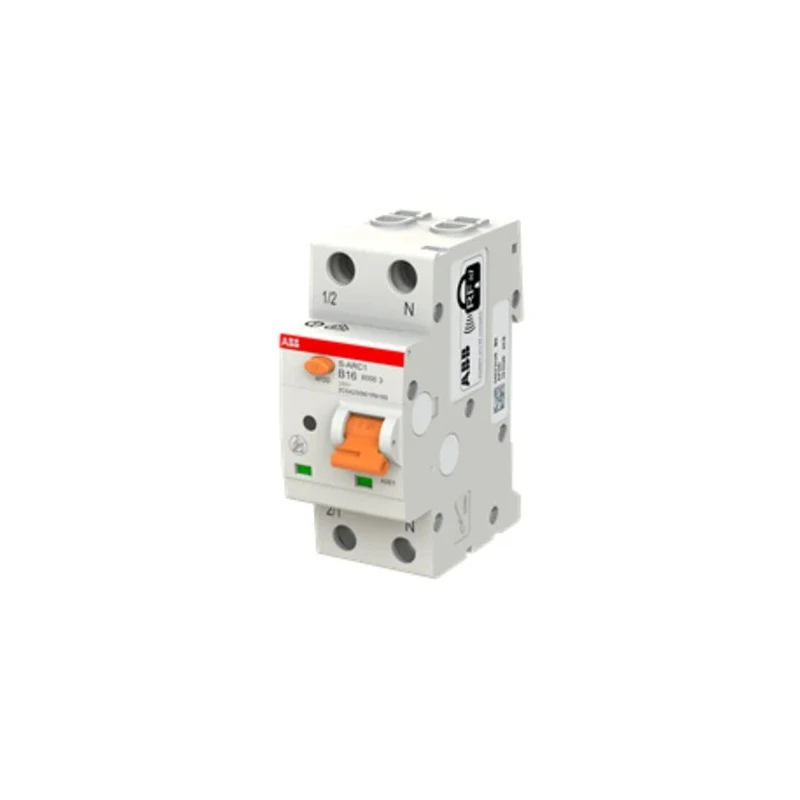

ABB Miniature Circuit Breaker 1-Pole, 16A, Type B, 240V AC, 6 kA Breaking Capacity ARC1

Free Delivery in India | Lowest Global Shipping Charges

ABB Miniature Circuit Breaker 1-Pole, 16A, Type B, 240V AC, 6 kA Breaking Capacity ARC1



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	S-ARC1
Brand	ABB
Height	85mm
Model	ARC1
Depth	69mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	16A
Series	S-ARC1
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 62606
Rated AC Voltage	240V ac
Tripping Characteristics	Type B
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch

Key Features

Rated for 16 A current suitable for residential and commercial applications.
Type B tripping characteristics ensure precise and reliable operation under standard load conditions.
240V AC rated voltage supports common electrical supply systems.
6 kA breaking capacity provides effective protection against overcurrent faults.
Compact DIN rail mount design allows easy and secure installation.
Toggle switch actuator offers simple and fast reset functionality.
Screw terminal type enhances secure electrical connections.
Compliant with IEC/EN 60898-1 and IEC/EN 62606 standards for safety and performance.

Product Description

ABB ARC1 Miniature Circuit Breaker, model ARC1, is a single-pole device rated for 16 amperes current at a voltage of 240V AC. Designed to provide robust protection against short circuits and overloads, it is a vital component in residential, commercial, and light industrial electrical distribution systems.

This Miniature Circuit Breaker features Type B tripping characteristics, making it well suited for protecting circuits with standard load profiles and tolerating high inrush currents typical of motors and inductive loads. Its thermal magnetic tripping mechanism ensures accurate and reliable performance under various fault conditions.

Constructed to meet IEC/EN 60898-1 and IEC/EN 62606 standards, it also carries a breaking capacity of 6 kA, offering strong electrical fault interruption capability. The screw terminal type secures electrical connections, while the toggle switch actuator allows straightforward manual operation for resetting the device after trips.

The device is designed with a compact DIN rail mount for easy integration into standard electrical panels, measuring 85mm in height, 35mm in width, and 69mm in depth. It offers protection levels of IP20 and IP40, suitable for indoor environmental conditions.

Applications include protection of electrical circuits in residential installation boards, commercial buildings, and industrial automation systems, ensuring safety and continuity of power supply by preventing damage due to electrical faults.

Rated for 16 A current suitable for residential and commercial use. Type B tripping characteristics for reliable overload protection. 6 kA breaking capacity safeguards circuits from high fault currents. Compact design with DIN rail mounting for easy installation.

Toggle switch for convenient resetting after trip events. Complies with IEC/EN 60898-1 and IEC/EN 62606 standards. Screw terminal ensures secure wiring connections. IP20 and IP40 rated enclosure for environmental protection.

Dimensions optimized for panel fitting (85x35x69 mm). Thermal magnetic tripping mechanism for consistent performance.

This ABB Miniature Circuit Breaker ARC1 is manufactured in Italy, assuring high construction quality and reliability. It is an essential product for ensuring electrical circuit safety in various installations.

Explore EnvMart for a comprehensive range of electrical circuit protection devices and ABB products suitable for industrial and commercial electrical safety needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a current of 16A, making it suitable for residential and commercial applications.

It has a breaking capacity of 6 kA, providing effective protection against overcurrent faults.

It features Type B tripping characteristics, which are designed for reliable operation under standard load conditions and can tolerate high inrush currents typical of motors and inductive loads.

The ABB ARC1 is rated for a voltage of 240V AC, compatible with common electrical supply systems.

It is designed for DIN rail mounting, allowing for easy and secure installation in standard electrical panels.

The dimensions of this unit are 85mm in height, 35mm in width, and 69mm in depth.

It uses a screw terminal type, which enhances the security of electrical connections.

The device has an IP rating of IP20 and IP40, suitable for indoor environmental conditions.

It complies with IEC/EN 60898-1 and IEC/EN 62606 standards for safety and performance.

It features a toggle switch actuator for simple and fast reset functionality after a trip event.

It is suitable for protecting electrical circuits in residential installation boards, commercial buildings, and industrial automation systems.

This miniature circuit breaker is manufactured in Italy, ensuring high construction quality.
