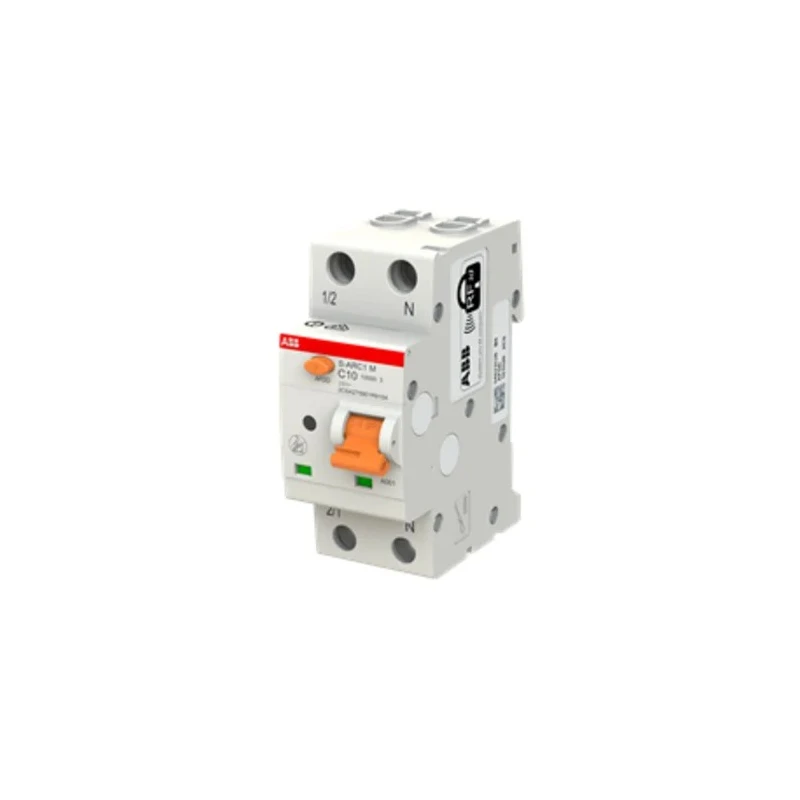

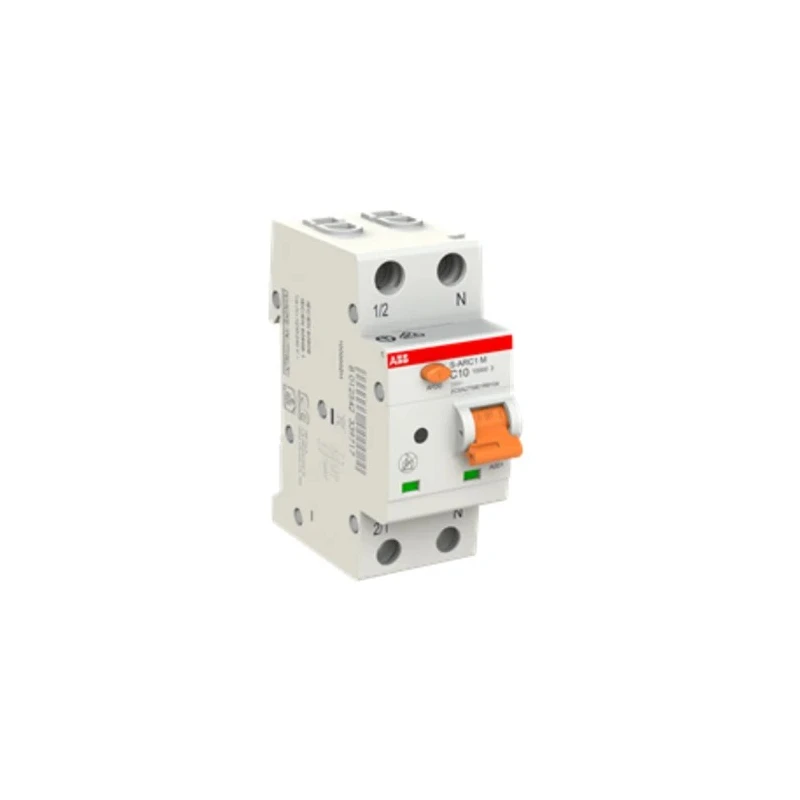

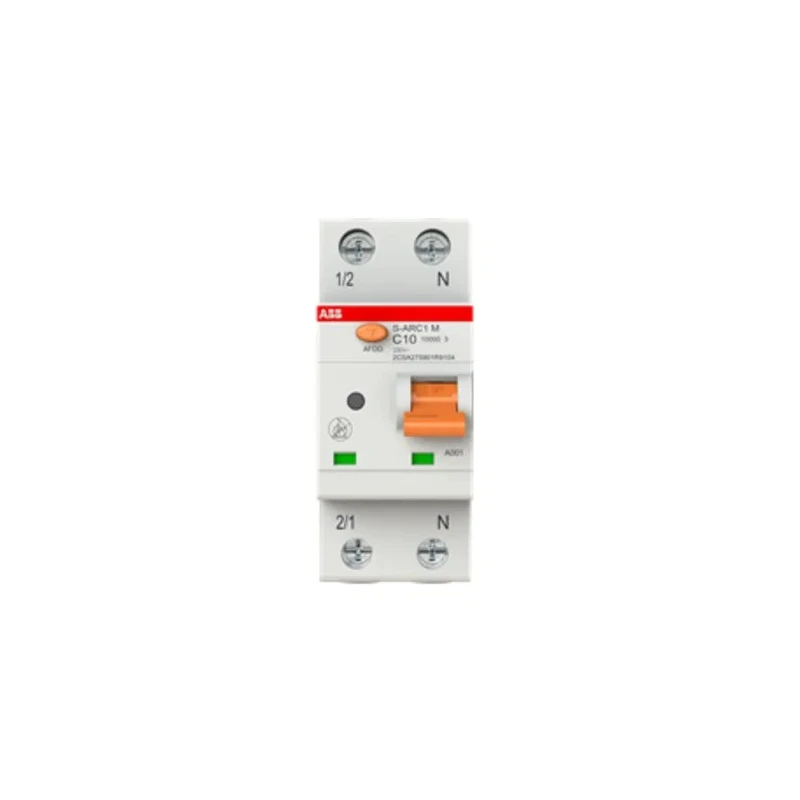

ABB S-ARC1 M Miniature Circuit Breaker 1-Pole 10A Type C 240V AC 10 kA Breaking Capacity ARC1

ABB ARC1 Miniature Circuit Breaker (MCB) model ARC1 provides essential electrical safety by offering short circuit and overload protection in residential, commercial, and industrial electrical installations. With a single pole and 10A current rating, this device operates reliably at a rated AC voltage of 240V and withstands fault currents up to 10 kA, ensuring high breaking capacity protection.

The device utilizes a thermal magnetic tripping mechanism featuring Type C tripping characteristics, enabling it to handle moderate overloads and transient surges without causing nuisance trips, safeguarding connected equipment efficiently. Its screw terminal design provides robust and secure connections, reducing risks of loose contacts in demanding environments.

The compact form factor with dimensions (85mm height, 35mm width, 69mm depth) and DIN rail mount type facilitates easy installation in electrical panels and switchboards, particularly in space-constrained setups. The toggle switch reset actuator simplifies manual resetting post-trip events, enhancing convenience for maintenance.

Certified to IEC/EN 60898-1 and IEC/EN 60947-2 standards, the MCB meets international quality and safety benchmarks. The device is rated IP20 and IP40 for ingress protection, providing durability in typical electrical installations.

Ideal applications include residential wiring systems, industrial automation for motor protection, commercial electrical distribution, and electronic equipment safeguarding. Its reliable performance prevents electrical hazards and ensures system continuity.

Provides effective short circuit protection for electrical systems. Features Type C tripping characteristics suitable for moderate overloads. Includes a toggle switch reset actuator for easy reset after tripping. Screw terminal contacts ensure secure and stable connections.

Compact DIN rail mounting design allows easy installation and space saving. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. IP20 and IP40 rated for protective environmental use. Robust thermal magnetic tripping mechanism offers reliable protection.

Dimensions: 85mm height, 35mm width, 69mm depth for streamlined fitting. Manufactured in Italy to high quality standards. Explore the ABB range of Miniature Circuit Breakers and electrical protection devices for reliable industrial and commercial applications on EnvMart.
