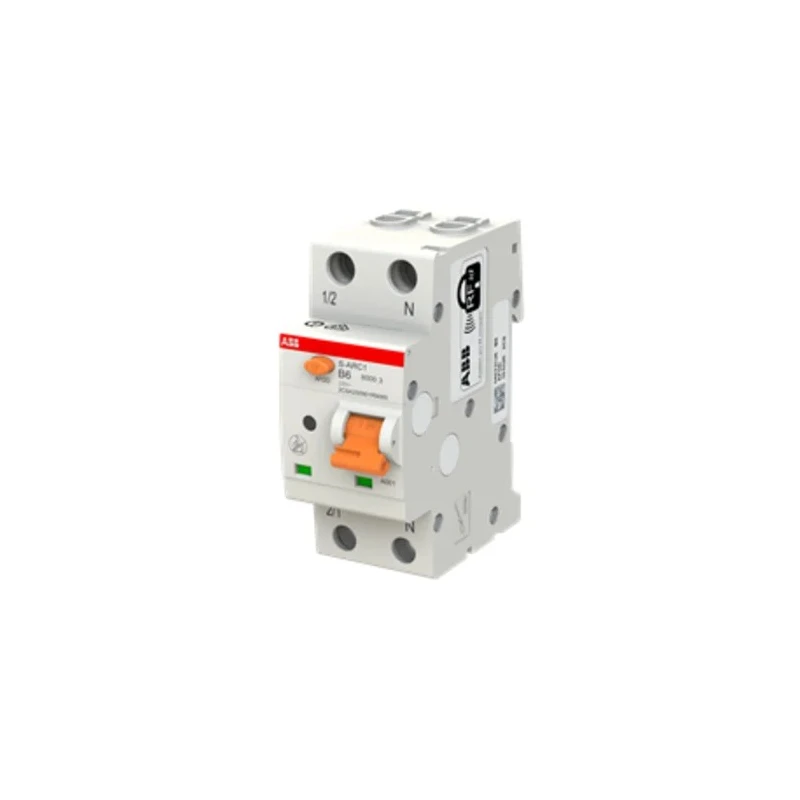

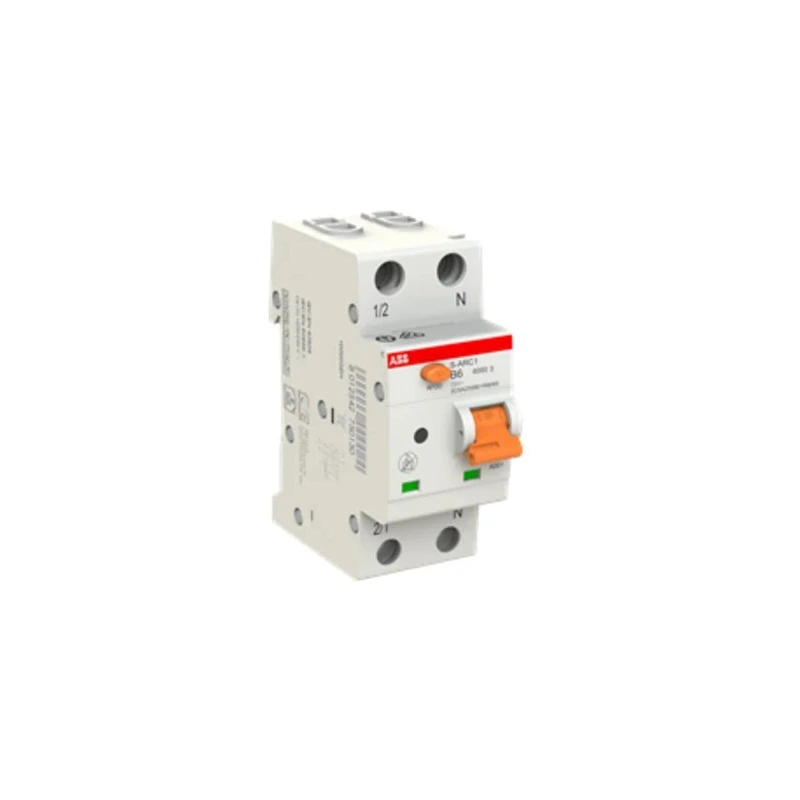

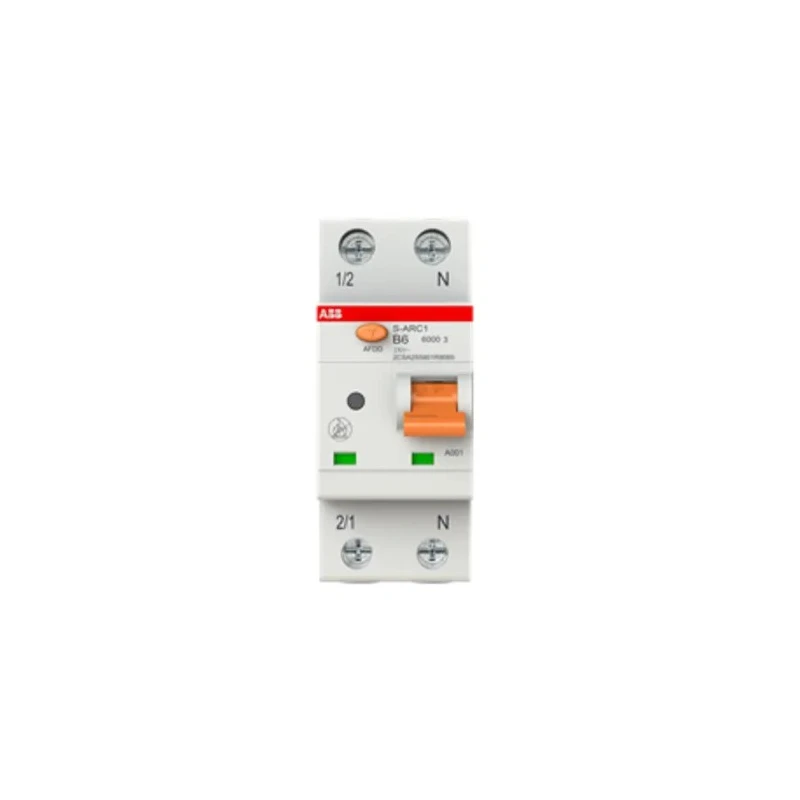

ABB Miniature Circuit Breaker, 1-Pole, 6A, Type B, 240V AC, 6 kA Breaking Capacity ARC1

Free Delivery in India | Lowest Global Shipping Charges

ABB Miniature Circuit Breaker, 1-Pole, 6A, Type B, 240V AC, 6 kA Breaking Capacity ARC1



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	S-ARC1
Brand	ABB
Height	85mm
Model	ARC1
Depth	69mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	6A
Series	S-ARC1
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 62606
Rated AC Voltage	240V ac
Tripping Characteristics	Type B
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch

Key Features

Designed for residential and light commercial electrical systems.
Thermal magnetic tripping mechanism provides effective protection.
Breaking capacity of 6 kA ensures robustness during faults.
DIN rail mount type allows easy installation and integration.
Screw terminal type guarantees secure and stable connections.
Compact dimensions with 35mm width and 85mm height optimize space usage.
Toggle switch reset actuator enables user-friendly operation.
IP20 and IP40 ratings provide basic protection against ingress.

Product Description

ABB ARC1 Miniature Circuit Breaker, Model ARC1, is a 1-pole circuit breaker rated at 6 amperes, designed for 240V AC electrical systems. This Type B breaker incorporates a thermal magnetic tripping mechanism that ensures reliable protection against short circuits and overloads, making it suitable for residential, commercial, and industrial electrical installations.

With a breaking capacity of 6 kA, this breaker can safely interrupt fault currents at maximum rated voltage, safeguarding electrical components and wiring from damage. The device is compact, measuring 35mm in width, 85mm in height, and 69mm in depth, allowing for efficient use in space-constrained installations.

The breaker is designed for DIN rail mounting, enabling easy and organized integration within consumer units or distribution boards. It features screw-type terminals to provide secure and stable electrical connections. The toggle switch reset actuator simplifies operation, allowing quick and intuitive resetting after trips.

The ABB ARC1 series complies with IEC/EN 60898-1 and IEC/EN 62606 standards, ensuring quality and safety. The product has IP20 and IP40 ingress protection ratings, suitable for typical indoor electrical applications.

Effective short circuit and overload protection with Type B tripping characteristic. 6 kA breaking capacity provides robust fault current interruption. Space-saving compact design ideal for residential and industrial automation use.

Screw terminals and toggle switch for ease of installation and operation. DIN rail mount for convenient electrical panel integration. Meets international standards for safety and performance. IP20 and IP40 rated for protection against ingress in typical environments.

This circuit breaker is ideal for protecting lighting circuits, small appliances, and equipment in residential and industrial automation settings. Its reliable performance helps maintain electrical safety and compliance with regulatory requirements.

Explore the full range of ABB electrical products and circuit breakers at EnvMart for comprehensive electrical protection solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ABB Miniature Circuit Breaker has a breaking capacity of 6 kA, allowing it to safely interrupt fault currents at the maximum rated voltage.

This circuit breaker is rated for 240V AC electrical systems, making it suitable for various residential and light commercial applications.

The dimensions of this model are 35mm in width, 85mm in height, and 69mm in depth, which allows for efficient use in space-constrained installations.

It features a thermal magnetic tripping mechanism, which provides effective protection against short circuits and overloads.

The ABB Miniature Circuit Breaker is designed for DIN rail mounting, facilitating easy and organized integration within consumer units or distribution boards.

It uses screw-type terminals, ensuring secure and stable electrical connections during operation.

This model has IP20 and IP40 ingress protection ratings, providing basic protection against ingress in typical indoor environments.

The tripping characteristics of this unit are Type B, which are effective for protecting lighting circuits and small appliances.

It complies with IEC/EN 60898-1 and IEC/EN 62606 standards, ensuring quality and safety in its operation.

The current rating for this model is 6A, making it suitable for a variety of electrical applications.

It is ideal for protecting lighting circuits, small appliances, and equipment in residential and industrial automation settings.

This model features a toggle switch reset actuator, allowing for quick and intuitive resetting after trips.
