4D Systems 4.3 in Resistive Touch Screen Starter Kit with DIABLO16 for gen4 Range of Modules SK-gen4-43DT

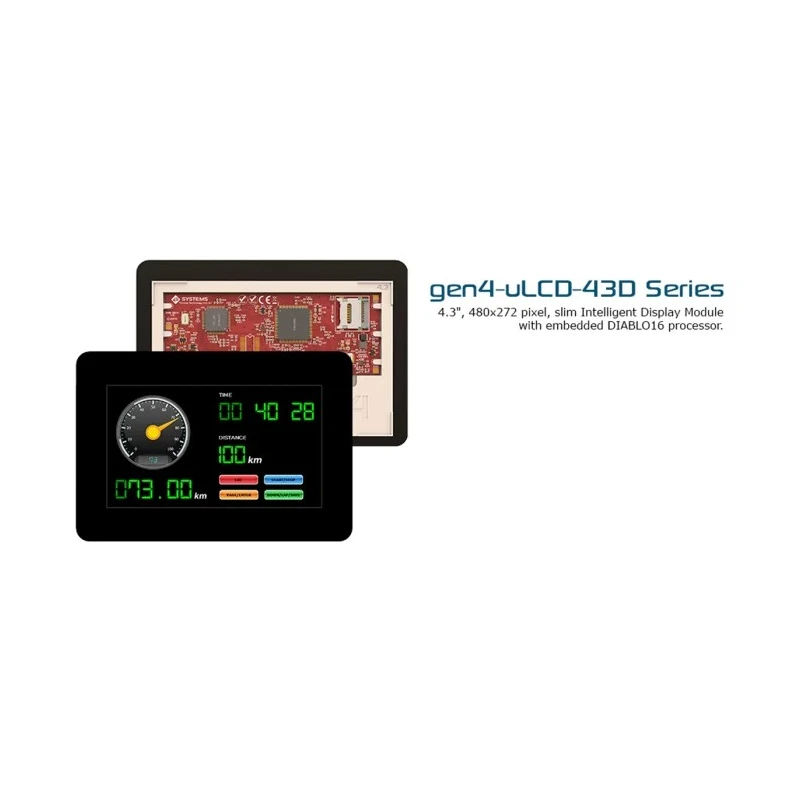

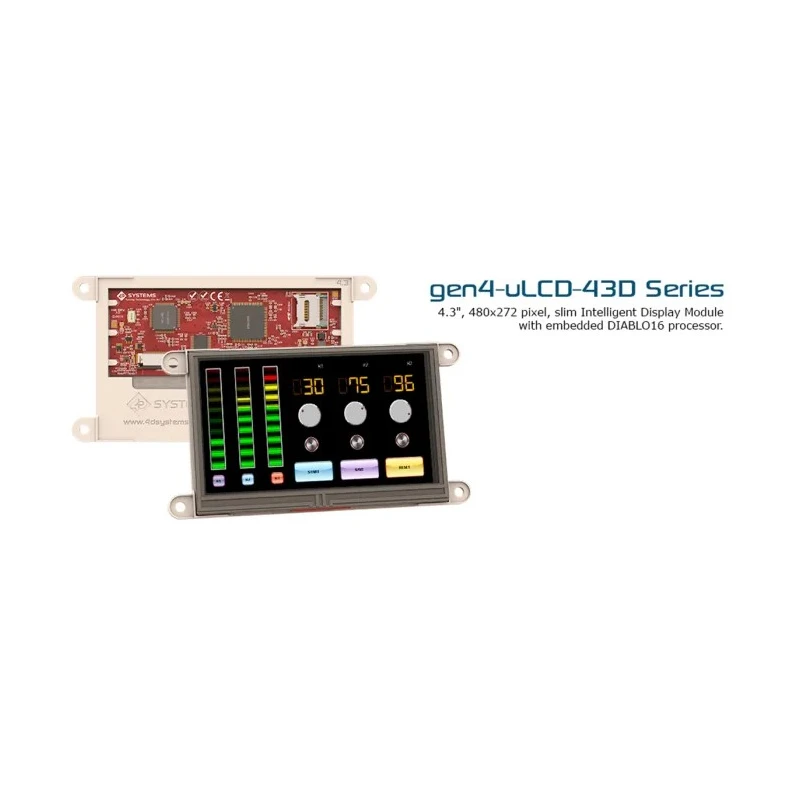

4D Systems SK-gen4-43DT is a 4.3 in resistive touch screen starter kit featuring the DIABLO16 graphics processor designed for the gen4 range of display modules. This integrated colour TFT LCD module provides high-quality 480 x 272 resolution images in 65K RGB true-to-life colours, suitable for embedded and development applications.

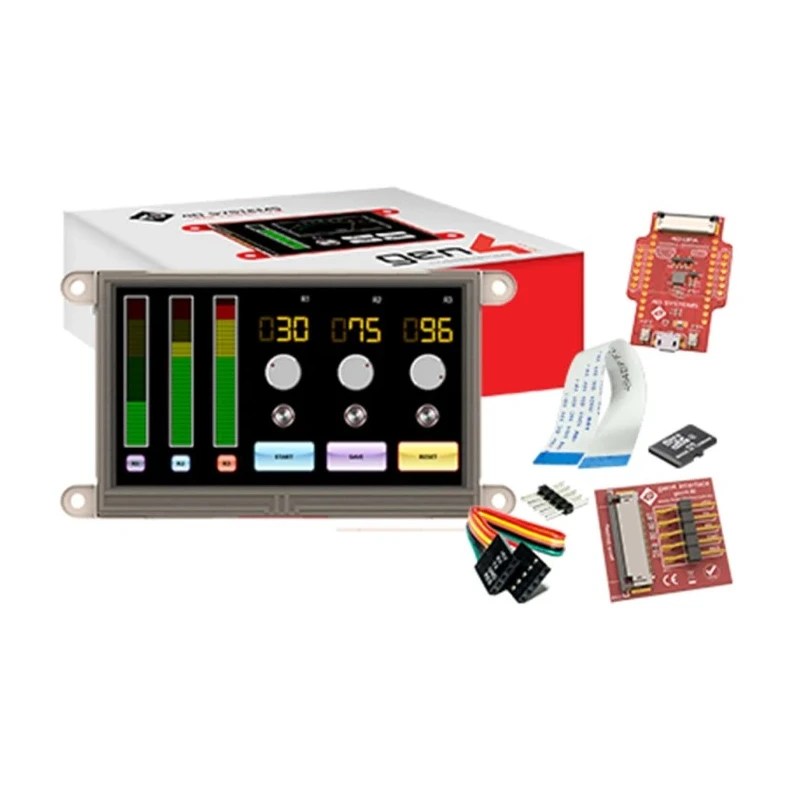

The starter kit includes the Gen4 integrated display module, a gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), a 4GB micro-SD card, a 5-way cable for easy connections to breadboards or hosts, and a 30-way 150mm FFC cable for various accessory connectivity options.

It supports 16 general-purpose input/output pins, 4 of which are configurable analog inputs, and offers versatile communication interfaces including PWM, TTL serial, I2C, SPI, pulse output, and quadrature input functionalities. The system memory contains 32kb of SRAM for user applications.

Audio capabilities are provided via PWM audio pin driven by playback of WAV files from the micro-SD card for external amplifiers. The on-board latch type micro-SD card connector enables multimedia storage and data logging.

Designed with compact dimensions of 127.60 x 69.30 x 7.80 mm and a viewing area of 95.04 x 53.86 mm, this display module operates on a 5.0V DC power supply and offers a brightness of 400 cd/m² making it suitable for various industrial, embedded, educational, and prototyping applications, including Raspberry Pi integration.

The SK-gen4-43DT device is compliant with CE, RoHS, and REACH standards and is manufactured in Australia. It is an ideal solution for embedded applications requiring an advanced touch display with broad connectivity and development support.

Includes 16 general-purpose I/O pins with analog inputs and multiple communication channels. 32kb SRAM memory for program and data storage. High resolution 480 x 272 full-colour TFT display with 65K RGB colours. PWM audio output for WAV file playback from micro-SD card.

On-board micro-SD card slot for media storage and data logging. Multiple configurable SPI channels including dedicated SD card SPI. Compact size and robust design with 5V DC supply and 400 cd/m² brightness. Compliant with CE, RoHS, and REACH certifications.
