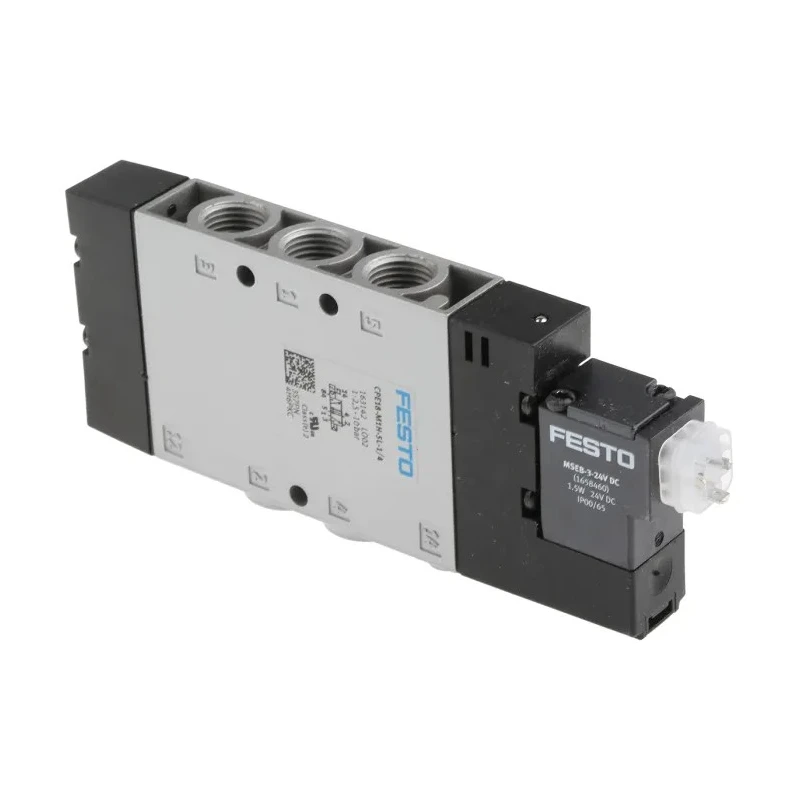

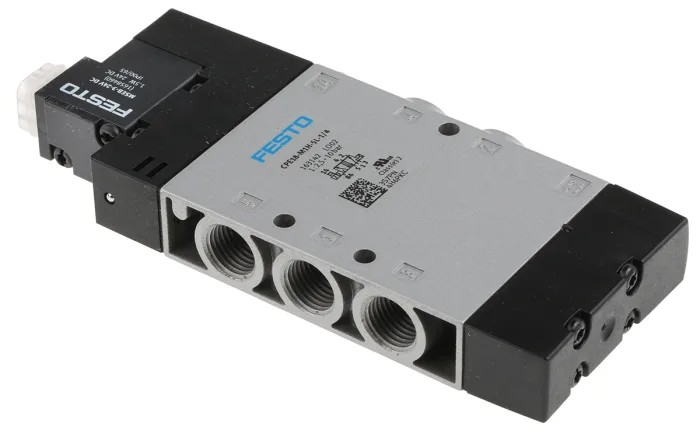

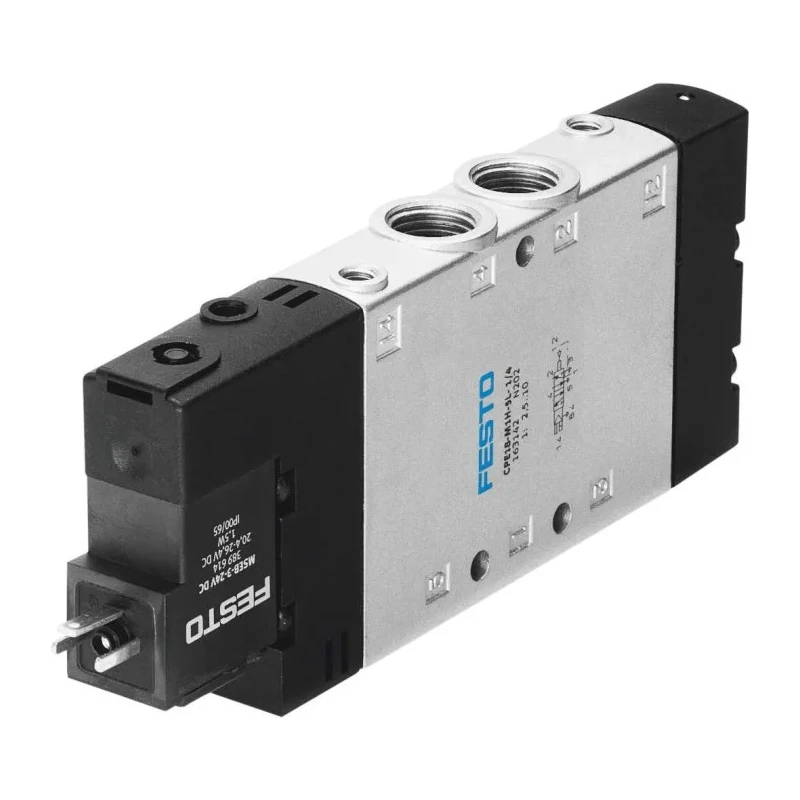

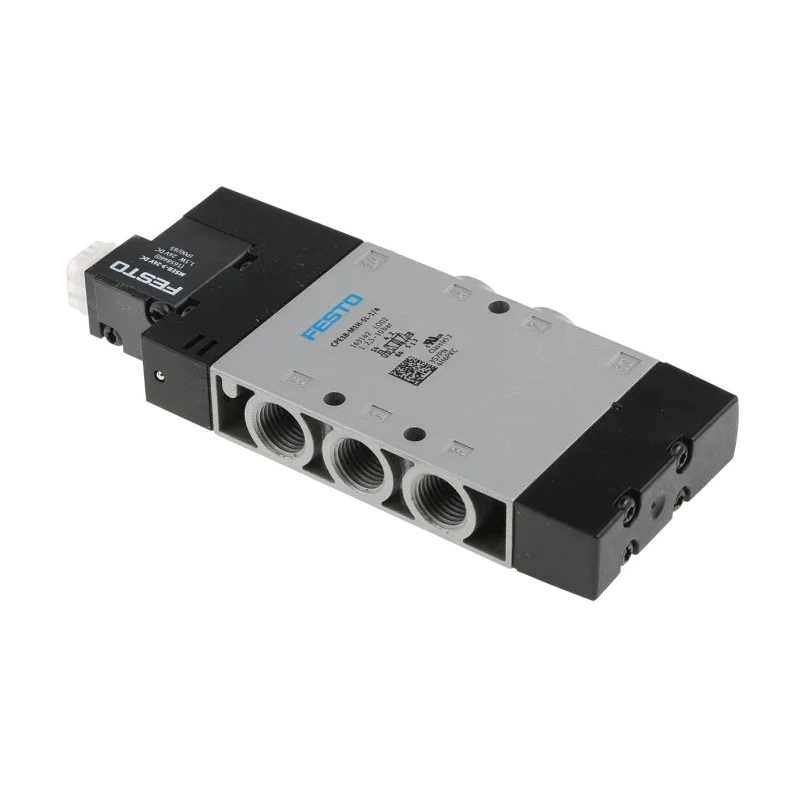

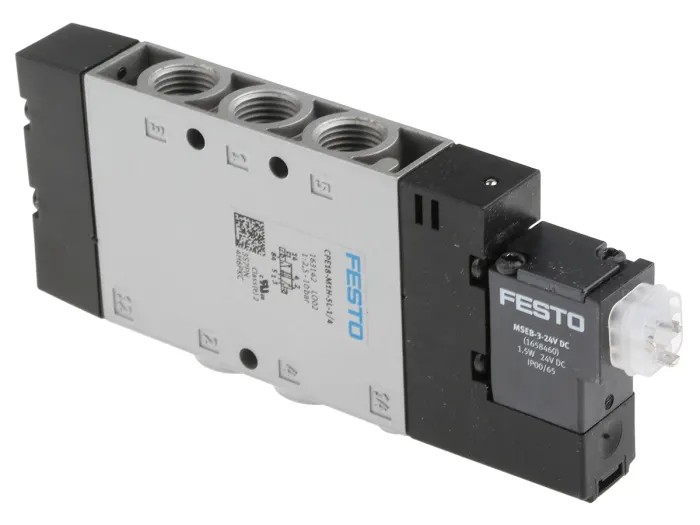

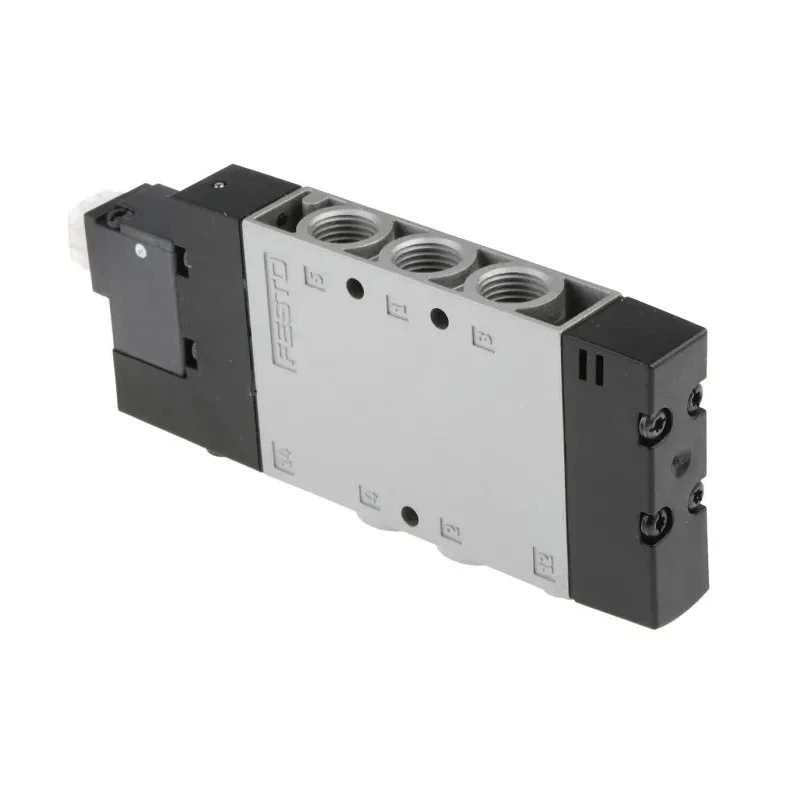

Festo Solenoid Pilot Valve Electric G Series CPE18-M1H-5L-1/4 24V DC 1.5W Aluminium Body 18mm Width Germany

Free Delivery in India | Lowest Global Shipping Charges

Festo Solenoid Pilot Valve Electric G Series CPE18-M1H-5L-1/4 24V DC 1.5W Aluminium Body 18mm Width Germany

Name: Festo Solenoid Pilot Valve Electric G Series CPE18-M1H-5L-1/4 24V DC 1.5W Aluminium Body 18mm Width Germany
Brand: FESTO
SKU: 240730
Price: 21725.09 INR
Availability: InStock



Category Pneumatic Solenoid Valves Brand FESTO Condition New

Specifications

Country of Origin	Germany
Voltage	24V dc
Brand	Festo
Body Material	Aluminium
Maximum Operating Pressure	10 bar
Model	CPE18-M1H-5L-1/4
Width	18mm
Mount Type	Through Hole
Series	CPE
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/4 in
Port Type	Push-in, Threaded
Port Size	1/4 in
Minimum Operating Temperature	-5°C
Actuation Type	Electric
Maximum Flow Rate	1500L/min
Standards/Approvals	RoHS, c UL US
Connection Thread Standard	G
Minimum Pilot Pressure	0.9bar
Valve Function	5/2
Port Gender	Female
RS PRO Pneumatic Solenoid Valve - 5/2 Pilot 24VRS Stock No.	235-1246Brand: RS PRO
Festo Solenoid Valve - 5/2 Solenoid G VUVG Series 24V dcBrand	Festo

Key Features

Compact unit with 18mm width suitable for tight spaces.
Operates at 24V DC with low power consumption of 1.5W.
Aluminium die-cast body ensures durability and corrosion resistance.
Supports maximum operating pressure up to 10 bar for demanding applications.
5/2 valve function with five ports and 1/4 inch port size.
Operates reliably between -5°C and 50°C ambient temperatures.
Push-in and threaded G connection type for easy installation.
Nitrile rubber seals prevent air leakage ensuring optimal performance.

Product Description

Festo CPE18-M1H-5L-1/4 solenoid pilot valve is an electric actuation valve designed for pneumatic systems needing reliable and precise airflow control. Operating at 24V DC and consuming just 1.5W, this valve provides high efficiency combined with a compact 18mm aluminum body that resists corrosion and physical stress.

Its 5/2 port configuration with a 1/4 inch port size supports a maximum flow rate of 1500L/min and operating pressures up to 10 bar, making it a versatile choice for various industrial and manufacturing environments.

Constructed with push-in and G-threaded connections, installation is straightforward and compatible with standard pneumatic piping. The valve performs in temperature ranges from -5°C up to 50°C and incorporates nitrile rubber seals that minimize air leakage and protect against contaminants.

Featuring fast switching times of 18ms off and 28ms on, it enhances productivity and process control. Its 100% duty cycle means it can handle continuous operation in high-demand industrial settings without overheating or failure.

Compact 18mm width for space-saving valve installation. Low power 1.5W consumption for energy efficiency. Corrosion-resistant aluminum die-cast body for durability. Operating pressure of up to 10 bar for robust pneumatic control.

Push-in and G thread connections for installation flexibility. Wide operating temperature range from -5°C to 50°C. Fast switching times promote process efficiency. 100% duty cycle for continuous industrial application.

This solenoid pilot valve is ideal for use in bottling plants, automotive production lines, HVAC systems, and manufacturing equipment. Its design complies with RoHS and cUL US safety standards, emphasizing reliable operation in regulated industrial environments.

Manufactured in Germany by Festo, this valve represents quality engineering suitable for demanding pneumatic control tasks. Explore more Festo pneumatic components and valves on EnvMart for comprehensive industrial automation solutions.
