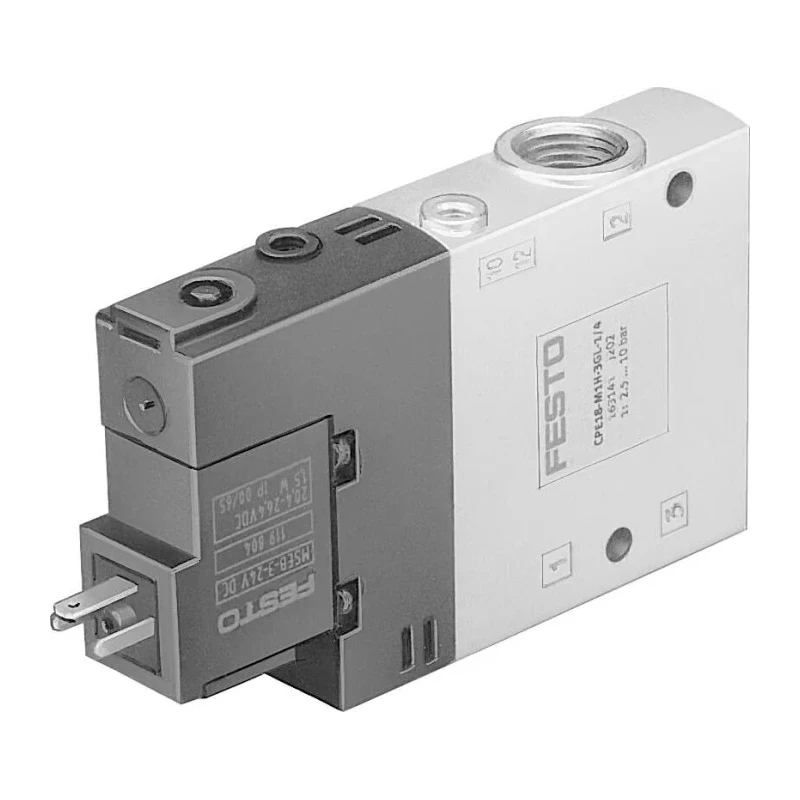

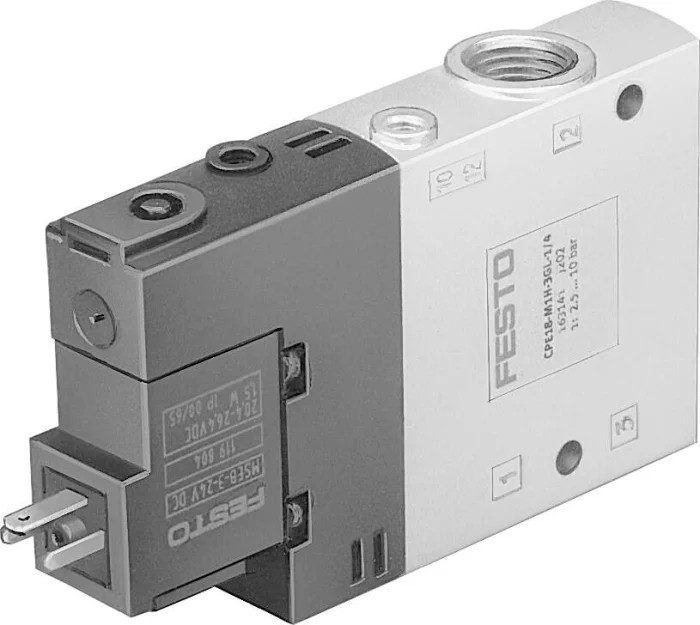

Festo Solenoid Pilot Valve Electric G CPE Series 24V dc, 10 bar Max Operating Pressure, 1500L/min Max Flow CPE18-M1H-3GL-1/4

Festo CPE18-M1H-3GL-1/4 solenoid pilot valve is engineered for precise pneumatic control in industrial, manufacturing, HVAC, and automation applications. Operated electrically at 24V dc, it offers reliable actuation with low power consumption of just 1.5 watts.

The valve has a 3/2 function, meaning it has three ports: one supply, one output, and one exhaust, ideal for driving single-acting cylinders with smooth airflow control. Constructed with a die-cast aluminium body, this valve ensures corrosion resistance and robust impact durability for long service life.

It supports a maximum operating pressure of 10 bar, with a pressure range starting from 0.9 bar for pilot pressure. Performance-wise, it accommodates a maximum flow rate of up to 1500 L/min, enabling efficient pneumatic system operation in a wide range of applications.

The compact design with just 18 mm width facilitates installation in tight control panels or machinery. The valve connection is standardized with G1/4 threaded ports combined with push-in fittings for flexible and secure pneumatic tubing setup. The through-hole mounting style allows installation in any orientation to suit your system layout requirements.

Designed to function within an operating temperature range of -5°C to +50°C, this valve is well-suited for use in food and beverage processing, medical and dental equipment, and HVAC system control. It meets relevant industry standards including cUL US and RoHS compliance for safety and environmental considerations.

This solenoid pilot valve features a durable aluminium body construction that withstands demanding industrial environments. Its 3-port, 3/2 valve configuration enables effective control of single-acting cylinders or pneumatic actuators.

Energy-efficient 1.5 W power consumption minimizes operational costs. Compact 18mm width design allows easy integration without occupying excess space. Wide operating temperature range from -5°C to 50°C ensures reliable performance in varied conditions.

Push-in and G1/4 threaded connections provide installation versatility. Compatible with pilot pressures between 0.9 bar and 10 bar for extensive application range. Maximum flow capacity of 1500 L/min supports high flow pneumatic requirements.

Choose this Festo solenoid pilot valve to achieve precise, reliable pneumatic control in your processes. Explore EnvMart categories for more pneumatic valves and industrial automation products.
