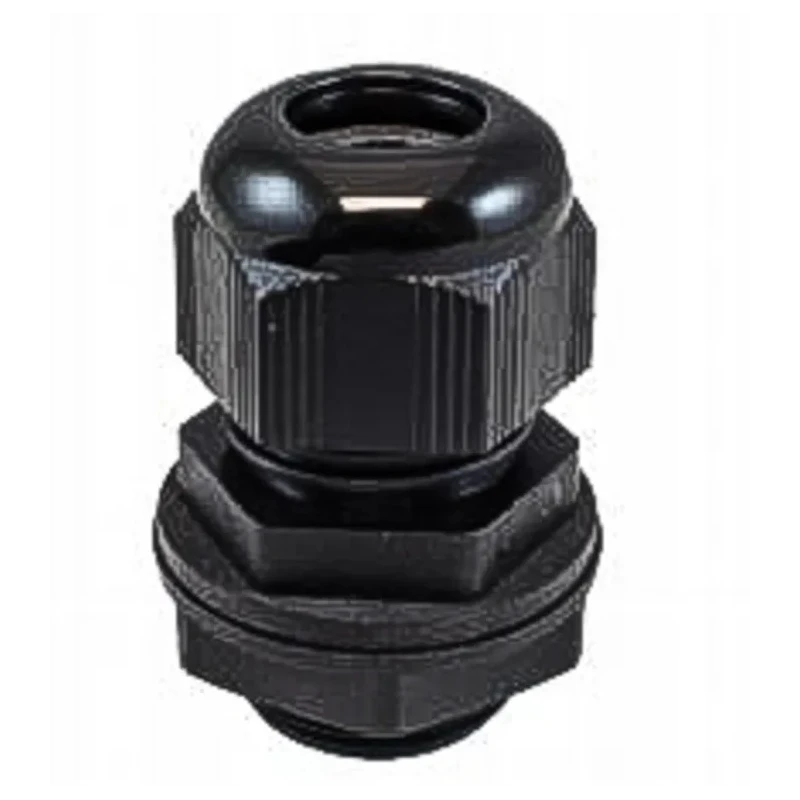

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland PG7 Thread, 3 mm to 6.5 mm Diameter, IP66 PPC7 BK080
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alpha Wire |
| Material | Polyamide 6 |
| Colour | Black |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PPC7 BK080 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | PG7 |
| Minimum Operating Temperature | -30°C |
| Thread Length | 8 mm |
| Clamping Range | 3 - 6.5 mm |
| Thread Diameter | 12.5 mm |
| Standards/Approvals | CSA, UL |
| Maximum Cable Diameter | 6.5mm |
| Minimum Cable Diameter | 3mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from durable black Polyamide 6 for robust performance.
- Suitable for operating temperatures between -30°C to 150°C with intermittent spikes.
- Features an 8 mm thread length and 12.5 mm thread diameter for secure fittings.
- Includes a locknut and chloroprene rubber O-ring seal for enhanced strain relief.
- Rated for IP66 and IP68 protection levels, ensuring resistance to dust, water immersion up to 5 bar for 30 minutes.
- Certified to CSA and UL standards for safety and flammability (UL94 V2 rating).
- Designed for use in telecommunications, control, instrumentation, data cables, and power systems.
- Resistant to dirt, dust, and sand, ideal for harsh environmental conditions.
Product Description
Alpha Wire PPC7 BK080 Cable Gland from the FIT Wire Management Series is a high-quality black cable gland manufactured using Polyamide 6 material. This cable gland supports a clamping range of 3 mm to 6.5 mm and is threaded with PG7 specifications featuring an 8 mm thread length and 12.5 mm thread diameter. It includes a locknut and a chloroprene rubber O-ring to provide excellent strain relief and sealing under demanding conditions.
The cable gland is rated IP66 and IP68, granting it protection against dust ingress and the ability to withstand water immersion up to 5 bar pressure for 30 minutes. Its temperature range spans from -30°C minimum operating temperature to 150°C maximum operating temperature under intermittent conditions, making it suitable for a wide array of industrial applications.
The V2 flammability rating per UL94 ensures that the plastic material extinguishes flame quickly, enhancing safety in electrical installations. The gland conforms to CSA and UL standards, attesting to its reliability and quality. It is ideal for use in telecommunications, control and instrumentation wiring, data cabling, and electrical power applications, providing robustness against environmental factors such as dust, dirt, and sand.
This cable gland helps reinforce cable termination points by providing secure strain relief, thereby protecting your infrastructure from wear and tear. The product finds suitability in industrial automation, manufacturing, construction, HVAC, and water treatment sectors, where reliability and protection of cable runs are critical.
Constructed from high-quality Polyamide 6 material for durability. Clamping range adapts to cables between 3 mm and 6.5 mm diameter. Threaded PG7 for standard industrial fitting compatibility. Locknut and rubber O-ring supplied for effective sealing and strain relief.
Achieves IP66, IP68 ingress protection ratings against dust and water. Certified to CSA and UL standards, with UL94 V2 flammability rating. Operates reliably over a temperature range of -30°C to 150°C. Designed for versatile industrial and commercial cable management applications.
Explore the comprehensive range of environment-resistant Cable Glands at EnvMart, secured by trusted brands like Alpha Wire.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this model is from 3 mm to 6.5 mm in diameter.
This cable gland is rated for IP66 and IP68, providing protection against dust ingress and water immersion up to 5 bar for 30 minutes.
The maximum operating temperature for this unit is 150°C under intermittent conditions.
It is constructed from black Polyamide 6, which offers durability and resistance to environmental factors.
The thread size is PG7, with a thread length of 8 mm and a thread diameter of 12.5 mm.
It is certified to CSA and UL standards, ensuring safety and flammability with a UL94 V2 rating.
The minimum operating temperature is -30°C.
Yes, it includes a locknut and a chloroprene rubber O-ring seal for enhanced strain relief and sealing.
This cable gland is suitable for telecommunications, control, instrumentation, data cables, and electrical power applications.
It is resistant to dirt, dust, and sand, making it suitable for harsh environmental conditions.
The flammability rating of V2 according to UL94 indicates that the material extinguishes flame quickly, enhancing safety in electrical installations.
The PPC7 BK080 cable gland is manufactured in India.
