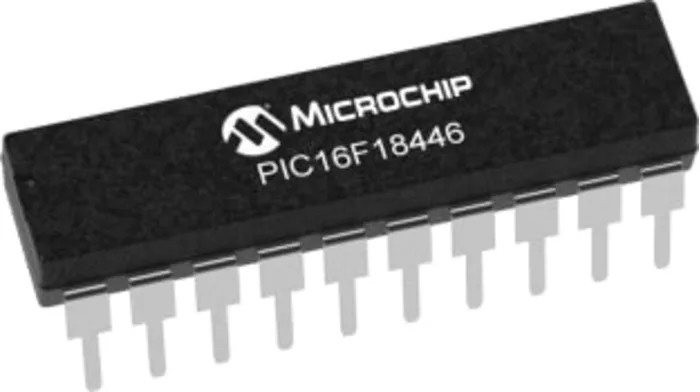

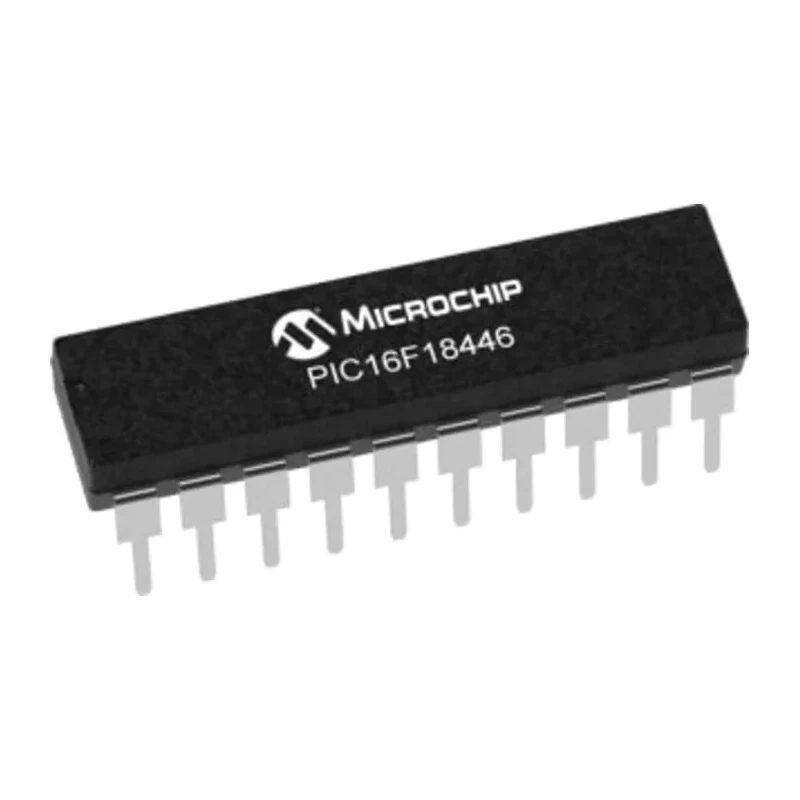

Microchip 8-bit PIC Microcontroller 28kB FLASH 32 MHz 20-Pin DIP PIC16F18446-I/P

Microchip PIC16F18446-I/P is an 8-bit PIC microcontroller designed for versatile embedded applications, featuring a 28kB FLASH program memory and operating at a maximum clock frequency of 32 MHz. Housed in a 20-pin DIP through-hole package, this device offers robust performance and ease of integration in industrial and commercial electronic circuits.

This microcontroller family incorporates an enhanced mid-range core with 48 instructions and 16 stack levels, facilitating efficient code execution. It supports multiple communication interfaces including EUSART, I2C, and SPI, enabling connectivity with various peripherals and sensors.

The device includes 17 analog-to-digital converters (ADC) with 10-bit resolution and a 5-bit digital-to-analog converter (DAC), enhancing its capability to interact with analog signals. Additional features include a Complementary Waveform Generator (CWG), Numerically Controlled Oscillator (NCO), hardware limit timer, signal measurement timer, and multiple configurable logic controllers (CLCs), allowing complex control and signal processing tasks.

Operating voltage ranges from 1.8V to 5.5V with a maximum power dissipation of 800mW. The microcontroller maintains stable operation across a broad temperature range from -40°C to 85°C, suitable for harsh industrial environments. Its compact dimensions (26.924mm length, 7.11mm width, and 0.19in height) facilitate space-saving designs.

This product finds applications in embedded system development, industrial automation, consumer electronics, and devices requiring ultra-low power consumption with eXtreme Low-Power (XLP) technology. Features such as Peripheral Pin Select (PPS), windowed watchdog timer, and enhanced power-on/off reset improve system reliability and design flexibility.

Set includes 1 Microchip PIC16F18446-I/P 8-bit PIC Microcontroller in 20-Pin DIP packaging. Utilizes an 8-bit PIC device core with RISC architecture for efficient instruction execution. Features 28kB FLASH program memory and 2048B RAM memory.

Maximum clock frequency of 32 MHz enabling fast processing. Supports EUSART, I2C, SPI interfaces for multiple communications. Includes 17 channels of 10-bit ADC and 1 x 5-bit DAC for analog input/output. Wide supply voltage range from 1.8V to 5.5V with 800mW maximum power dissipation.

Advanced timer and control peripherals for versatile applications. Robust operation from -40°C to 85°C for industrial environments. Compact 20-pin DIP package suitable for through-hole mounting. Ideal for embedded, industrial, consumer, and low-power applications.
