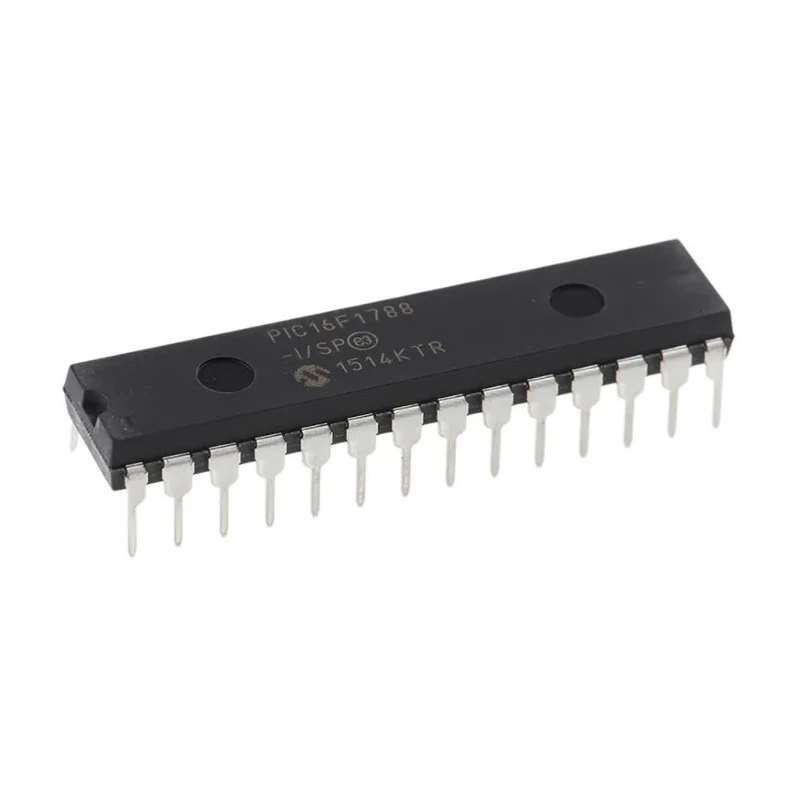

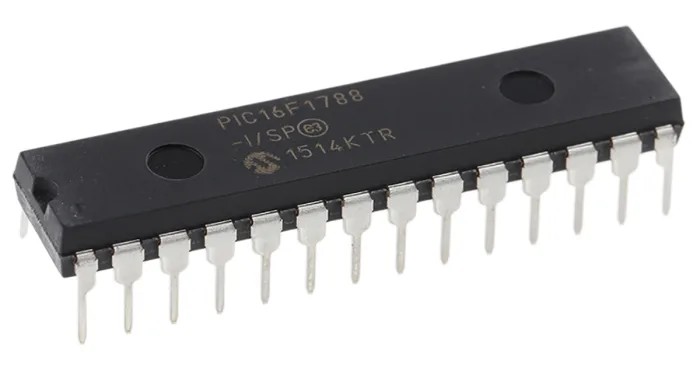

Microchip 8-bit PIC16F1788-I/SP Microcontroller 32 MHz FLASH 28-Pin SPDIP

Microchip PIC16F1788-I/SP is an 8-bit microcontroller built on Microchip's enhanced mid-range PIC architecture. It operates at a maximum clock speed of 32 MHz and features 28 kB of FLASH program memory alongside 2 kB of RAM, providing a robust platform for embedded systems. The 28-pin SPDIP package with through-hole mount makes it compatible with a variety of PCB designs and prototyping setups.

This microcontroller provides 25 programmable I/O pins and incorporates multiple peripherals including three Capture/Compare/PWM modules, two programmable switch mode controllers, and integrated DAC and ADC modules suitable for analog and digital signal processing. It features an internal oscillator with ±1% accuracy and supports RS232 interface communication.

Designed for rigorous industrial and commercial applications, the PIC16F1788 supports an extended operating temperature range from -40°C to 85°C and operates within a voltage supply range of 2 V to 6 V, making it suitable for varied environmental conditions. Additional built-in features such as power-on reset, brown-out reset, watchdog timer, and in-circuit debugging ensure stable operation and ease of development.

The microcontroller includes 15 channels of 12-bit ADC (for PIC16F1789 variant) and 11 channels for PIC16F1788, extensive timers, and enhanced communications interfaces including SPI, I2C, and EUSART protocols. These features equip designers with the flexibility required for diverse embedded control applications in industrial automation, consumer electronics, and automotive domains.

32 MHz maximum CPU clock frequency delivering up to 8 MIPS. 28 kB FLASH program memory for versatile application coding. 28-pin SPDIP package with through-hole mounting. 2 kB RAM to support program execution. 25 programmable I/O pins for flexible interfacing.

Built-in 15 channel 12-bit ADC for analogue signal conversion. Enhanced mid-range PIC architecture with 49 instruction set. Wide operating voltage range from 2 V to 6 V for diverse environments. Operating temperature range from -40°C to 85°C for industrial applications.

This microcontroller is widely applicable in industrial automation, embedded control systems, and electronic design requiring reliable, scalable, and versatile microcontroller solutions. Browse EnvMart's Microcontroller category for diverse PIC16F models and accessories suitable for your electronic design projects.
