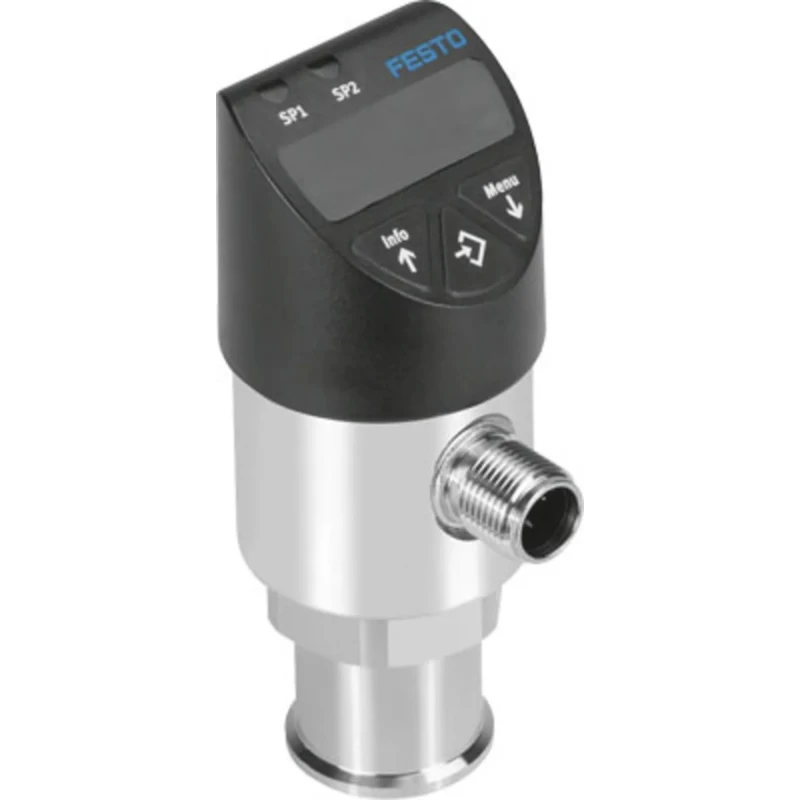

Festo Pressure Sensor IP67, IP65 Rated Differential Vacuum Relative Pressure G1/4 Thread 35V DC 10 bar SPAW-B11R-G14F-2P-M12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 35V dc |
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Model | SPAW-B11R-G14F-2P-M12 |
| IP Rating | IP67, IP65 |
| Mount Type | Screw |
| Maximum Operating Temperature | 80°C |
| Pressure Type | Differential, Vacuum, Relative Pressure |
| Switch output | PNP |
| Port Size | G 1/4 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Connection Thread Standard | R (PT), GPT, NPT |
| Minimum Operating Pressure | -1bar |
| Suitable Medias | Air, Gas, Liquid |
Key Features
- Operates on 35V DC supply voltage for reliable performance.
- Measures differential, vacuum, and relative pressures from -1 bar to 10 bar.
- Equipped with G1/4 top pneumatic connection with internal thread for secure mounting.
- Features a 4-digit, 320° rotatable LED digital display for clear indication.
- Switching output includes 2 PNP type contacts, switchable NO/NC function.
- Robust design allows operating temperatures from 0°C to 80°C for versatile applications.
- Constructed with piezoresistive stainless steel measuring cell ensuring precise measurements ±1% FS accuracy.
- M12 A coded plug connector enables secure electrical connection.
Product Description
Festo SPAW-B11R-G14F-2P-M12 pressure sensor is an industrial-grade pneumatic sensor designed to measure media pressures accurately with a piezoresistive stainless steel measuring cell. Operating at a supply voltage of 35V DC, it offers a pressure measurement range from -1 bar (vacuum) up to 10 bar, suitable for various pneumatic and liquid media applications.
The sensor features a robust construction with IP67 and IP65 protection ratings, making it resistant to dust and splash water ingress, suitable for harsh environments. It integrates a G1/4 connection thread with internal threads for easy and secure pneumatic system installation.
A key usability feature is its 4-digit LED display that rotates 320° allowing clear numerical percentage pressure indication. The device includes switch output functionality with two PNP type output contacts that can be configured as normally open or normally closed, supporting flexible control integration.
Electrical connectivity is provided via an M12 A coded plug connector ensuring reliable connection and protection against tampering with the incorporated security code. The sensor supports continuous operation in ambient temperatures ranging from 0°C to 80°C, adapting to tough industrial environments.
Developed and manufactured in Germany, the SPAW-B11R-G14F-2P-M12 carries RoHS compliance ensuring environmental safety. Its ±1% full scale accuracy ensures high precision for critical pneumatic pressure monitoring systems.
Operates on 35V DC supply voltage for reliable performance. Measures differential, vacuum, and relative pressures from -1 bar to 10 bar. Equipped with G1/4 top pneumatic connection with internal thread for secure mounting.
Features a 4-digit, 320° rotatable LED digital display for clear indication. Switching output includes 2 PNP type contacts, switchable NO/NC function. Robust design allows operating temperatures from 0°C to 80°C for versatile applications.
Constructed with piezoresistive stainless steel measuring cell ensuring precise measurements ±1% FS accuracy. M12 A coded plug connector enables secure electrical connection. Designed and manufactured in Germany maintaining high quality standards.
Suitable for high pressure pneumatic systems and pressure monitoring of liquid media.
This pressure sensor is suitable for use in industrial automation, fluid power applications, pneumatic control systems, laboratory measurements, manufacturing quality control, and HVAC systems. Its rugged build and accurate sensing make it ideal for environments requiring dependable pressure monitoring.
Explore more pneumatic Pressure Sensors in our Industrial Tools & Equipment category at EnvMart for advanced automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures differential, vacuum, and relative pressures from -1 bar to 10 bar.
This model operates on a supply voltage of 35V DC.
It has IP67 and IP65 protection ratings, making it resistant to dust and splash water ingress.
The maximum operating temperature is 80°C.
It features a G1/4 top pneumatic connection with internal threads for secure mounting.
The sensor includes a switching output with two PNP type contacts, which can be configured as normally open or normally closed.
It has an accuracy of ±1% full scale.
It is suitable for measuring air, gas, and liquid media.
The minimum operating temperature is 0°C.
It is designed and manufactured in Germany.
It uses an M12 A coded plug connector for secure electrical connection.
It carries RoHS compliance, ensuring environmental safety.
