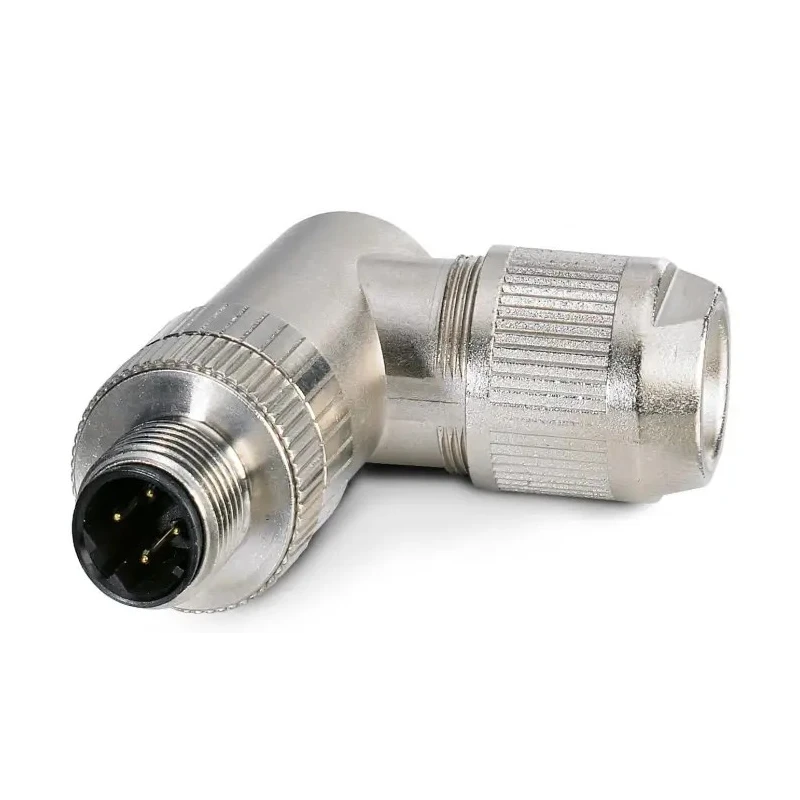

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Size, Plug Male, IP67 Rated, SACC Series 1554539

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Size, Plug Male, IP67 Rated, SACC Series 1554539

Name: Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Size, Plug Male, IP67 Rated, SACC Series 1554539
Brand: PHOENIX CONTACT
SKU: 240236
Price: 41 USD
Availability: InStock



Category Circular Connector Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	60V
Brand	Phoenix Contact
Orientation	Right Angle
Current	1.75A
Model	1554539
IP Rating	IP67
Mount Type	Cable
Housing Material	Zinc
Contact Material	Bronze
Series	SACC
Termination Type	IDC
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold over Nickel
Number of Contacts	4
Contact Gender	Male
Shell Size	M12
Mating Type	D Coded
Connector Size	M12
Plug/Socket	Plug
Coding	D

Key Features

This plug connector offers reliable signal transmission with gold-plated bronzed contacts.
Its die-cast zinc housing ensures durable corrosion resistance for industrial environments.
The connector supports up to 1.75A current at 60V operating voltage.
Right angle orientation and IDC termination make installation quick and flexible.
It complies with IEC standards designed for PROFINET Cat5 and Cat5e cabling.
Rated for operating temperatures from -40°C up to 85°C suitable for harsh conditions.
IP67 rating guarantees dust-tight sealing and protection against water immersion up to 1 meter depth.
Contacts are gold over nickel plated to optimize electrical flow and reliability.

Product Description

Phoenix Contact 1554539 Circular Connector is a male plug with 4 contacts and cable mount type designed for industrial circular connector applications. It features an M12 shell size with right angle orientation and D-coded mating type, supporting data transmission for Cat5 and Cat5e PROFINET systems at 60 volts and 1.75 amps current rating.

The connector's die-cast zinc housing provides enhanced durability and corrosion resistance to endure industrial environments. Its contact system uses bronze material plated with gold over nickel to ensure reliable electrical connectivity and minimize signal loss. The IDC termination technology enables ease of installation by allowing multiple wires to be terminated simultaneously without soldering or crimping.

The IP67 protection rating certifies that the connector is dust-tight and protected against temporary immersion in water up to 1 meter depth, making it suitable for demanding manufacturing, automation, and control network applications. It operates reliably in temperature ranges from -40°C to 85°C and meets IEC standards governing general-purpose telecommunication cabling systems.

This connector is ideal for factory automation and industrial control network tasks requiring secure and fast data connections. Flexible pin assignment allows for 45-degree rotation to the cable outlet for installation convenience.

Meets UL94-V0 flammability standard ensuring performance safety under fire conditions. Its compact M12 size and IEC compliance make it a versatile component for industrial electronic connector assemblies. Designed and manufactured in Germany, reflecting stringent quality control and reliability.

Choose the Phoenix Contact 1554539 for robust circular industrial connector solutions in manufacturing, water treatment, commercial automation, and factory control networking contexts.

Explore EnvMart’s complete range of industrial Circular Connectors and automation components for complementary equipment and accessories.
