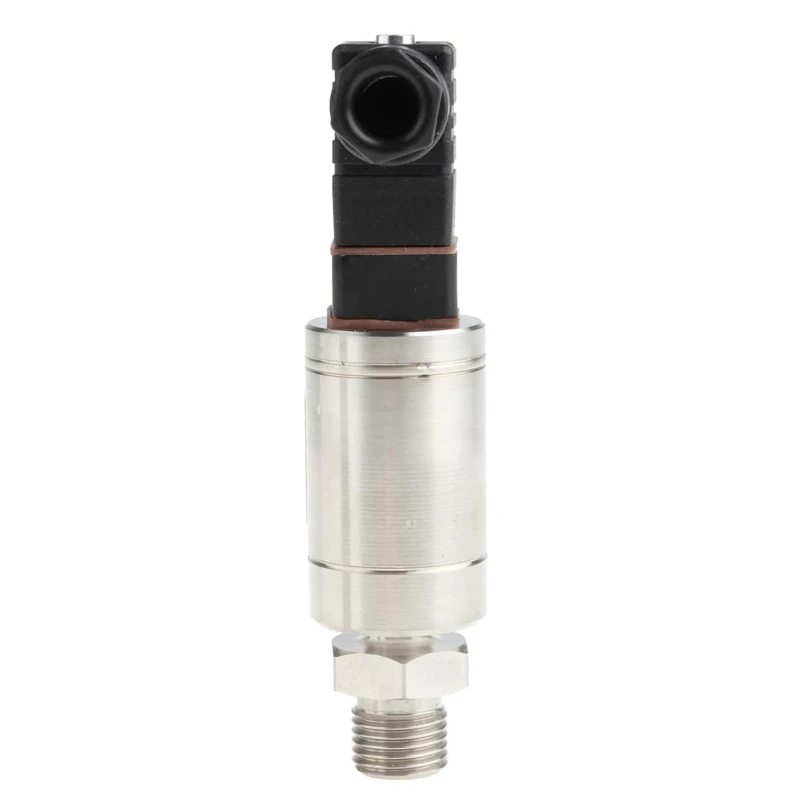

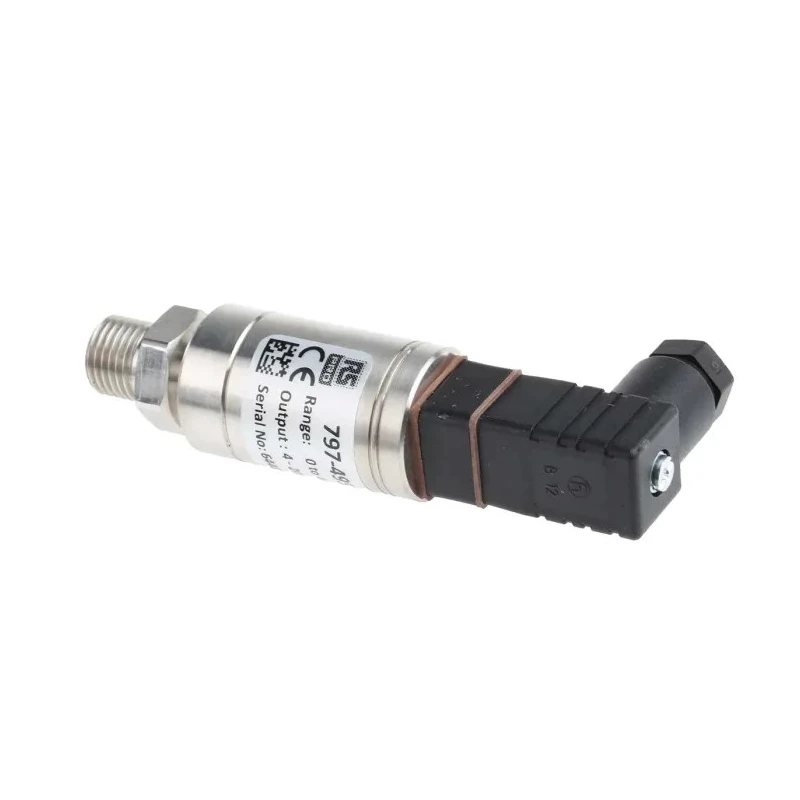

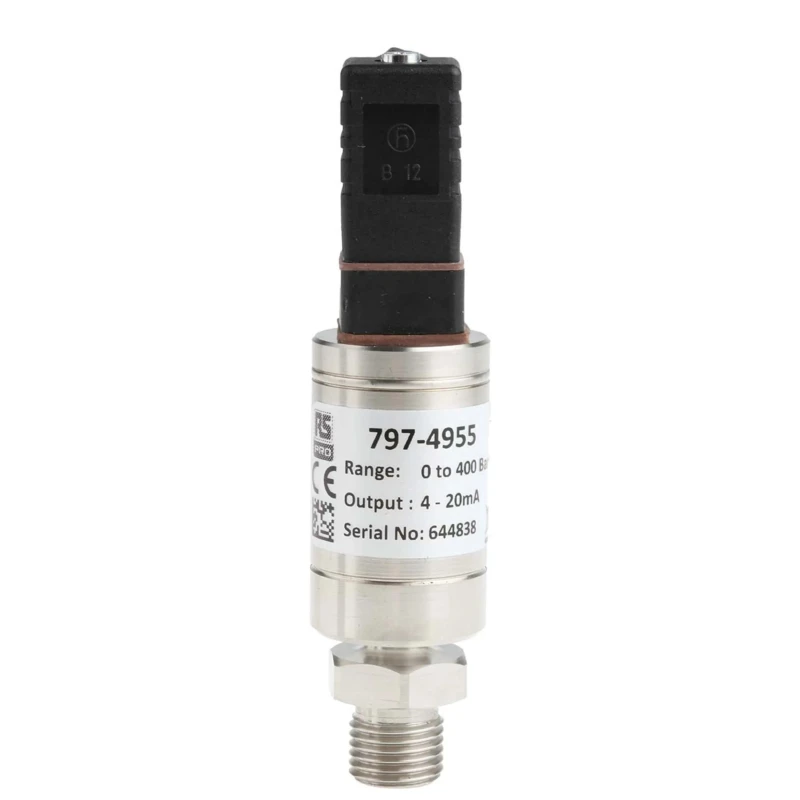

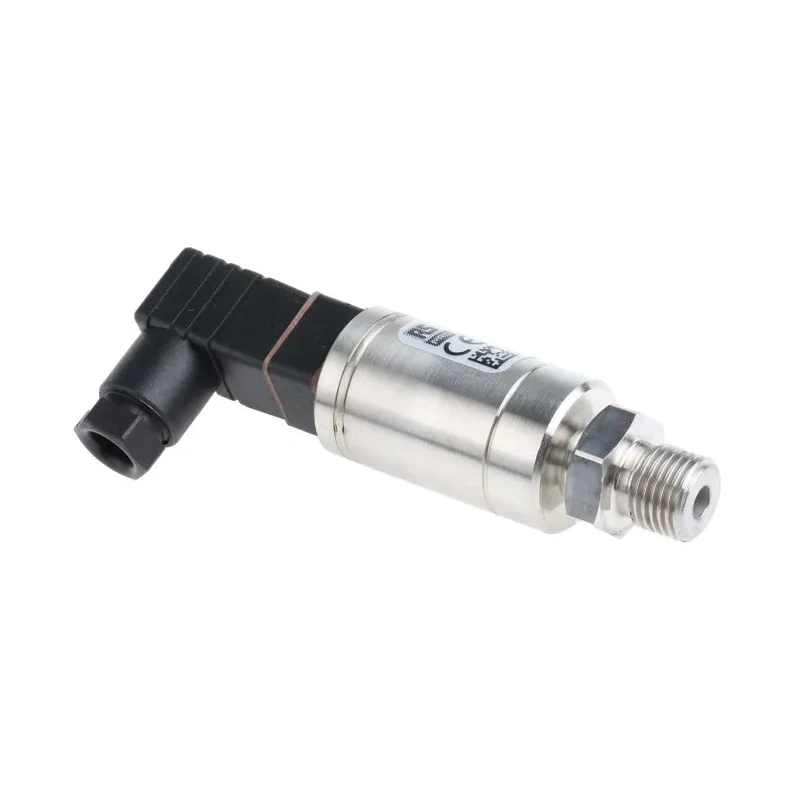

RS PRO Pressure Sensor 0 bar to 400 bar Current Output Gauge Reading Stainless Steel Housing 797-4955
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 797-4955 |
| IP Rating | IP65 |
| Mount Type | Threaded |
| Housing Material | Stainless Steel |
| Output type | Current |
| Series | RS PRO |
| Maximum Operating Temperature | 135°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | DIN |
| Standards/Approvals | CE EMC directive EN 61326-1:2013 |
| Maximum Pressure Measurement | 400bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 32V dc |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Gauge |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Water |
| Standards/Approvals CE EMC directive EN 61326-1 | 2013 |
| RS PRO Pressure Sensor, 0bar Min, 400bar Max, Analogue OutputBrand | RS PRO |
Key Features
- The sensor uses a piezo-resistive ceramic sensor for high accuracy and excellent media compatibility.
- Designed for measurement of air, gas, hydraulic fluids, liquids, and water.
- Features a threaded mount type with BSP 1/4 and M12 4-pin connector for easy installation.
- Offers high durability with stainless steel 316L housing and Viton O-ring seals.
- Operates reliably within -20°C to 135°C temperature range and meets IP65 ingress protection rating.
- Ensures long operational life exceeding 100 million cycles and insulation resistance over 50M Ohms at 50 Vdc.
- Compact, rugged design ideal for automation, process control, industrial measurement, and temperature testing facilities.
Product Description
RS PRO 797-4955 Pressure Sensor is a high-precision gauge pressure sensor with a current output signal, suitable for a wide range of industrial applications such as automation, process control, temperature testing, and industrial measurement. It accurately measures pressures from 0 bar minimum to 400 bar maximum.
This sensor utilizes a piezo-resistive thick film ceramic sensor encased in a compact and rugged stainless steel 316L housing, providing excellent media compatibility with air, gas, hydraulic fluids, liquids, and water. The device features a threaded mounting with BSP 1/4 connection and an M12 4-pin connector for secure installation.
The sensor is rated for operation between -20°C and 135°C and offers an IP65 rating for dust and water resistance, ensuring reliable performance in demanding environments. It boasts an operational life exceeding 100 million cycles and high insulation resistance above 50 M Ohms at 50 Vdc.
Certified to meet CE EMC directive EN 61326-1:2013 standards, this pressure sensor is designed to provide dependable and precise pressure readings essential for modern industrial processes.
The sensor incorporates a piezo-resistive ceramic sensor for accuracy and robust performance. Stainless steel 316L housing ensures durability and resistance to corrosive media. Threaded mounting and DIN terminal type facilitate easy installation.
Wide operating temperature range supports diverse industrial environments. IP65 rating protects against dust and splashing water. Compatible with measuring air, gas, hydraulic fluids, liquids, and water. Long lifecycle supports continuous industrial operation.
Compliant with relevant CE standards for safety and electromagnetic compatibility.
This RS PRO pressure sensor 797-4955 is manufactured in China and is ideal for industrial, laboratory, HVAC, and manufacturing sectors requiring accurate and reliable pressure measurement. Its compact size and robust construction make it suitable for integration into automated systems and control panels.
Discover more Pressure Sensors and related industrial measurement instruments in the EnvMart catalog for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure pressures from a minimum of 0 bar to a maximum of 400 bar.
It provides a current output signal for pressure readings.
The accuracy of this sensor is ±0.25%.
It is compatible with air, gas, hydraulic fluids, liquids, and water.
This sensor operates reliably within a temperature range of -20°C to 135°C.
The housing is made of stainless steel 316L, providing durability and resistance to corrosive media.
It features a threaded mount type with a BSP 1/4 connection for installation.
It has an IP65 rating, indicating protection against dust and splashing water.
The insulation resistance is over 50 M Ohms at 50 Vdc.
It complies with the CE EMC directive EN 61326-1:2013 standards.
The operational life of this sensor exceeds 100 million cycles.
It uses a DIN terminal type for connection.
