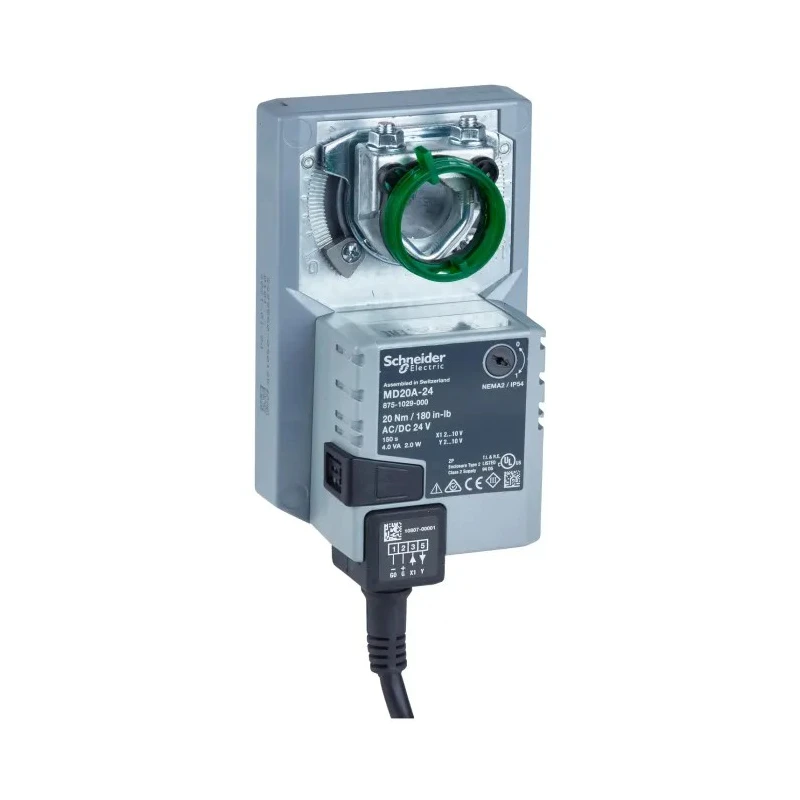

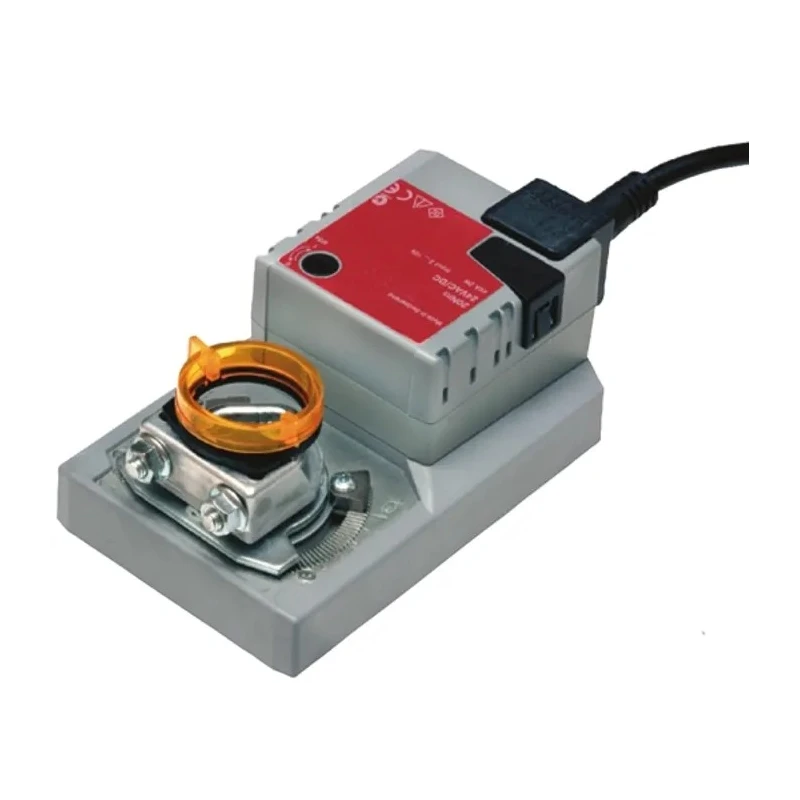

Schneider Electric 24V AC/DC Modulating Damper Actuator, 20 Nm Torque, IP54, 95° Rotation 8751029000
Specifications
| Country of Origin | Switzerland |
|---|---|
| Power Consumption | 2W |
| Brand | Schneider Electric |
| IP Rating | IP54 |
| Noise Level | 45dB |
| Control | Modulating 0 - 10 V |
| Series | BMS |
| Maximum Operating Temperature | 50°C |
| Control Type | Modulating |
| Motor Torque | 20Nm |
| Minimum Operating Temperature | -30°C |
| Running Time | 150s |
| Supply Voltage | 24V ac/dc |
| Standards/Approvals | RoHS, EN, ISO |
| Angle of Rotation | 95° |
| Maximum Damper Area | 4m² |
| Maximum Damper Spindle Size | 20mm |
| Minimum Damper Spindle Size | 10mm |
| Position feedback | 2 - 10 V |
Key Features
- Suitable for air control dampers up to approximately 4 square meters in area.
- Operates with a nominal voltage of 24V AC/DC for flexible power options.
- Equipped with 20 Nm motor torque to ensure effective damper movement.
- Features modulating control with a 0 - 10 V input signal and 2 - 10 V position feedback.
- Built to IP54 rating, offering protection against dust and water splashes.
- Operates quietly with a noise level of 45 dB, suitable for building services applications.
- Designed for a running time of 150 seconds with an angle of rotation of 95 degrees.
- Supports damper spindles sized between 10 mm and 20 mm diameter.
Product Description
Schneider Electric 8751029000 modulating damper actuator is engineered for precise air control damper operation in ventilation and air conditioning systems within building services installations. Powered by 24V AC/DC, this actuator delivers a motor torque of 20 Nm, suitable for dampers up to approximately 4 square meters in area.
The actuator features modulating control with a control voltage range of 0 to 10 V and provides position feedback from 2 to 10 V, allowing for exact damper positioning. Its operation is quiet at 45 dB, supporting comfort in HVAC environments.
With an IP54 rating, the actuator is protected against dust ingress and water splashes, making it suitable for a range of industrial and commercial HVAC applications. It supports damper spindles from 10 mm to 20 mm, rotating through a 95° angle within a running time of 150 seconds.
Designed to operate efficiently within a temperature range from -30°C to +50°C, this Damper Actuator is compliant with RoHS directives and meets EN and ISO standards. The actuator is ideal for industrial, commercial, and building services applications where modulating control of airflow is required.
Suitable for air control dampers up to approximately 4 square meters in area. Operates with a nominal voltage of 24V AC/DC for flexible power options. Equipped with 20 Nm motor torque to ensure effective damper movement.
Features modulating control with a 0 - 10 V input signal and 2 - 10 V position feedback. Built to IP54 rating, offering protection against dust and water splashes. Operates quietly with a noise level of 45 dB, suitable for building services applications.
Designed for a running time of 150 seconds with an angle of rotation of 95 degrees. Supports damper spindles sized between 10 mm and 20 mm diameter. Operates reliably in temperatures ranging from -30°C to 50°C. Manufactured in Switzerland adhering to RoHS, EN, and ISO standards.
Explore the wide range of Schneider Electric automation and HVAC solutions at EnvMart to enhance your industrial and commercial projects with trusted performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle air control dampers up to approximately 4 square meters in area.
It is equipped with a motor torque of 20 Nm, ensuring effective damper movement.
This unit operates with a nominal voltage of 24V AC/DC, providing flexible power options.
The actuator is designed for a rotation angle of 95 degrees.
It features modulating control with a 0 - 10 V input signal and provides position feedback from 2 to 10 V.
This model operates quietly with a noise level of 45 dB, suitable for building services applications.
The actuator is designed with a running time of 150 seconds for full rotation.
It supports damper spindles sized between 10 mm and 20 mm in diameter.
It operates reliably within a temperature range from -30°C to +50°C.
This unit is compliant with RoHS directives and meets EN and ISO standards.
It is manufactured in Switzerland.
The actuator has an IP54 rating, offering protection against dust and water splashes.
