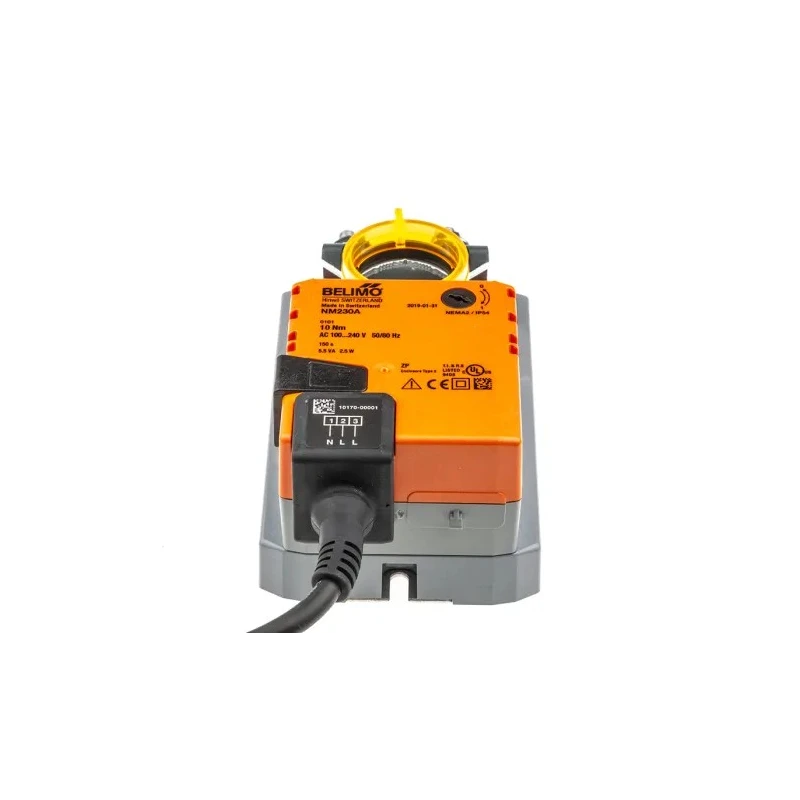

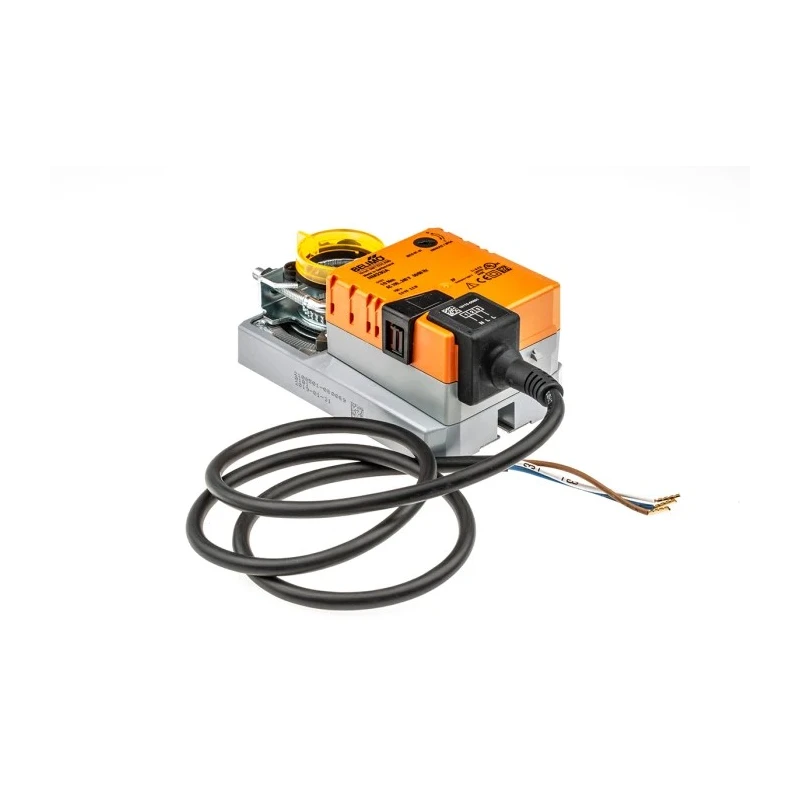

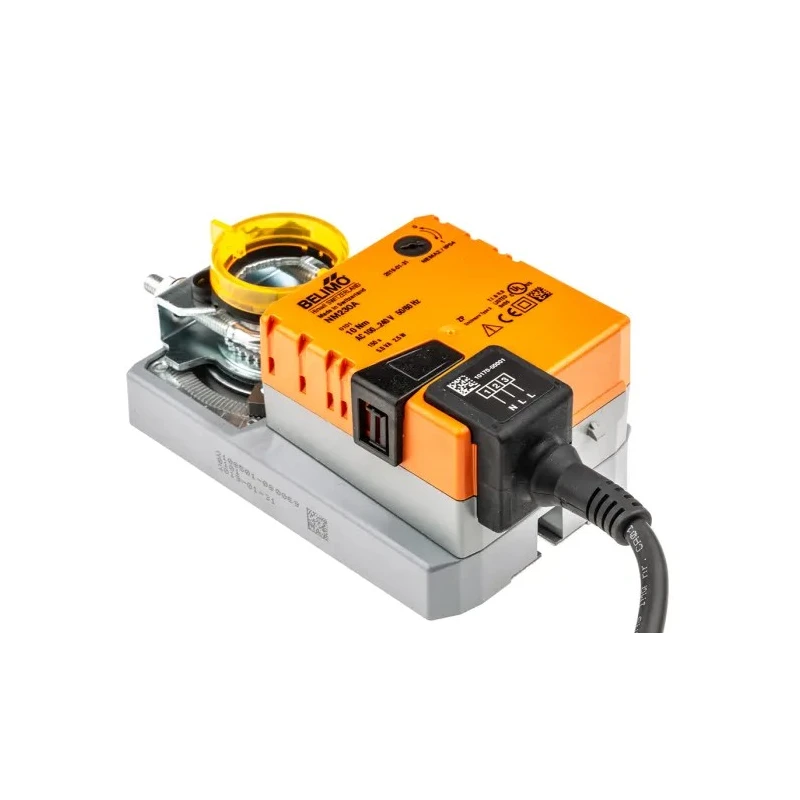

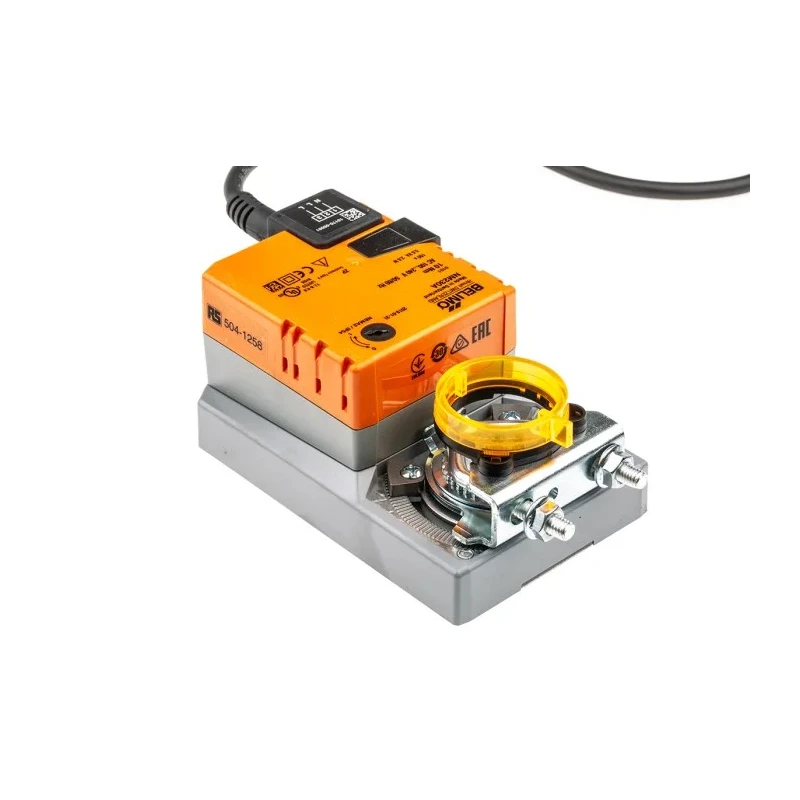

Belimo 240V AC Open/Close Damper Actuator with 10 Nm Motor Torque NM230A
Specifications
| Country of Origin | Switzerland |
|---|---|
| Power Consumption | 2.5W |
| Brand | Belimo |
| Model | NM230A |
| IP Rating | IP54 |
| Noise Level | 35dBA |
| Maximum Operating Temperature | 50°C |
| Control Type | Open/Close |
| Motor Torque | 10Nm |
| Minimum Operating Temperature | -30°C |
| Running Time | 150s |
| Supply Voltage | 240V ac |
| Standards/Approvals | CE, EN, RoHS |
| Angle of Rotation | 95° |
| Maximum Damper Area | 2m² |
| Maximum Damper Spindle Size | 26.7mm |
| Minimum Damper Spindle Size | 8mm |
| Damper ActuatorBrand | Belimo |
Key Features
- Operates on 240V AC voltage with power consumption of 2.5W.
- Motor torque of 10Nm enables efficient damper positioning.
- Compatible with damper spindle sizes from 8mm to 26.7mm.
- Features adjustable U-clamp for round or square shafts.
- Includes manual override pushbutton and direction change switch.
- Noise level is 35dBA ensuring quiet operation.
- Rated IP54 for protection against dust and water splashes.
- Operating temperature range from -30°C to 50°C.
Product Description
Belimo NM230A is a high-quality damper actuator designed for open/close control of air dampers in HVAC and ventilation systems. Operating at 240V AC, it delivers a motor torque of 10 Nm, suitable for damper areas up to 2m². The actuator features an adjustable U-clamp that fits both round and square damper spindles ranging between 8mm and 26.7mm in diameter. It is engineered for durability with a maintenance-free design and overload protection using stall torque technology that eliminates the need for end switches.
The NM230A actuator operates quietly with a noise level of only 35dBA and is rated IP54, offering excellent protection against dust and water splashes, making it suitable for industrial and commercial HVAC environments. It supports an angular rotation of 95 degrees with a running time of 150 seconds. The device includes a pushbutton manual override and a direction change switch for ease of installation and operation.
Designed and manufactured in Switzerland, it meets CE, EN, and RoHS standards, ensuring compliance with safety and environmental requirements. The actuator works reliably across an ambient temperature range of -30°C to 50°C, making it ideal for a variety of climate systems in buildings. Its low power consumption of 2.5W enhances energy efficiency in controlled air management applications.
Operates on 240V AC voltage with low power consumption. Provides 10 Nm motor torque for precise damper control. Fits damper spindle sizes from 8mm to 26.7mm with adjustable clamp. Noise level maintained at a quiet 35dBA.
IP54 rating for protection in demanding environments. Angular rotation of 95° with 150s running time. Maintenance-free operation with stall torque technology. Includes manual override and direction change switch. Certified compliant with CE, EN, and RoHS standards.
Suitable for industrial, commercial HVAC, and ventilation applications. Explore more Damper Actuators and HVAC accessories on EnvMart to find the perfect fit for your ventilation and air conditioning needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NM230A damper actuator provides a motor torque of 10 Nm, enabling efficient damper positioning.
This model operates on a supply voltage of 240V AC.
The noise level of the NM230A is maintained at a quiet 35 dBA, ensuring minimal disruption during operation.
It can handle a maximum damper area of up to 2 m².
The actuator is compatible with damper spindle sizes ranging from 8 mm to 26.7 mm, thanks to its adjustable U-clamp.
The NM230A operates effectively within a temperature range of -30°C to 50°C.
The actuator has a running time of 150 seconds for its full angular rotation of 95 degrees.
It meets CE, EN, and RoHS standards, ensuring compliance with safety and environmental requirements.
Yes, it includes a manual override pushbutton and a direction change switch for ease of operation.
The actuator is rated IP54, providing protection against dust and water splashes.
The NM230A has a low power consumption of 2.5W, enhancing energy efficiency.
This actuator is designed and manufactured in Switzerland.
