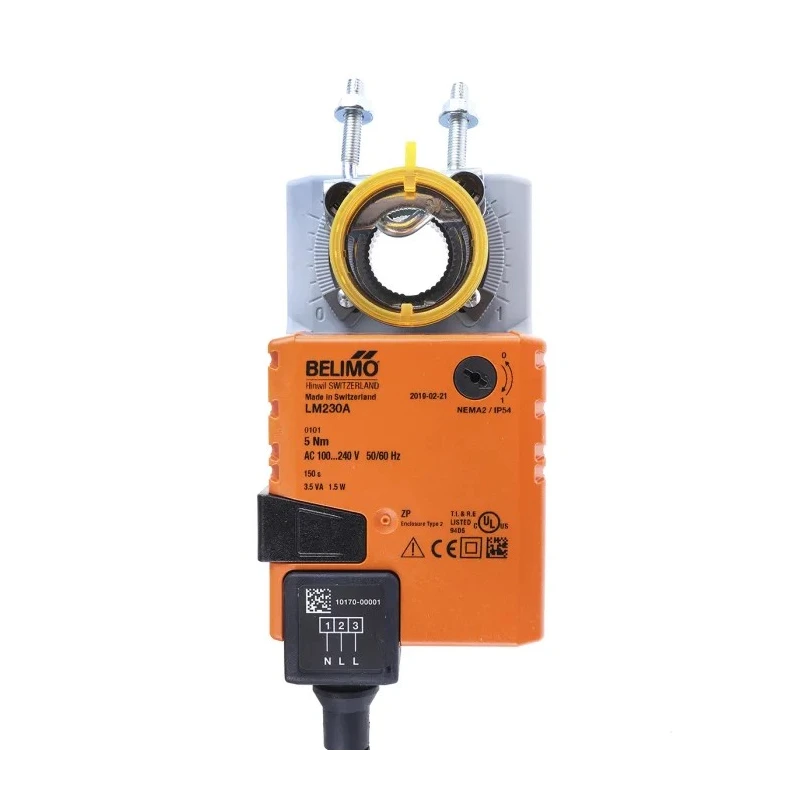

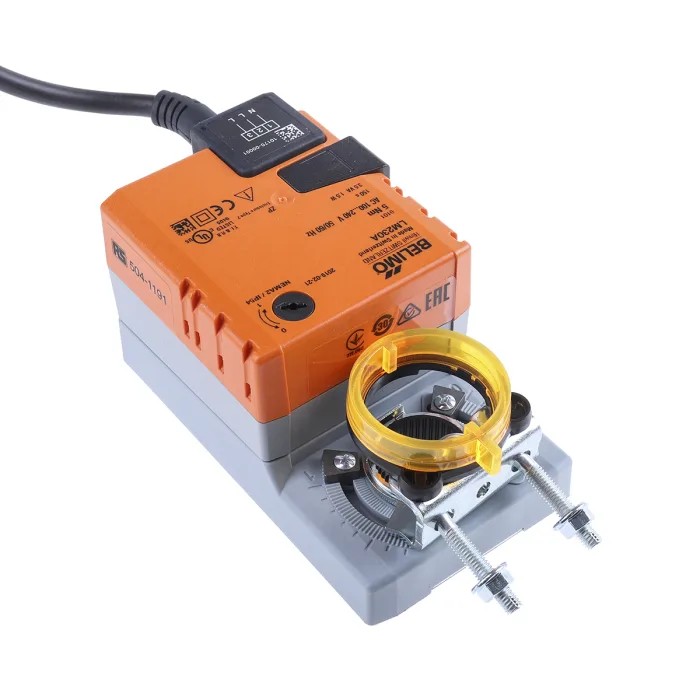

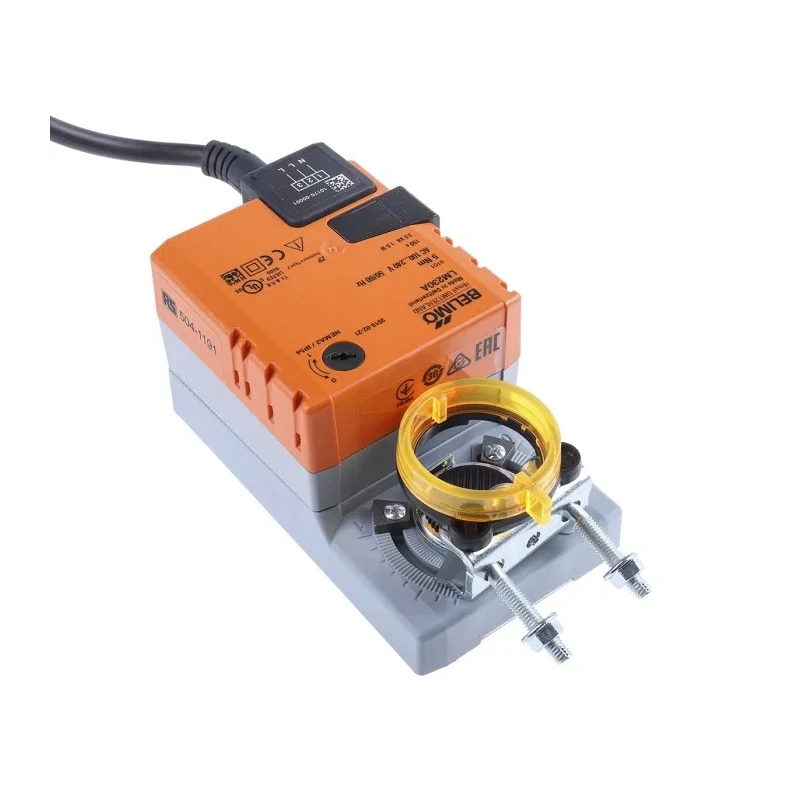

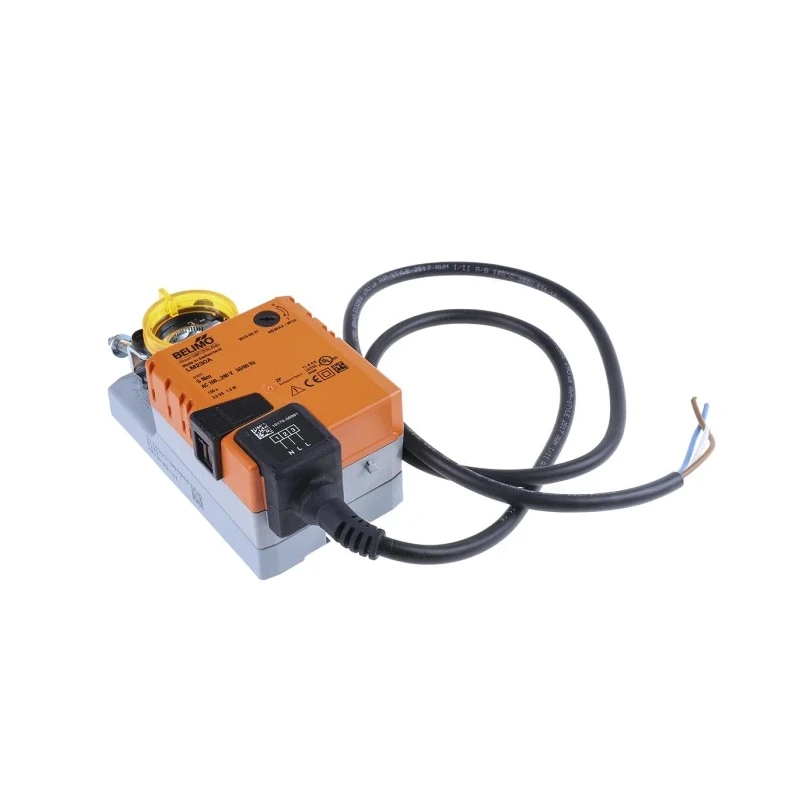

Belimo 240V AC Open/Close Damper Actuator, 5 Nm Torque, IP54 Rated LM230A
Specifications
| Country of Origin | Switzerland |
|---|---|
| Power Consumption | 1.5W |
| Brand | Belimo |
| Model | LM230A |
| IP Rating | IP54 |
| Noise Level | 35dBA |
| Maximum Operating Temperature | 50°C |
| Control Type | Open/Close |
| Motor Torque | 5Nm |
| Minimum Operating Temperature | -30°C |
| Running Time | 150s |
| Supply Voltage | 240V ac |
| Standards/Approvals | EN, CE, RoHS |
| Angle of Rotation | 95° |
| Maximum Damper Area | 1m² |
| Maximum Damper Spindle Size | 20mm |
| Minimum Damper Spindle Size | 6mm |
| Damper ActuatorBrand | Belimo |
| Belimo 240V ac Open/Close Damper Actuator, 5 NmBrand | Belimo |
Key Features
- The actuator supports damper spindle sizes from 6mm to 20mm.
- It operates with low power consumption of 1.5W and is IP54 rated for robust protection.
- Features include a noise level of 35 dBA and an angle of rotation of 95 degrees.
- Operating temperature ranges from -30°C to 50°C ensuring performance in diverse environments.
- Manufactured in Switzerland, it complies with EN, CE, and RoHS standards.
- The actuator offers a running time of 150 seconds with stall torque technology and no limit switches.
- Includes an adjustable U-clamp for both round and square shafts compatibility.
- Maintenance free and overload proof for reliable long-term operation.
Product Description
Belimo LM230A is a high-performance Damper Actuator designed for precise control of air dampers in ventilation and HVAC systems. Powered by 240V AC, this open/close actuator provides a motor torque of 5 Nm, making it suitable for damper areas up to 1 square meter.
Its rotary/louver actuator design features stall torque technology, which eliminates the need for end switches and offers overload protection. The unit is maintenance free, ensuring reliable operation over a minimum lifecycle of 60,000 cycles.
The actuator supports damper spindle sizes between 6mm and 20mm using an adjustable U-clamp that accepts both round and square shafts. It achieves an angle of rotation of 95 degrees within a running time of 150 seconds.
Operating within ambient temperature ranges from -30°C to 50°C and with a low noise output of 35 dBA, this device is ideal for commercial, industrial, and laboratory HVAC applications requiring quiet and durable damper automation.
The actuator is IP54 rated for protection against dust and water, compliant with EN, CE, and RoHS standards, and manufactured in Switzerland to exacting quality standards.
Optional auxiliary switches are available for extending functionality, making this actuator compatible with a wide range of HVAC control systems. Its low power consumption of just 1.5W further enhances operational efficiency.
The actuator supports damper spindle sizes from 6mm to 20mm. It operates with low power consumption of 1.5W and features a noise level of 35 dBA. Maintenance free with a minimum operational life of 60,000 cycles and overload proof design.
IP54 ingress protection rating suitable for industrial and commercial environments. Operating temperature range from -30°C to 50°C with an angle of rotation of 95° over 150 seconds. Manufactured in Switzerland and conforms to EN, CE, and RoHS standards.
Adjustable U-clamp allows compatibility with round and square shafts. Explore the range of Belimo actuators on EnvMart for quality HVAC automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The actuator provides a motor torque of 5 Nm, making it suitable for damper areas up to 1 square meter.
It operates with a low power consumption of 1.5W, enhancing operational efficiency.
The actuator is IP54 rated, providing protection against dust and water, suitable for industrial and commercial environments.
It can operate within a temperature range of -30°C to 50°C, ensuring performance in diverse environments.
The actuator has a running time of 150 seconds to achieve its full rotation of 95 degrees.
The noise level is rated at 35 dBA, making it suitable for applications requiring quiet operation.
It supports damper spindle sizes ranging from 6mm to 20mm, using an adjustable U-clamp for compatibility.
This actuator complies with EN, CE, and RoHS standards, ensuring it meets regulatory requirements.
Yes, it is designed to be maintenance free with a minimum operational life of 60,000 cycles.
It operates with an open/close control type, suitable for various HVAC applications.
It is manufactured in Switzerland, adhering to high quality standards.
Optional auxiliary switches are available for extending the functionality of the actuator, making it compatible with various HVAC control systems.
