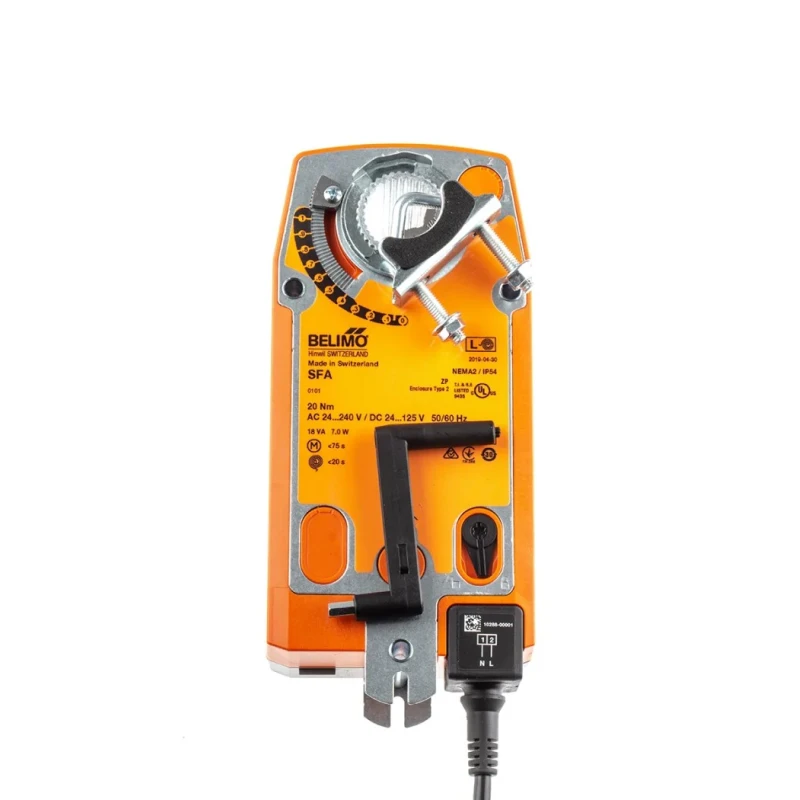

Belimo Open/Close Damper Actuator 20 Nm, 264V, 7W Power, SF Series SFA
Specifications
| Country of Origin | Switzerland |
|---|---|
| Power Consumption | 7W |
| Brand | Belimo |
| Model | SFA |
| IP Rating | IP54 |
| Noise Level | 45dBA |
| Series | SF |
| Maximum Operating Temperature | 50°C |
| Control Type | Open/Close |
| Motor Torque | 20Nm |
| Minimum Operating Temperature | -30°C |
| Running Time | 75s |
| Supply Voltage | 264V |
| Standards/Approvals | UL, CE, IEC, EN, CSA |
| Angle of Rotation | 95° |
| Maximum Damper Area | 4m² |
| Maximum Damper Spindle Size | 25.4mm |
| Minimum Damper Spindle Size | 10mm |
| CAN/CSA E60730-1 | 02 |
| Open/Close Damper Actuator, 20Nm, 24 V ac/dcBrand | Belimo |
Key Features
- Provides 20 Nm motor torque for precise damper movement.
- Operates at a voltage of 264V with low power consumption of 7W.
- Features open/close control type with spring return emergency function.
- Adjustable U-clamp accepts round or square damper shafts between 10mm and 25.4mm.
- IP54 rated for protection against dust and water splashes.
- Noise level is controlled at a low 45 dBA for quiet operation.
- Compatible with maximum damper area of 4 square meters.
- Operating temperature range from -30°C to 50°C.
Product Description
Belimo SFA Open/Close Damper Actuator delivers reliable 20 Nm torque with 264V power for controlling HVAC air dampers. Designed for ventilation and air conditioning systems in commercial and industrial buildings, this actuator ensures precise damper control with an open/close function and spring return emergency operation.
This actuator features an adjustable U-clamp that accepts both round and square shafts sized from 10mm to 25.4mm, allowing versatile installation. It operates with a quiet noise level of 45 dBA and has an IP54 protection rating, making it suitable for harsh environments.
Operating temperature ranges from -30°C to 50°C, ensuring performance across diverse climates. The actuator moves dampers within 75 seconds across a 95° rotation angle, providing efficient airflow regulation. It supports a maximum damper area of up to 4 square meters.
Equipped with 2 x SPDT integrated auxiliary switches, it allows for advanced control and monitoring options. The device is overload proof and does not require limit switches, simplifying maintenance. Control signals support standard DC 0V to 10V input.
Manufactured in Switzerland, this SF series actuator complies with international standards including UL, CE, IEC, EN, and CSA for quality and safety assurance. Provides 20 Nm motor torque for precise damper movement. Operates at a voltage of 264V with power consumption of 7W.
Features spring return emergency function for safety. Adjustable U-clamp fits damper spindles from 10mm to 25.4mm. IP54 rated enclosure ensures dust and water protection. Quiet operation with noise level of 45 dBA. Suitable for dampers up to 4 square meters in area.
Wide operating temperature range from -30°C to 50°C. Fast 75-second running time with a 95° rotation angle. Certified to UL, CE, IEC, EN, and CSA standards.
This device is ideal for industrial HVAC, commercial air handling units, ventilation systems, and building automation requiring robust and reliable damper control. Available as part of EnvMart’s quality assortment of Damper Actuators from Belimo, trusted worldwide for precision and longevity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a motor torque of 20 Nm for precise damper movement.
It operates with a low power consumption of 7W.
The actuator operates at a supply voltage of 264V.
It is compatible with a maximum damper area of up to 4 square meters.
The adjustable U-clamp accepts damper spindles ranging from 10mm to 25.4mm in size.
The actuator can operate within a temperature range of -30°C to 50°C.
It has a running time of 75 seconds for a 95° rotation angle.
The noise level is controlled at a low 45 dBA for quiet operation.
It has an IP54 rating, providing protection against dust and water splashes.
This model features an open/close control type with a spring return emergency function.
It complies with international standards including UL, CE, IEC, EN, and CSA for quality and safety assurance.
This actuator is manufactured in Switzerland.
