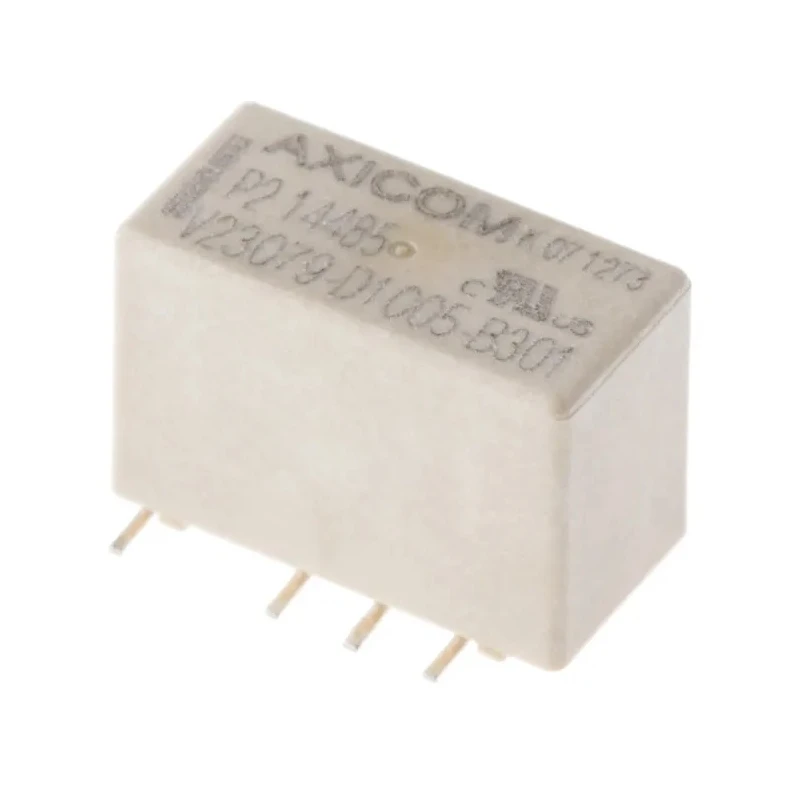

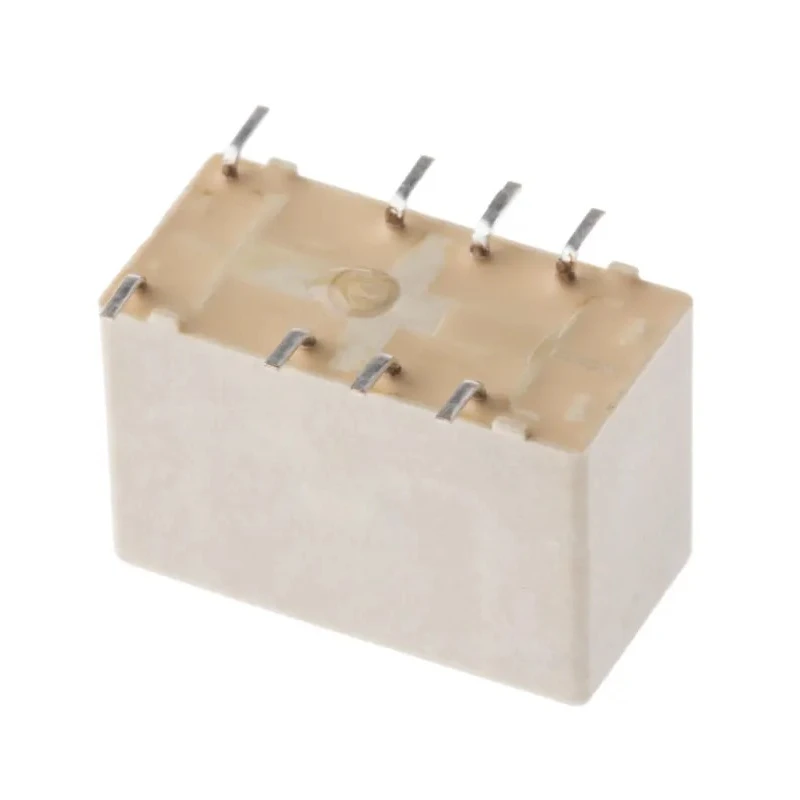

TE Connectivity Surface Mount Signal Relay 24V Coil Voltage DPDT Contact Configuration 2A Switching Current 5-1393788-8
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 10.4mm |
| Length | 14.5mm |
| Width | 7.2mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | REACH, RoHS |
| Coil Resistance | 4100Ω |
| Coil Voltage | 24V |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- This miniature relay belongs to the P2 V23079 series optimized for low power consumption and high sensitivity.
- It features gold plated bifurcated contacts ensuring reliable conductivity and corrosion resistance.
- The relay supports surface mount installation with solder type terminals for efficient PCB integration.
- Operating temperature ranges from -40°C to 85°C suitable for varied industrial environments.
- It offers switching voltages up to 250V AC and 220V DC with a coil resistance of 4100Ω and power consumption of 140mW.
- Constructed to meet REACH and RoHS standards with high insulation resistance and flammability classification V-0.
- Applications include communications equipment, office automation, consumer electronics, medical devices, and automotive systems.
Product Description
TE Connectivity 5-1393788-8 Surface Mount Signal Relay is a high-sensitivity, miniature DPDT relay engineered with a 24V coil voltage and 2A switching current capacity. It is part of the P2 V23079 series, designed for low power consumption and optimized for space-saving applications with a slim, low-profile form factor.
The relay contacts are gold plated and bifurcated, improving electrical performance and resistance to corrosion. It supports surface mount with solder terminal type, facilitating easy and reliable PCB assembly.
The relay operates effectively over a wide temperature range from -40°C to +85°C, making it suitable for harsh industrial environments. It offers switching capabilities up to 250V AC and 220V DC, with a coil resistance of 4100 ohms and a low coil power requirement of 140mW, contributing to energy efficiency.
Constructed with immersion cleaning capability, RTIII protection, IP67 rating, and UL standards compliance, it enjoys robust insulation resistance greater than 1 gigaohm at 500V DC and flammability rating V-0. Surge capability meets Telcordia TR-NWT-001089 and IEC 60950 requirements ensuring durability under electrical stress.
Typical applications include communications equipment such as PABX and VOIP systems for ringing and test access, consumer electronics like set-top boxes, office automation machines, medical devices, and automotive equipment to ensure signal switching and control.
This miniature relay is from the P2 V23079 series with high sensitivity and low power consumption. Gold plated bifurcated contacts provide reliable electrical connectivity and resistance to corrosion. Surface mount installation with solder terminal type for reliable PCB integration.
Wide operating temperature range from -40°C to 85°C accommodates harsh environments. Supports switching voltages of 250V AC and 220V DC with a coil resistance of 4100 ohms. Certified to RoHS and REACH environmental standards, ensuring compliance and safety.
Ideal for communications, consumer electronics, office automation, medical and automotive applications.
This relay is a quality product from TE Connectivity, manufactured in the Czech Republic, tailored for industrial, telecommunications, and commercial applications requiring reliable signal switching performance. Explore more Signal Relay options and related TE Connectivity products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V.
This model has a switching current capacity of 2A.
The relay has dimensions of 10.4mm in height, 14.5mm in length, and 7.2mm in width.
The maximum operating temperature for this relay is 85°C.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance of this relay is 4100Ω.
The relay has a power consumption of 140mW.
It supports switching voltages of up to 250V AC and 220V DC.
This relay supports surface mount installation with solder type terminals.
This model complies with REACH and RoHS standards.
Typical applications include communications equipment, office automation, consumer electronics, medical devices, and automotive systems.
This relay is manufactured in the Czech Republic.
