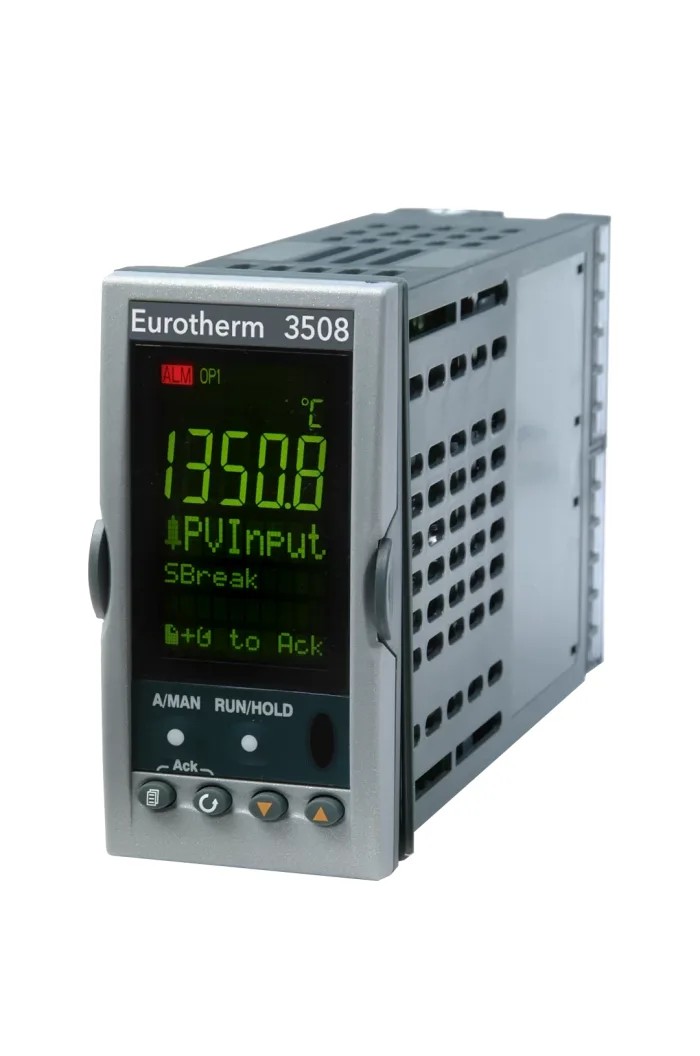

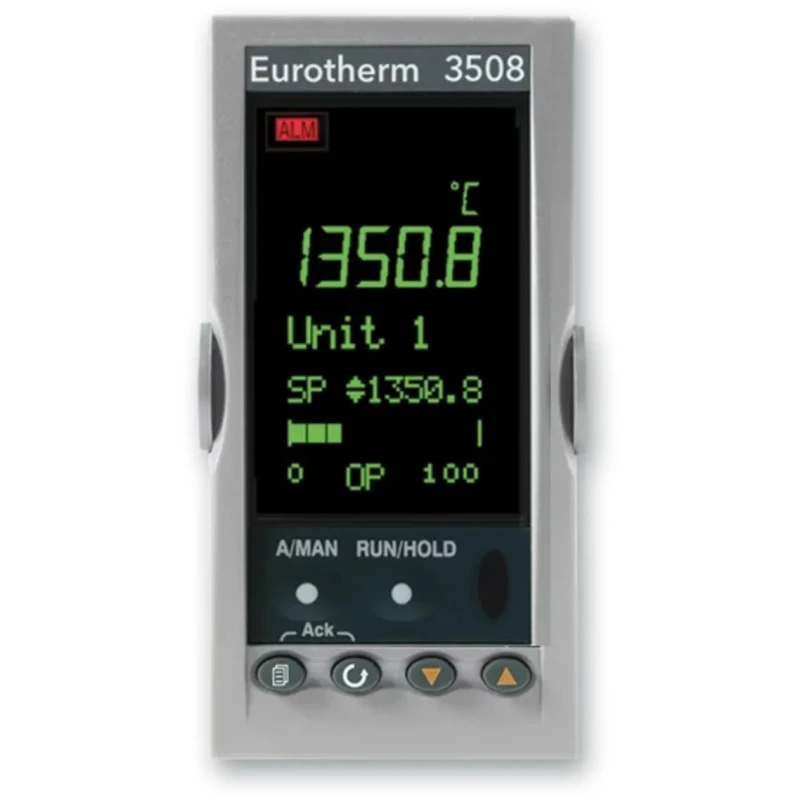

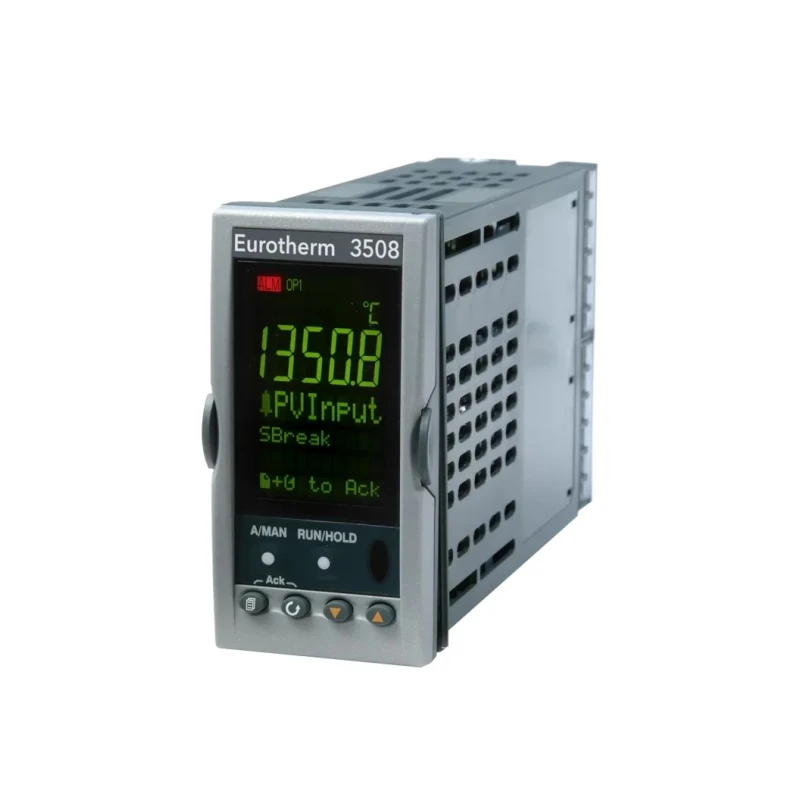

Eurotherm 3500 Panel PID Temperature Controller 3 Input, 6 Output Analogue Relay On-Off 3508/CCE/VH/X/XX/1/8/XXX/G/D4/LO/R4
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | LCD Backlight |
| Brand | Eurotherm |
| Length | 150mm |
| Model | 3508/CCE/VH/X/XX/1/8/XXX/G/D4/LO/R4 |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel |
| Number of inputs | 3 |
| Output type | Analogue, Relay |
| Series | 3500 |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 2A |
| Number of outputs | 6 |
| Terminal type | Screw |
| Auxiliary Power Supply | 24 W |
| Standards/Approvals | NEMA 12 |
| Maximum Supply Voltage | 264V ac |
| Panel Depth | 150mm |
Key Features
- Equipped with 3 input channels and 6 analog relay outputs for versatile control.
- Operates on supply voltage up to 264V AC with auxiliary power of 24 W.
- Integrated diagnostics and on-off control type for reliable operation.
- Features LCD backlight display with a 5-digit readout for clear process indication.
- Designed for panel mounting with IP65 rating ensuring protection against dust and water.
- Suitable for various industrial applications including autoclaves and heat treatment.
- Supports NEMA 12 standard for industrial enclosures.
- Operates safely in temperature range from 0°C to 50°C.
Product Description
Eurotherm 3508/CCE/VH/X/XX/1/8/XXX/G/D4/LO/R4 is a panel PID temperature controller designed for high precision process control in industrial applications. It supports 3 sensor inputs and provides 6 analogue and relay outputs, enabling versatile control options suitable for complex processes.
Operating with a maximum supply voltage of 264V AC and auxiliary power supply of 24 W, this robust temperature controller is built to deliver reliable on-off control with integrated diagnostics capabilities, ensuring real-time monitoring and fault detection.
The device features a clear LCD backlight display with a 5-digit numeric readout and vertical and horizontal bar graphs for intuitive process visualization. Mounting is intended on panels with an IP65 rated enclosure, providing protection against dust and moisture, making it appropriate for demanding industrial environments.
Compact in size with dimensions of 150mm length, 48mm width, and 150mm panel depth, this controller complies with NEMA 12 standards for industrial equipment, suitable for applications including autoclaves, environmental chambers, heat treatment, reactors, fermenters, semiconductor manufacturing, and melt pressure control.
Equipped with 3 input channels and 6 outputs for comprehensive process management. High operating temperature range from 0°C to 50°C ensures versatility. Robust panel mounting design with IP65 protection safeguards instrument integrity.
Advanced user interface featuring a 5-digit display and customizable messaging. Supports carbon potential measurement and recipe programming for flexible process control. Ideal for industrial, laboratory, semiconductor, and manufacturing environments.
Manufactured in the United Kingdom ensuring quality and compliance.
This Eurotherm 3500 series temperature controller is a reliable choice for precision process applications demanding multiple inputs and outputs with advanced control and diagnostic features. EnvMart offers comprehensive details and purchasing options in this category for industrial Temperature Controllers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 264V AC.
This temperature controller supports 3 input channels.
It provides 6 outputs, which include both analogue and relay types.
The operating temperature range is from 0°C to 50°C.
The dimensions are 150mm in length, 48mm in width, and 150mm in panel depth.
It features an LCD backlight display with a 5-digit numeric readout.
Yes, it is designed for panel mounting and has an IP65 rating for protection against dust and moisture.
The auxiliary power supply requirement is 24 W.
It complies with NEMA 12 standards for industrial equipment.
This model utilizes an on-off control type.
It is suitable for various industrial applications including autoclaves, heat treatment, and environmental chambers.
It is manufactured in the United Kingdom.
