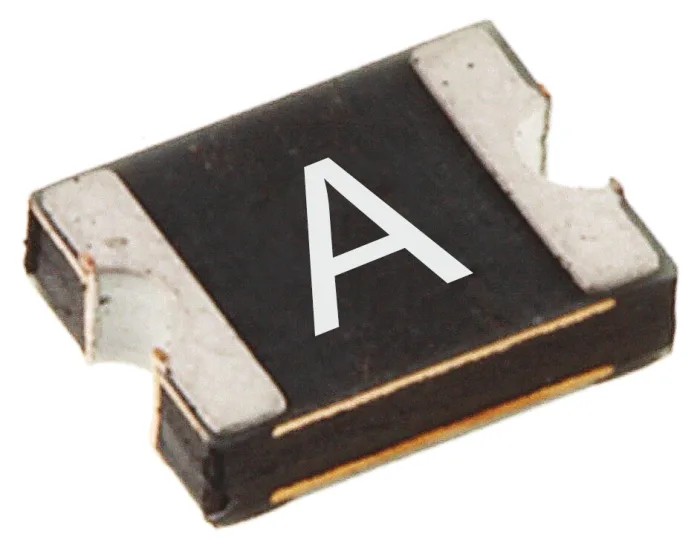

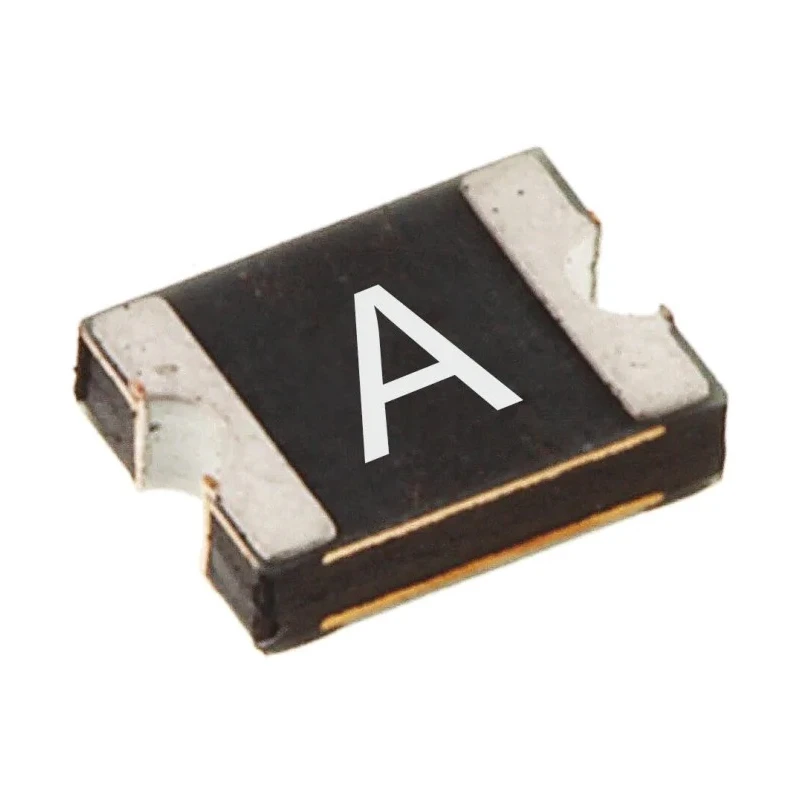

Littelfuse 0.16 A 30V dc Resettable Fuse Surface Mount Technology POLY-FUSE 1206L Series 1206L016WR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V dc |
| Brand | Littelfuse |
| Height | 1.45mm |
| Length | 3.5mm |
| Model | 1206L016WR |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | 1206L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Trip Current | 0.37A |
| Power Dissipation | 0.6W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 0.3s |
| Hold Current | 0.16A |
| Minimum Resistance | 1.2Ω |
| Maximum Resistance | 4.5Ω |
Key Features
- Offers automatic reset after fault conditions to protect electrical circuits.
- Designed with POLY-FUSE PTC technology in compact 1206L package size.
- Supports trip current rating of 0.37 A and 100 A current rating for robustness.
- Features tin plated copper terminals for reliable soldering and connectivity.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
- Small dimensions of 3.5 mm length, 1.8 mm width, and 1.45 mm height enable space-saving installation.
- Power dissipation is 0.6 W with rapid response time to trip in 0.3 seconds.
- Certified RoHS compliant ensuring environmentally safe manufacturing.
Product Description
Littelfuse 1206L016WR is a high-quality resettable fuse from the POLY-FUSE 1206L series designed for surface mount technology applications requiring compact space and reliable overcurrent protection. It operates at a hold current of 0.16 A and supports a voltage rating of 30V dc.
This resettable fuse utilizes polymeric positive temperature coefficient (PTC) material that automatically switches from a low resistance to a high resistance state during electrical overload or short circuit conditions. It resets automatically when the fault condition ceases and power is removed, providing maintenance-free protection for thousands of cycles.
The component measures 3.5 mm in length, 1.8 mm in width, and 1.45 mm in height with tin plated copper terminals, ensuring excellent solderability and reliable connection. It features a quick trip time of 0.3 seconds and can safely handle up to 100 A current. Power dissipation is rated at 0.6 W.
Operating temperatures range from -40°C to 85°C, suitable for demanding industrial, automotive, medical, and electronic applications. The fuse is RoHS compliant, confirming adherence to environmental safety standards.
Common use cases include protection of security systems, power supplies and transformers, automotive circuits, medical devices, instrumentation and control systems, computers and peripherals, audio visual equipment, and telecommunications hardware.
Automatic resettable protection for overcurrent conditions. Compact 1206 package suitable for surface mount assembly. High reliability with maintenance-free operation for thousands of cycles. Suitable for industrial, automotive, medical, and electronic applications.
Compliant with RoHS environmental standards. Explore more from Littelfuse and related Resettable Fuse products at EnvMart for reliable circuit protection solutions in various industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 0.16 A.
It has a maximum voltage rating of 30V dc.
The trip current rating is 0.37 A.
The dimensions are 3.5 mm in length, 1.8 mm in width, and 1.45 mm in height.
The power dissipation is rated at 0.6 W.
It operates within a temperature range of -40°C to 85°C.
It has a quick trip time of 0.3 seconds.
It features tin plated copper terminals for reliable soldering and connectivity.
Yes, it is certified RoHS compliant, ensuring environmentally safe manufacturing.
Common applications include protection of security systems, power supplies, automotive circuits, and medical devices.
This model can safely handle up to 100 A current.
It comes in a reel package type, suitable for surface mount technology.
