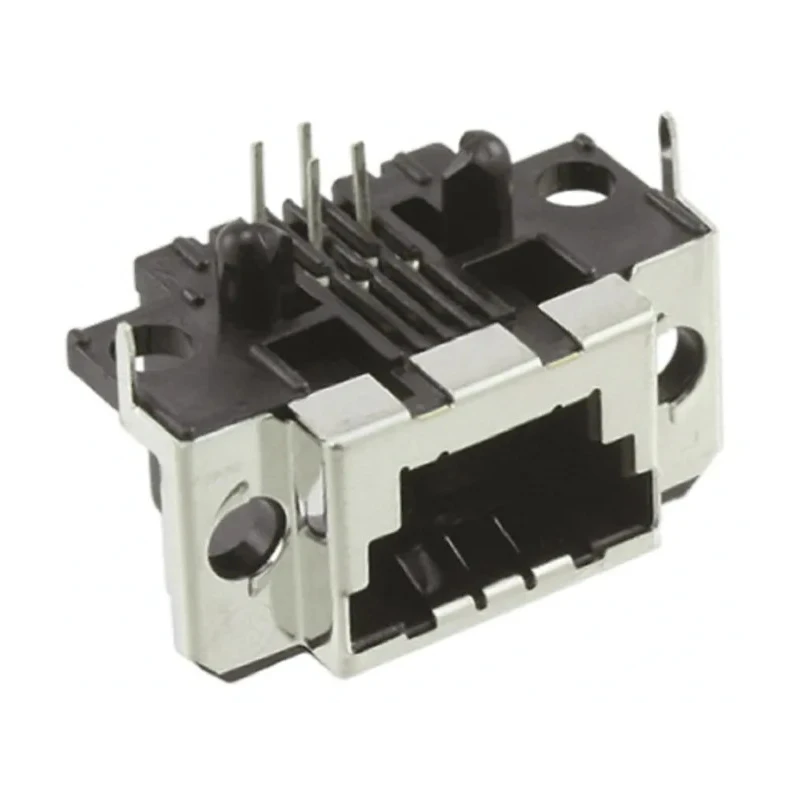

TE Connectivity Female Shielded Data Link (SDL) Connector 4 Way Through Hole Solder Termination 5-1761185-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Connector Type | Shielded Data Link |
| Number Of Ways | 4 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | SDL |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
Key Features
- Designed with phosphor bronze contacts plated in gold over nickel for superior conductivity.
- Housing constructed from black polyethylene terephthalate with UL 94V-0 flame rating.
- Operating temperature range from -20°C to 80°C ensuring durability in varied environments.
- Integral letter-coded polarization slots prevent mis-mating with plugs.
- Complies with RoHS standards for environmental safety.
- Typical applications include data, communication, and medical system interconnections.
- Series designation is SDL, matching industry shielded data link standards.
- Connector gender is female with a 4-way configuration for multiple signal paths.
Product Description
TE Connectivity 5-1761185-1 Female Shielded Data Link (SDL) Connector is a 4-way, through hole mounted, solder termination connector designed for high reliability in data transmission and communication applications. The connector features gold over nickel plated phosphor bronze contacts ensuring excellent electrical performance and corrosion resistance. Its black polyethylene terephthalate housing has an EMI/RFI shield and is rated UL 94V-0 for flame retardance, making it suitable for demanding industrial and medical environments.
The connector has integral letter-coded polarization keying slots of 'Type E' to ensure correct alignment and mating with compatible plug assemblies. It operates efficiently within a temperature range of -20°C to 80°C. This connector series complies with RoHS environmental directives to reduce hazardous substances.
Typical uses include telecommunications equipment, data networking systems, and medical device interconnections where signal integrity and secure mechanical fastening are critical. The solder tail termination provides reliable PCB connections and electrical continuity with through hole mounting enhancing mechanical stability.
Gold over nickel plated phosphor bronze contacts for optimal conductivity. Black polyethylene terephthalate housing with EMI/RFI shield. Operating temperature range from -20°C to 80°C. Integral polarized keying for correct plug engagement.
Compliant with RoHS environmental standards. 4-way female configuration suitable for multi-signal boards. Through hole solder termination for secure PCB mounting. SDL series connector designed for data and communication systems.
This TE Connectivity SDL connector is an ideal choice for industrial, telecommunications, medical, and electronic manufacturing applications seeking dependable shielded PCB connectors. For additional components, compatible plug connectors are available.
Explore a wide range of high quality Connectors on EnvMart to meet all your industrial and electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this connector is from -20°C to 80°C.
This model uses a solder termination type for secure PCB mounting.
The housing is made from black polyethylene terephthalate, and the contacts are phosphor bronze plated with gold over nickel.
This connector supports 4 signal paths, as it is a 4-way configuration.
Yes, this connector complies with RoHS environmental standards, which reduce hazardous substances.
It features integral letter-coded polarization slots to prevent mis-mating with plugs.
This connector is female, designed for compatibility with corresponding male connectors.
Typical applications include telecommunications equipment, data networking systems, and medical device interconnections.
The connector housing is black in color.
The country of origin for this connector is India.
This connector belongs to the SDL series, which matches industry shielded data link standards.
This model features a through hole mounting type, enhancing mechanical stability.
