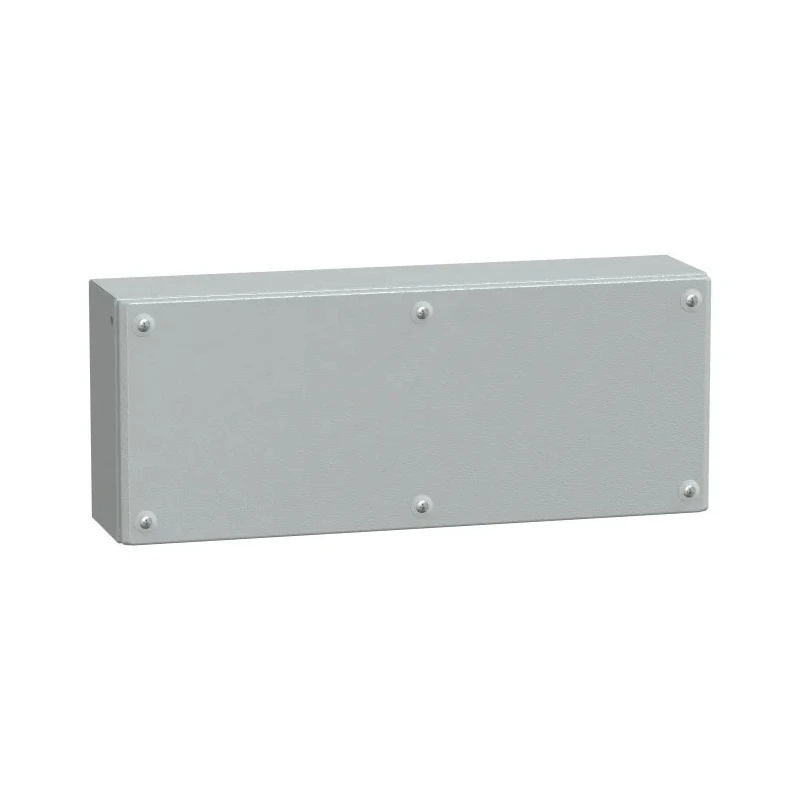

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 Grey 200mm x 500mm x 120mm NSYSBM205012
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYSBM205012 |
| IP Rating | IP66 |
| Series | PanelSeT SBM |
| External Width | 500mm |
| External Depth | 120mm |
| External Height | 200mm |
| Standards/Approvals | REACH, DNV, IEC 62208, LR, UL, RoHS, BV |
| Door Lock Type | Screw |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| Outside sealed area | PZ2 screwdriver captive screw lock |
| nVent HOFFMAN GL66 Series Steel Wall Box, IP66, 300 mm x 200 mm x 80mmBrand | nVent - Hoffman |
| Legrand Atlantic Series Steel Wall Box, IP66, 200 mm x 400 mm x 120 mmBrand | Legrand |
Key Features
- Constructed from steel with a polyester powder coating finish in grey (RAL 7035).
- Provides IP66 protection ensuring dust tightness and protection against powerful water jets.
- Complies with IK10 standard for mechanical impact resistance.
- Measures 200mm height, 500mm width, and 120mm depth for versatile industrial applications.
- Features a plain door with captive screws and a screw lock type for secure sealing.
- Designed for wall mounting with a single-piece folded and welded body.
- Includes a polyurethane sealing gasket and an M6 x 16 earth stud for equipotential bonding.
- Suitable for use in industrial machines, building applications, tunnels, and underground parking areas.
Product Description
Schneider Electric NSYSBM205012 PanelSeT SBM Series steel wall box is a high-quality industrial enclosure manufactured for protecting sensitive electronic components in demanding environments. It is designed with a robust steel body coated in grey polyester powder (RAL 7035) to ensure longevity and resistance to corrosion.
The enclosure provides IP66 ingress protection, making it dust tight and capable of withstanding powerful water jets, suitable for harsh industrial conditions. The unit is also rated IK10, conforming to IEC 62262, offering reliable resistance against significant mechanical impacts.
This wall box measures 200mm in height, 500mm in width, and 120mm in depth, offering ample space for panel mounting. It features a flat face box design with a single-piece folded and welded body for strength and ease of installation. The enclosure includes a plain door secured by half-turn captive screws, with screw locking for enhanced security. A polyurethane sealing gasket provides an effective seal against ingress of dust and water.
The enclosure's cover has an M6 x 16 earth stud welded for equipotential connections, ensuring safety in electrical installations. It is designed for direct wall mounting and includes folded gutters and drilled profiles for mounting plates and DIN rails at the rear with fixing centres of 12.5mm.
Schneider Electric's PanelSeT SBM Series enclosures meet multiple international standards including IEC 62208, REACH, RoHS, UL, DNV, LR, and BV. These enclosures are commonly applied in industrial machinery, building infrastructure, and critical environments such as underground parking, road, and railway tunnels.
Constructed from steel with polyester powder coating finish in RAL 7035 grey. IP66 protection ensuring dust tightness and protection against water jets. IK10 rated for impact resistance as per IEC 62262. Wall-mount design with folded and welded single piece body.
Secured with captive half-turn screws and PZ2 screwdriver captive screw lock. Includes welded M6 x 16 earth stud for equipotential bonding. Suitable for industrial, commercial, and infrastructure applications including tunnels and parking facilities.
Complies with IEC, REACH, RoHS, UL, DNV, LR, and BV standards. Explore the Schneider Electric range of industrial enclosures on EnvMart for reliable protection solutions in electrical and automation systems.
Explore more products in our Wall Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 200mm in height, 500mm in width, and 120mm in depth.
It has an IP66 rating, ensuring it is dust tight and can withstand powerful water jets.
The enclosure is constructed from steel and features a polyester powder coating finish in grey (RAL 7035).
This unit is rated IK10, conforming to IEC 62262 standards for mechanical impact resistance.
The door is secured with half-turn captive screws and features a screw lock type for enhanced security.
Yes, it is designed for industrial applications, including use in tunnels and underground parking areas, making it suitable for outdoor environments.
It complies with multiple international standards including REACH, RoHS, UL, DNV, LR, and BV.
It is designed for wall mounting and includes folded gutters and drilled profiles for mounting plates and DIN rails at the rear.
It includes a welded M6 x 16 earth stud for equipotential bonding, ensuring safety in electrical installations.
The internal mount type is designed for panel mounting, providing ample space for various applications.
The finish color of this model is grey, specifically RAL 7035.
The Schneider Electric PanelSeT SBM Series wall box is manufactured in India.
