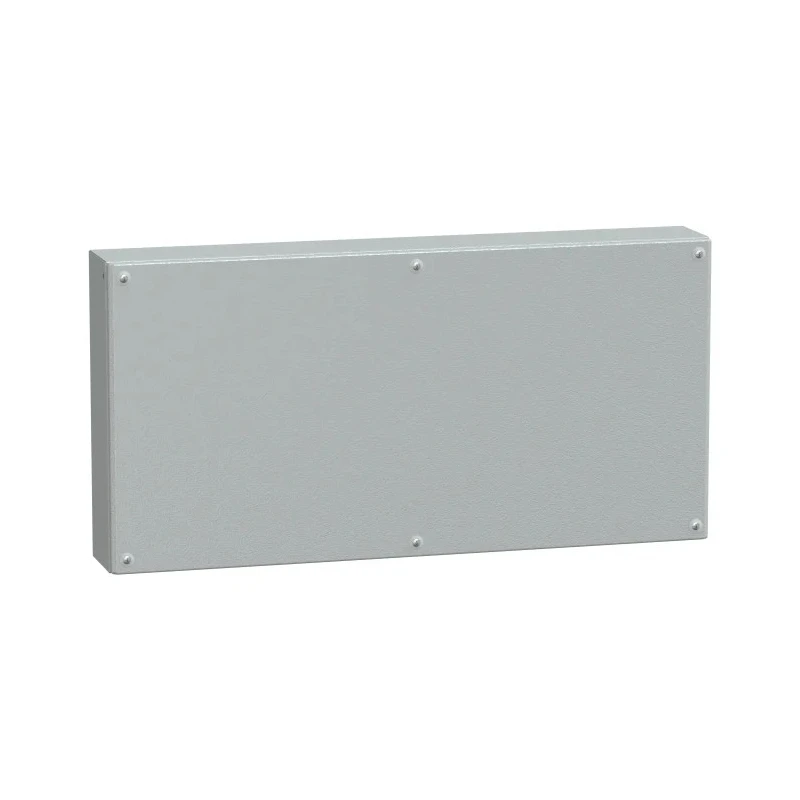

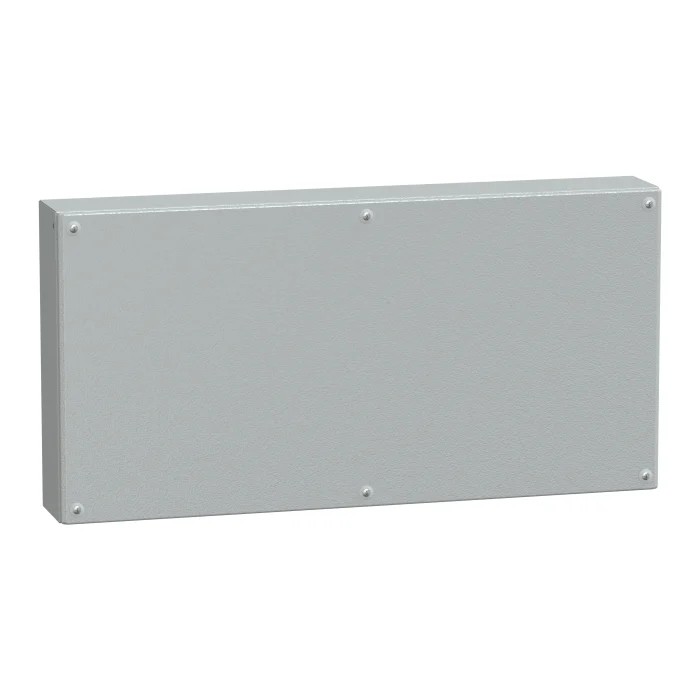

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 Grey 400 mm x 800 mm x 120 mm NSYSBM408012

Schneider Electric NSYSBM408012 PanelSeT SBM Series steel wall box enclosure offers a robust solution for industrial electrical protection and panel mounting. This wall-mounted enclosure is engineered from high-quality steel with a grey RAL 7035 polyester powder-coated finish, providing excellent durability and corrosion resistance suitable for demanding industrial applications.

The enclosure measuring 400 mm in height, 800 mm in width, and 120 mm in depth delivers spacious internal mounting capability. It complies with IP66 protection class ensuring complete dust ingress protection and resistance to powerful water jets, making it ideal for harsh outdoor and indoor industrial environments.

Highlighted by IK10 mechanical impact resistance rating, the enclosure is shock-proof against impacts equivalent to a 5 kg object dropped from 40 cm height. It features a plain door secured via screw-type locking with PZ2 captive screws allowing easy access while maintaining secure closure and an M6 earth stud welded to the cover to guarantee equipotential bonding.

The PanelSeT SBM Series includes a single-piece folded and welded body ensuring structural integrity. The door incorporates a polyurethane sealing gasket for tight water and dust sealing. The enclosure is equipped for panel mounting with rear fixing centers and profiles for DIN rails and mounting plates, enabling versatile installation options.

Package contents include 1 enclosure door/cover, 6 cover screws, and 1 enclosure body, ready for immediate deployment. This product is certified to multiple standards including IEC 62208, UL, RoHS, REACH, and recognized by LR, BV, DNV, promoting quality and environmental compliance.

Typical industrial uses span from machine enclosures and electrical automation in manufacturing plants, infrastructure tunnels, underground parking, to transport and railway applications. Its design facilitates maintenance with captive screw locking and compatibility with additional accessories like extension boxes to extend size options beyond the 28 base sizes.

Constructed from sheet steel with a durable polyester powder coating in grey (RAL 7035). Provides IP66-rated sealing against dust ingress and powerful water jets for harsh environments. Equipped with a plain door secured by PZ2 captive screws ensuring secure locking with screw-type mechanism.

External dimensions measure 400 mm height by 800 mm width and 120 mm depth, suitable for industrial wall mounting. Complies with international standards including IEC 60529, IEC 62208, UL, RoHS, IK10 impact resistance. Designed with a welded single-piece body and polyurethane sealing gasket for enhanced waterproofing.

Includes 1 enclosure door/cover, 6 cover screws, and 1 enclosure body for immediate installation. Suitable for various industrial applications including machine and building automation, tunnels, and transportation infrastructure.

Built for easy installation with rear fixing centers and half-turn metal screws. Meets Schneider Electric’s Better World program requirements with designed-for-disassembly features promoting sustainability. Explore our range of industrial electrical enclosures and Wall Boxes at EnvMart for reliable equipment protection solutions.
