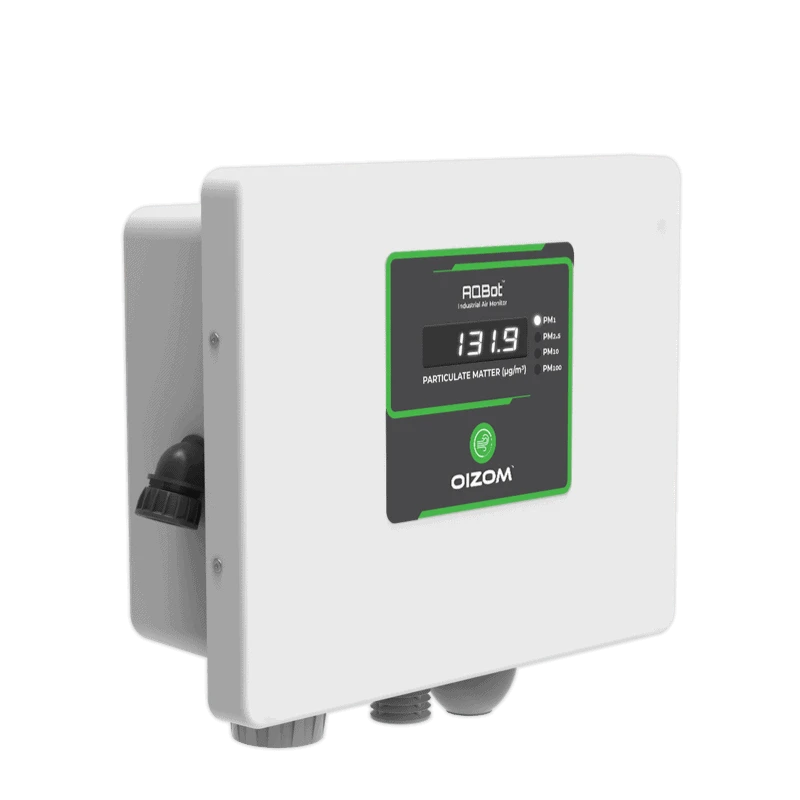

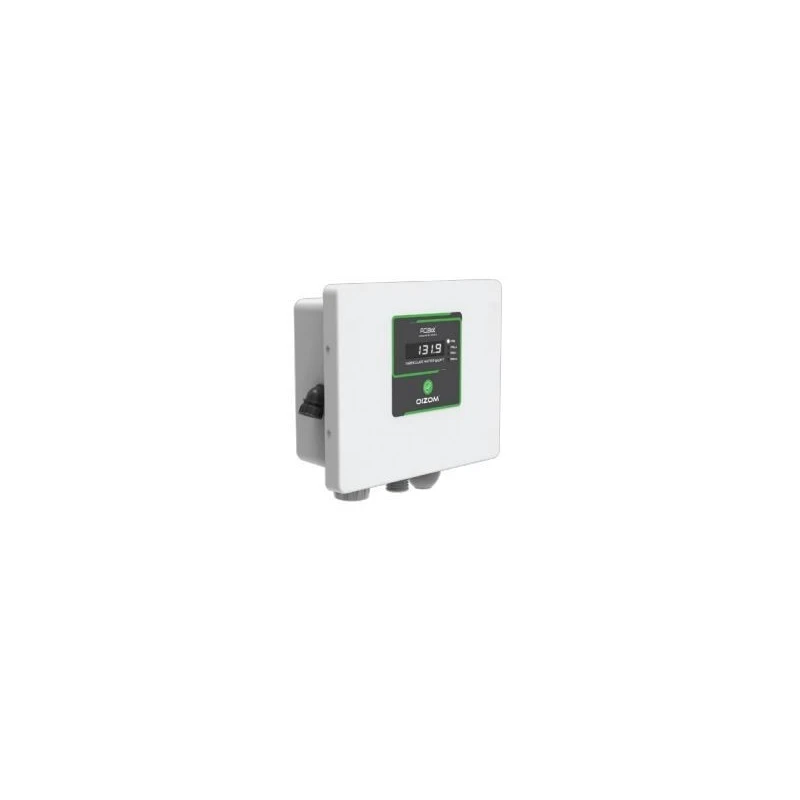

AQBot PM Monitor-Single Point Continuous PM Monitor
Specifications
| Accuracy | Less Than 5%FS (at 205C/ 5020%RH |
|---|---|
| Net Weight | 2.8 kg |
| Dimensions | 210mm (W) 258mm (H) 105mm (D) |
| Relay outputs | 2 programmable relays| volt free relay contacts (1NO| 1 NC) |
| Memory | 2GB RAM| 8GB eMMC ROM |
| Operation temperature | 20 to +60C |
| Housing | NEMA-4X Fire-retardant FRP enclosure |
| Analog Output | 1 x 4~20mA Current Loop with 12-bit Resolution |
| Sensor life | Sensor life |
| Storage conditions | 10 - 40C |
| Warm up time | 15 minutes (cold start) |
| Operation humidity | 0 - 90%RH| non-condensing |
| Processor | Quad-Core ARM Cortex A-72 |
| Installation method | Wall mount / Pole mount |
| Internal Data Storage | Up to 12 months |
| Device Interface | On-device software| API| Display |
| Display Specification | 6 digit 7 Segment Display |
| Response Time (T90) | Less Than 60 Seconds |
| Signal refresh rate | 5 Seconds |
| Wireless Communications | Global 2G/3G/4G| LoRa| LTE| NB-IoT| Sigfox| Wifi (Any one) |
| Wired Communications | Ethernet| MODBUS TCP| MODBUS RTU| RS-485| CANbus (Any one) |
| Beacon/sounder | Built-in| RED flashing light with alarm sounder 95db @ 1m |
| Weather Protection | Weather Resistant IP66 Enclosure |
Key Features
- Quick sensing for threshold based alerts
- Highly accurate data to detect low ppb concentrations
- Robust built to sustain harsh industrial conditions
- Easy data integrations to match industry standards
- In-built relay operation for automation
- Data transmissions through multiple channels
- Real time data display for keeping a check
Product Description
AQBotTM consists of the NEMA 4X approved enclosure to last long in a harsh industrial environment. It offers allindustry-standard output signals like MODBUS, CANbus, RS-485, RS-232, etc. In addition, the fixed air qualitymonitor can also offer other communication modes like GSM, GPRS, 3G, WiFi, LoRa, Ethernet, etc. The monitor caneasily integrate with existing building monitoring or plant control systems infrastructure. Using such a wide rangeof communication capabilities, AQBotTM enables the Industrial Internet Of Things (IIoT) which is the backbone ofIndustrial Revolution 4.0. Using such a wide range of communication capabilities, AQBotTM enables the IndustrialInternet Of Things (IIoT) which is the backbone of Industrial Revolution 4.
- Siren and strobe for audio and visual alerts
- Effortless installations with versatile mounting arrangement
- On Device Display: Built-in display module to check on-site concentration
- Ultimate Durability: NEMA Certified industrial-grade enclosure made of high-grade engineering composite polymers
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this model is less than 5% FS at 20°C and 50% RH.
It measures 210mm in width, 258mm in height, and 105mm in depth, with a net weight of 2.8 kg.
The operating temperature range is from -20°C to +60°C.
It features 2 programmable relays with volt-free relay contacts, including 1 normally open (NO) and 1 normally closed (NC).
The response time (T90) is less than 60 seconds.
It is equipped with a 6-digit 7-segment display for on-site concentration monitoring.
It can be installed using wall mount or pole mount methods.
The signal refresh rate is 5 seconds.
The recommended storage conditions are between 10°C and 40°C.
The warm-up time for a cold start is 15 minutes.
