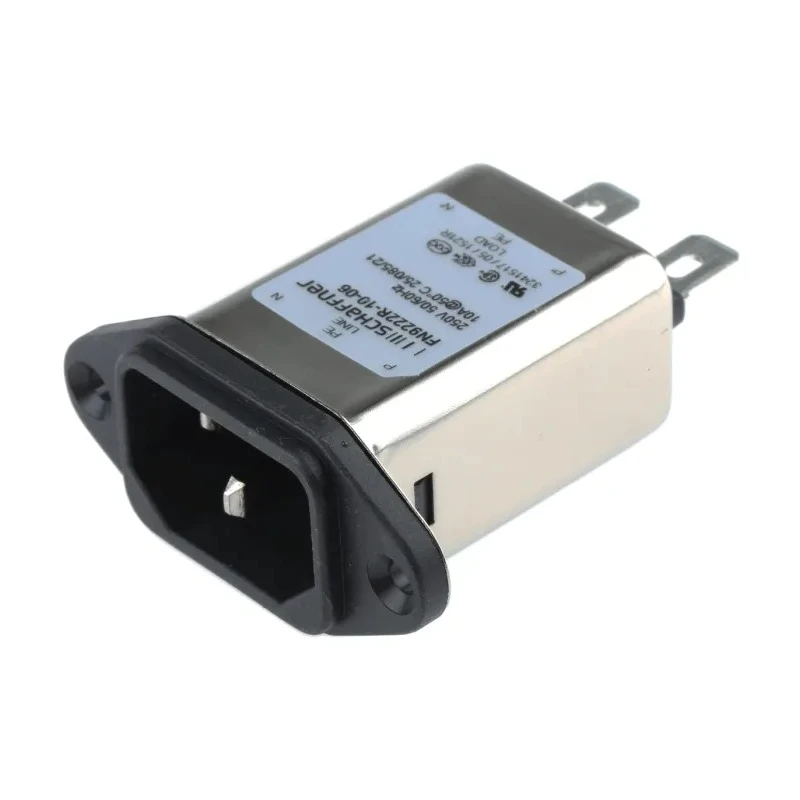

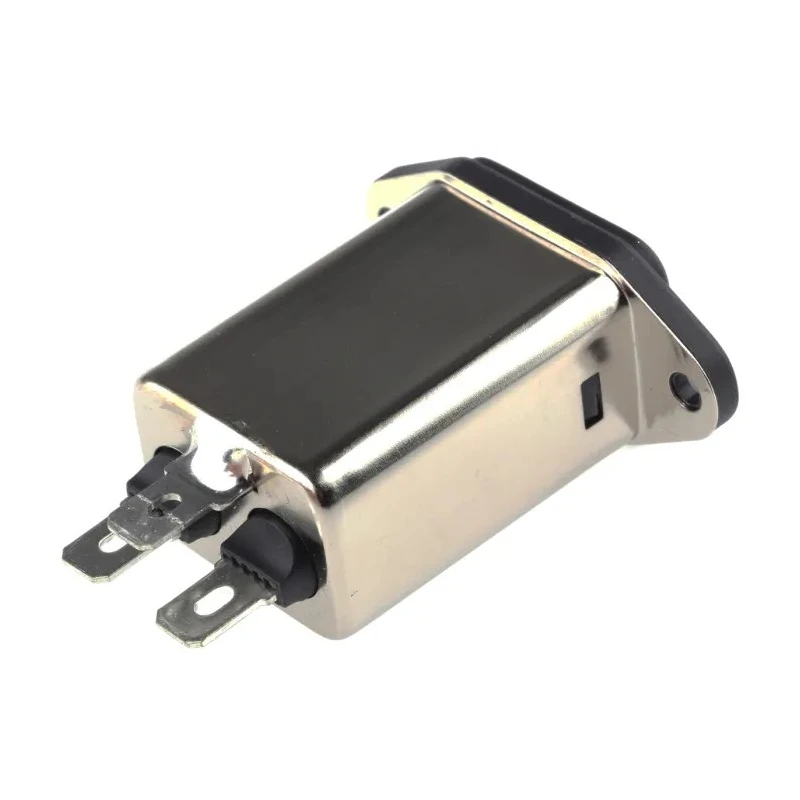

Schaffner 250V AC 10A Flange IEC Filter Male Faston FN9222R-10-06

Schaffner FN9222R-10-06 is a high-performance IEC filter designed for industrial and electronic equipment requiring 250V AC and 10A capability. This male flange mount IEC filter incorporates a Faston termination type and C14 IEC connector, providing excellent durability and secure electrical connections.

The filter features a compact form factor measuring 48mm in height, 22.5mm in width, and 57.9mm in depth, making it suitable for installation in tight spaces. It operates efficiently over frequencies from DC up to 400 Hz, supporting a wide range of applications in power line filtering.

This IEC filter is equipped with a ground bleed resistor to improve safety by stabilizing ground currents. Its specified operating temperature range from -25°C minimum to 85°C maximum ensures reliable performance in demanding environmental conditions.

Schaffner's FN92XX series filters provide advanced EMI suppression with an additional class X2 capacitor between live and neutral at both input and output, fitted within a rugged flange mount case that guarantees mechanical stability.

This product is manufactured in Thailand and adheres to no specific external standards or approvals, designed primarily for high-performance filtering in industrial, laboratory, commercial, and electronic manufacturing environments.

Designed for high performance in a compact size. Operating frequency range from DC to 400 Hz. Features a C14 IEC male connector rated up to 15A. Includes a ground bleed resistor for enhanced safety. Temperature operating range from -25°C to 85°C.

Mount type is flange for secure attachment. High reliability for industrial and electronic applications. Compact dimensions of 48mm height, 22.5mm width, and 57.9mm depth. Explore more industrial electronic components and high-quality IEC Filters at EnvMart to meet your specialized filtering and power connection requirements.
