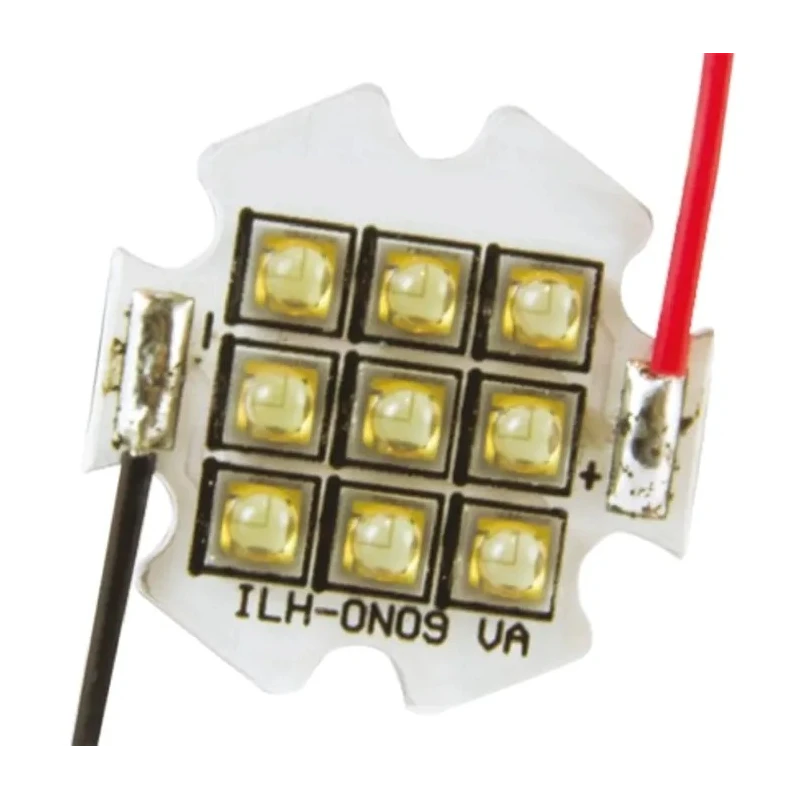

Intelligent LED Solutions OSLON Square 9+ PowerStar 9-LEDs Neutral White LED Array ILH-OO09-NUWH-SC211-WIR200.

Intelligent LED Solutions ILH-OO09-NUWH-SC211-WIR200 is a high-quality OSLON Square 9+ PowerStar LED Array featuring 9 neutral white LEDs that deliver bright, efficient lighting. This LED array is comprised of Osram's latest power chip technology, allowing operation at currents up to 1000mA with low thermal resistance of 7 K/W, ensuring cool running and optimal performance.

The array is compact, measuring just 20mm by 20mm with a height of 3.85mm, and is built on an aluminium substrate to enhance thermal management. Its 9 Oslon SSL Square ThinGan LEDs each come with integral 120° silicone resin lenses for focused light distribution, offering typical luminous flux of 2250 lumens at a neutral white 4000K colour temperature. The unit includes an onboard driver and is pre-wired with 200mm connecting wires for straightforward installation.

This LED array is suitable for diverse lighting applications such as general lighting, decorative and task lighting, spotlights, downlighters, retail lighting, and entertainment lighting. It includes mounting holes compatible with M3 screws to facilitate secure placement.

With a power dissipation of 19.52 watts and an LED voltage rating of 24.3 to 31.5 volts, this product supports constant current output to maintain stable illumination. The solder connection type and RoHS compliance assure reliable operation and adherence to environmental standards.

Precautionary advice recommends mounting the PowerStar LED array on a suitable heat sink to prevent overheating and damage. Using an unlimited current power supply is discouraged to avoid irreparable damage from excessive current flow.

The LED array contains 9 Oslon SSL Square ThinGan LEDs engineered for high performance. Operates at currents up to 1A ensuring consistent luminous output. Typical luminous flux is 2250 lumens with a colour temperature of 4000 Kelvin for neutral white light.

Constructed on an aluminium substrate for optimized thermal management and durability. Power dissipation is rated at 19.52 watts, enabling robust illumination. Compact dimensions of 20mm x 20mm x 3.85mm facilitate versatile installation.

Pre-wired with 200mm wires for ease of integration in lighting systems. Includes onboard driver and secondary optics with 120° silicone resin lenses for improved light distribution. Designed for constant current output with standard solder connection type.

RoHS compliant ensuring environmentally safe manufacturing standards.

Ideal for industrial, commercial, and technical applications including LED arrays for decorative, retail, and entertainment lighting sectors. Use appropriate heat sinks as recommended.
