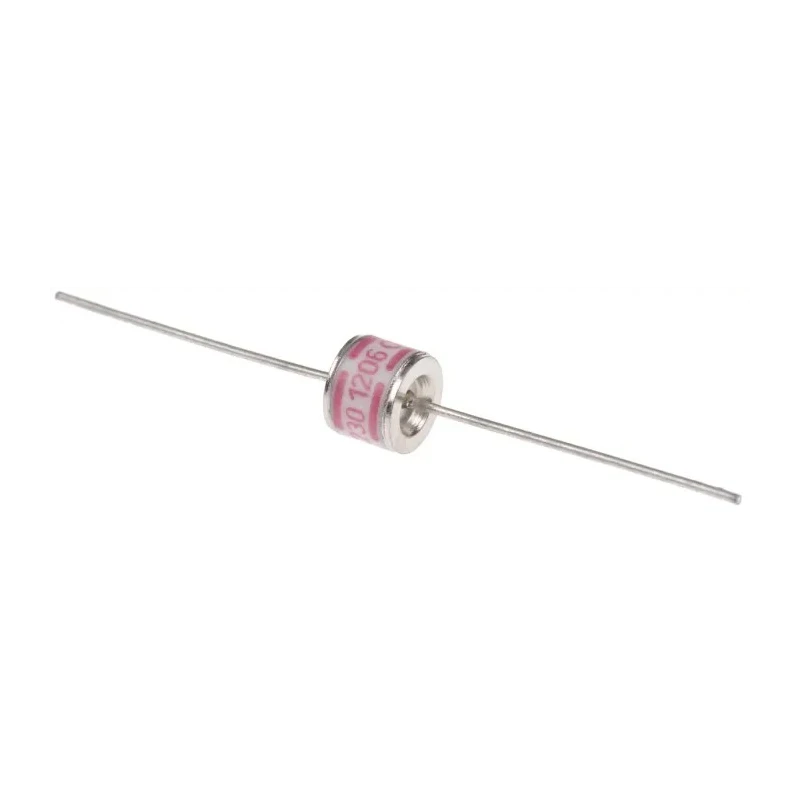

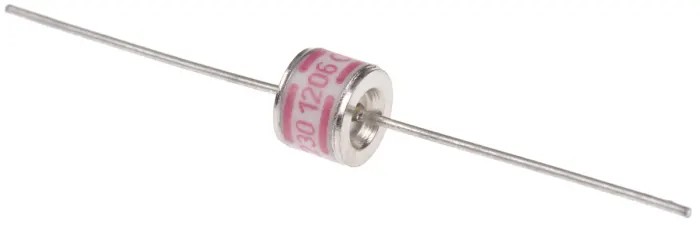

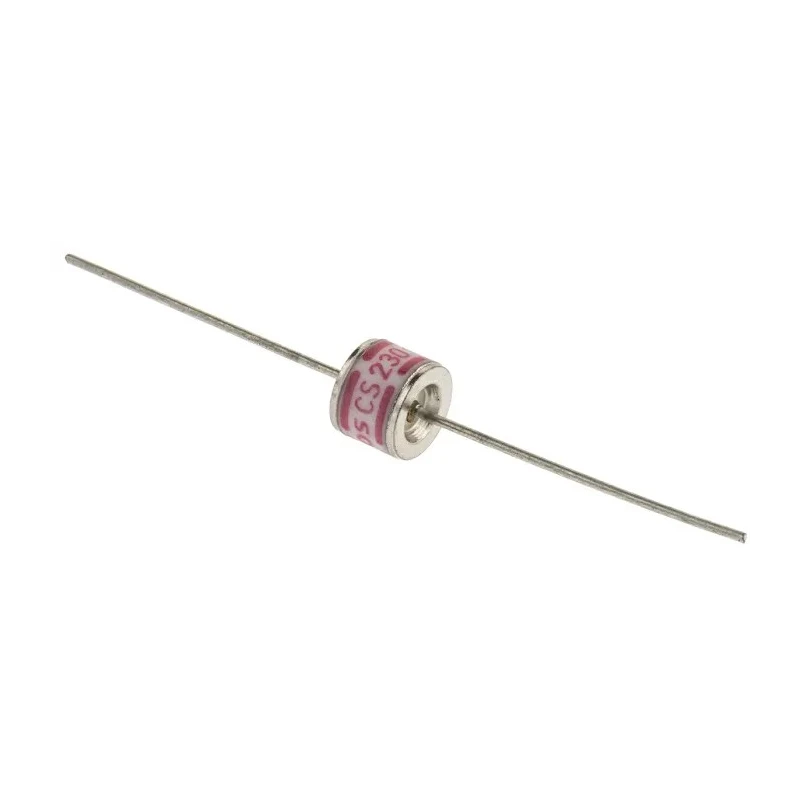

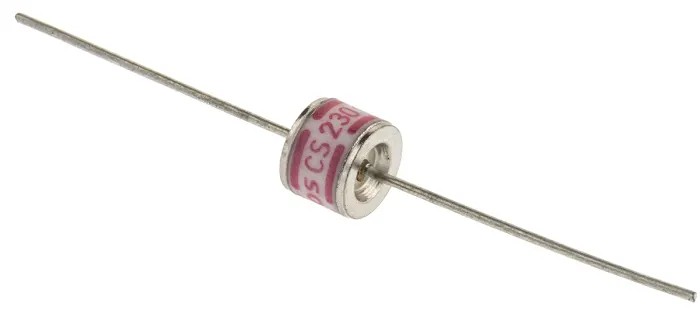

TDK Switching Spark Gap, 230 V Breakdown Voltage, 300 A Peak Current, 25 Hz Max Switching Frequency B88069X0680T502

TDK B88069X0680T502 Switching Spark Gap is a high-quality miniature gas-filled device engineered for voltage controlled switching of capacitive discharge circuits. Featuring a breakdown voltage of 230 V and capable of handling peak currents up to 300 A, it ensures stable and efficient switching performance in electronic and power applications.

Its axial design includes a tube length of 60 mm and diameter of 0.8 mm, making it suitable for integration into compact circuits. The component supports a maximum switching frequency of 25 Hz, accommodating fast switching requirements while maintaining low energy loss.

Operating reliably within temperature ranges from -20°C to 125°C, the device is ideal for environments that demand wide thermal tolerance. Its impulse spark over voltage rating of 225 V further assures operational stability in surge conditions. Compliance with RoHS standards confirms the product meets stringent environmental and safety regulations.

Commonly utilized in gas heating, gas appliance control, and protection of xenon discharge lamps in architectural and automotive fields, this spark gap offers long service life and robust design for industrial and commercial electronic circuit protection.

Operates at 230 V breakdown voltage. Supports peak current of 300 A. Maximum switching frequency up to 25 Hz. Robust miniature gas-filled axial construction. Wide operating temperature range of -20°C to 125°C. Impulse spark over voltage is 225 V.

Compact dimensions: 60 mm overall length, 0.8 mm tube diameter. RoHS compliant for environmental safety. Designed for durable and stable performance.

This TDK Switching Spark Gap B88069X0680T502 is suited for industrial, electronic, and power management applications involving capacitive discharge circuits. It provides accurate, stable switching essential for surge protection and high-voltage pulse generation.
