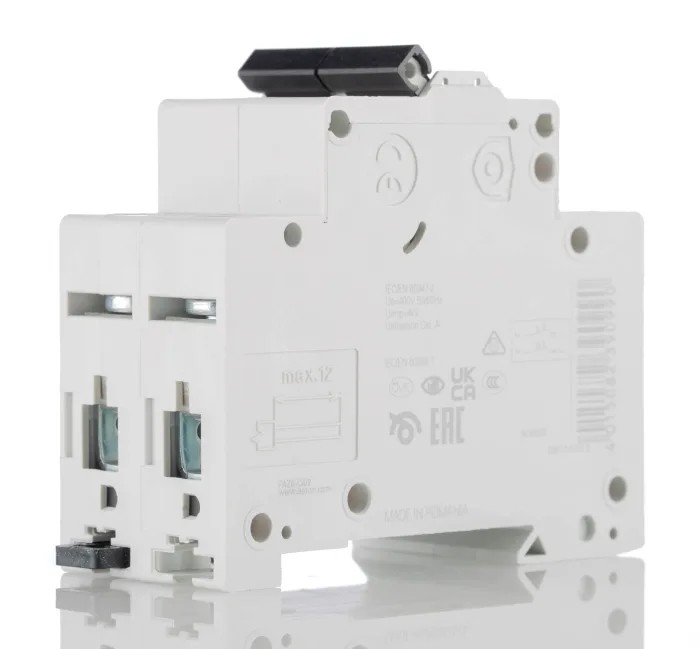

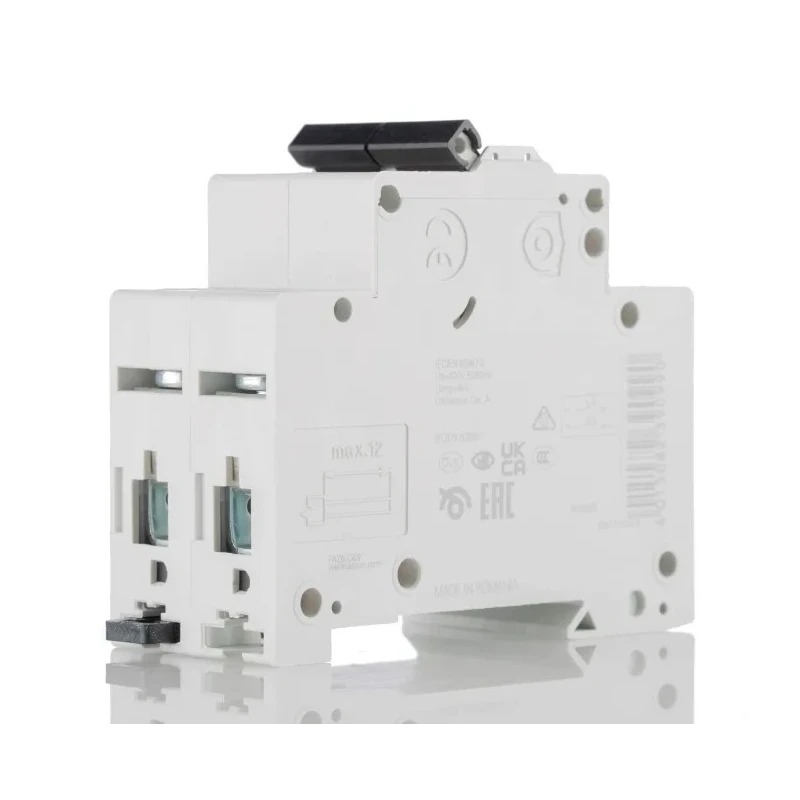

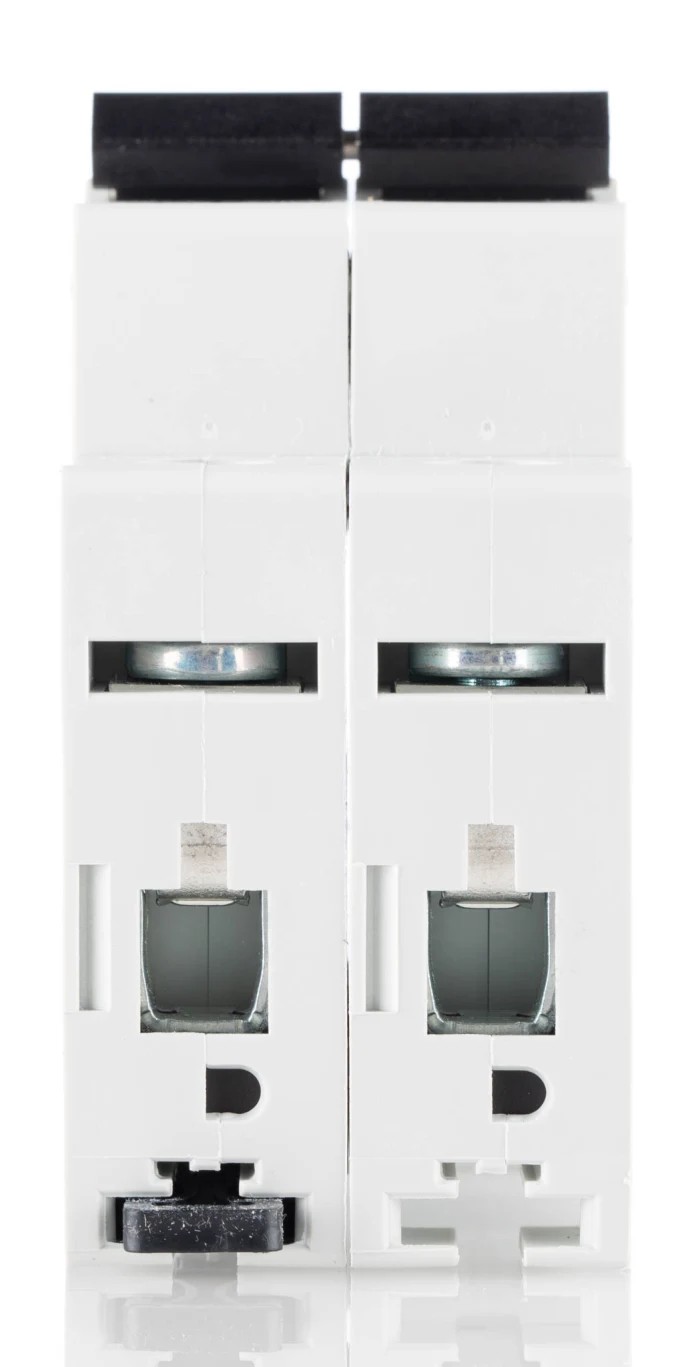

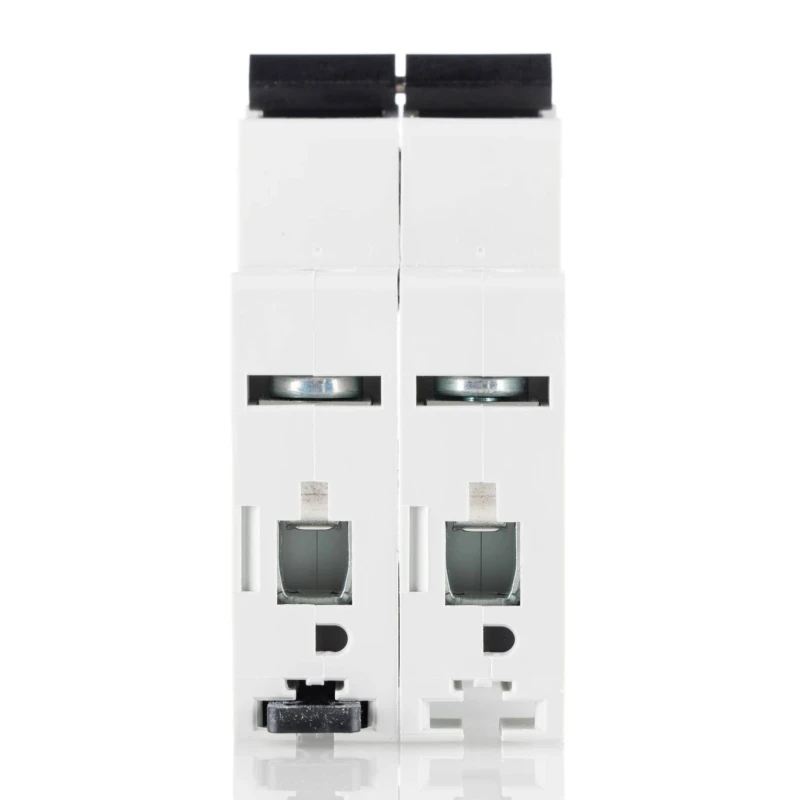

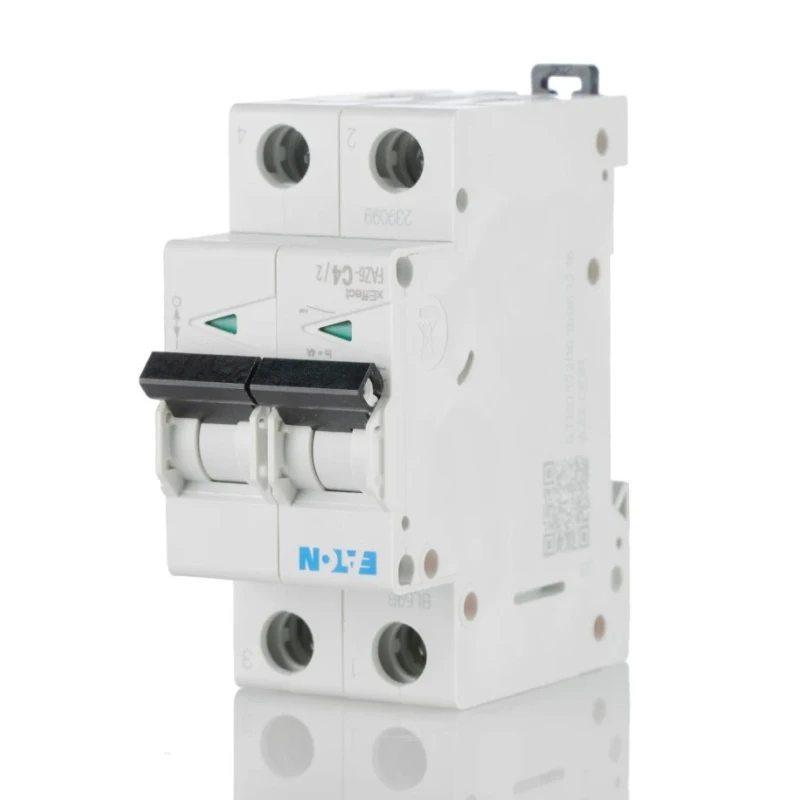

RS PRO xEffect Miniature Circuit Breaker 2-Pole 4A Type C 400V AC 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | RS PRO |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| 2 pole type C circuit breaker,6kA 4ABrand | Moeller |
Key Features
- Thermal-magnetic tripping mechanism ensures fast response to overloads and short circuits.
- Type C tripping curve suitable for moderate inrush current applications such as lighting circuits.
- Suitable for use in control circuits and electrical distribution boards.
- Durable plastic housing with IP20 rating provides finger-safe protection.
- DIN rail mounting compatibility for compact and secure installation.
- Front toggle switch clearly indicates ON/OFF status enhancing safety.
- Trip-free mechanism prevents manual override during faults.
- 6 kA breaking capacity reduces damage from short-circuit energy.
Product Description
Eaton FAZ6 Miniature Circuit Breaker 2-Pole 4A Type C at 400V AC with 6 kA breaking capacity is designed for dependable electrical circuit protection in industrial and commercial applications.
This compact MCB utilizes a thermal-magnetic tripping mechanism combining thermal response for overload protection and electromagnetic action for instantaneous short circuit interruption. The type C trip curve allows the device to handle moderate inrush currents typical in lighting and motor starting circuits without nuisance trips.
Featuring an IP20 rated durable plastic housing, the breaker is finger-safe and resistant to corrosion, suitable for installation in electrical distribution boards and control panels. The front toggle switch provides clear ON/OFF indication to assist operators in circuit management. Mounting is simplified by the DIN rail compatibility and 3-position guide ensuring secure and easy installation in restricted spaces.
The trip-free mechanism ensures that the breaker cannot be held ON manually during a fault, reducing risk to electrical installations and personnel by ensuring fast and automatic disconnection from power. With a 6 kA breaking capacity, this MCB limits the let-through electrical energy during short circuits, protecting sensitive electrical equipment from damage.
Applications include industrial machinery protection, commercial lighting, and general electrical distribution systems. Eaton’s xEffect series MCBs provide reliable circuit protection with easy installation and maintenance.
Thermal-magnetic tripping mechanism ensures fast response to overloads and short circuits. Type C trip curve supports moderate inrush current protections common in lighting circuits. IP20 rated durable plastic housing for finger-safe operation and corrosion resistance.
DIN rail mounting with 3-position guide simplifies installation in control panels. Front toggle switch with clear ON/OFF status indication for operational safety. 6 kA breaking capacity limits damage from short circuits and electrical faults.
Trip-free mechanism prevents manual override maintaining safety during faults.
Environmentally suitable for industrial, commercial, and HVAC electrical applications needing dependable circuit protection. Explore Eaton products and xEffect MCBs at EnvMart for quality assured electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, which limits damage from short-circuit energy.
It is rated for 400V AC, making it suitable for various electrical applications.
This miniature circuit breaker utilizes a thermal-magnetic tripping mechanism for fast response to overloads and short circuits.
The dimensions are 62mm in depth and 17.5mm in width, allowing for compact installation.
This model is a 2-pole circuit breaker, suitable for various electrical distribution needs.
The housing has an IP20 rating, providing finger-safe protection and resistance to corrosion.
It has a Type C tripping characteristic, which is suitable for moderate inrush current applications such as lighting circuits.
Yes, it is designed for DIN rail mounting, simplifying installation in control panels and electrical distribution boards.
It features a toggle switch as the reset actuator, providing clear ON/OFF status indication.
It is suitable for industrial machinery protection, commercial lighting, and general electrical distribution systems.
The country of origin for this model is India.
The current rating of this unit is 4A, making it suitable for specific circuit protection needs.
