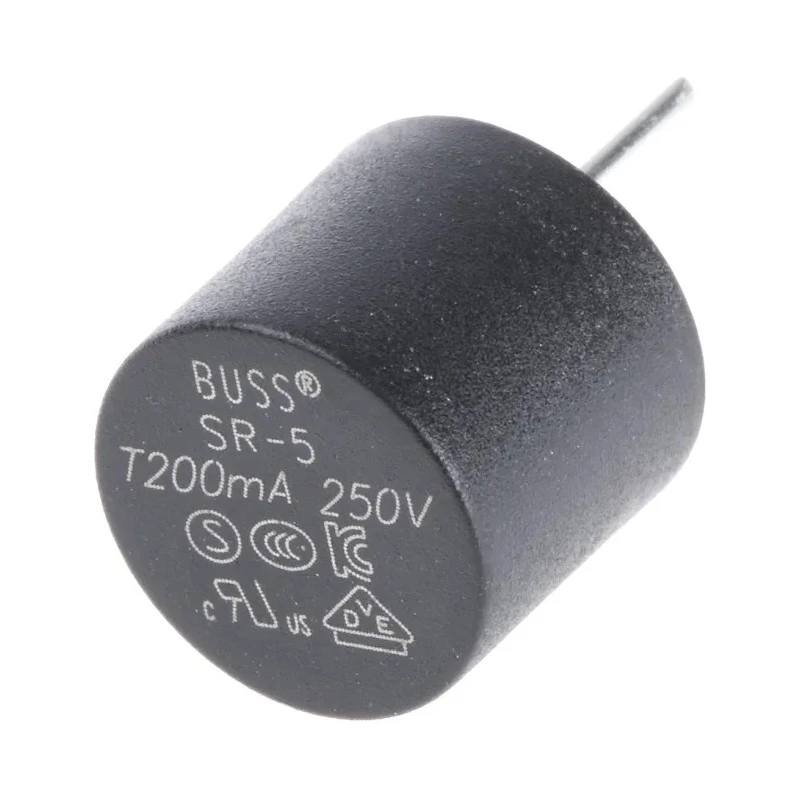

Eaton Non-Resettable Fuse Radial 200mA 250V AC Time Delay SR-5-200MA-BK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 7.6mm |
| Length | 7.37mm |
| Model | SR-5-200MA-BK |
| Width | 8.5mm |
| Current Rating | 200mA |
| Series | SR5 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 35A |
| Lead Diameter | 1mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- Current rating of 200mA suitable for precise protection.
- Radial lead orientation simplifies PCB mounting.
- Time delay fuse characteristics for high inrush currents tolerance.
- Operating temperature range from -40°C to 85°C.
- Thermoplastic polyamide body withstanding soldering heat up to 260°C.
- Breaking capacity of 35A for reliable circuit interruption.
- Compact dimensions with 8.5mm diameter and 7.37mm length.
- Complies with RoHS, PSE, VDE, IEC 60127-3, and IEC 60068-2-20 standards.
Product Description
Eaton SR-5-200MA-BK non-resettable fuse is a radial, time-delay subminiature fuse designed for precise overcurrent protection on printed circuit boards. Rated at 200mA and 250V AC, this fuse offers high reliability in electronic applications requiring dependable circuit protection.
The radial lead orientation facilitates easy PCB mounting and integration within electronic assemblies. Its thermoplastic polyamide body provides excellent soldering heat resistance up to 260°C, enabling compatibility with leaded and lead-free wave and reflow soldering processes.
Operating efficiently within a temperature range from -40°C to 85°C, the fuse resists environmental stresses while delivering high inrush current tolerance due to its time delay characteristics. The robust breaking capacity of 35A ensures dependable interruption during fault conditions.
Its compact dimensions (8.5mm diameter, 7.37mm length, 7.6mm height) make it ideal for space-constrained circuit designs. The fuse adheres to international standards including RoHS, PSE, VDE, IEC 60127-3, and IEC 60068-2-20, certifying its quality and safety.
This Eaton radial Non-Resettable Fuse is well-suited for primary and secondary overcurrent protection across various electronic devices and PCB applications, delivering outstanding performance and durability for industrial, manufacturing, and laboratory electronics.
Current rating of 200mA suitable for precise protection. Radial lead orientation simplifies PCB mounting. Time delay fuse characteristics for high inrush currents tolerance. Operating temperature range from -40°C to 85°C.
Thermoplastic polyamide body withstanding soldering heat up to 260°C. Breaking capacity of 35A for reliable circuit interruption. Compact dimensions with 8.5mm diameter and 7.37mm length. Complies with RoHS, PSE, VDE, IEC 60127-3, and IEC 60068-2-20 standards.
Suitable for electronic applications and PCB circuits. Explore the comprehensive range of Eaton circuit protection products and other related items available on EnvMart for industrial and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this fuse is 200mA, suitable for precise overcurrent protection.
It has a breaking capacity of 35A, ensuring reliable circuit interruption during fault conditions.
The operating temperature range is from -40°C to 85°C, allowing it to function effectively in various environmental conditions.
This fuse has a diameter of 8.5mm, a length of 7.37mm, and a height of 7.6mm.
It features a radial lead orientation, which simplifies PCB mounting and integration.
The thermoplastic polyamide body of the fuse can withstand soldering heat up to 260°C, making it compatible with various soldering processes.
This fuse complies with RoHS, PSE, VDE, IEC 60127-3, and IEC 60068-2-20 standards, ensuring its quality and safety.
The time delay characteristics allow for high inrush current tolerance, making it suitable for applications with such requirements.
The lead length is 4.3mm, and the lead diameter is 1mm.
It is well-suited for primary and secondary overcurrent protection across various electronic devices and PCB applications.
The voltage rating is 250V AC, making it applicable for use in AC circuits.
This fuse belongs to the SR5 series, which is designed for reliable circuit protection in electronic applications.
