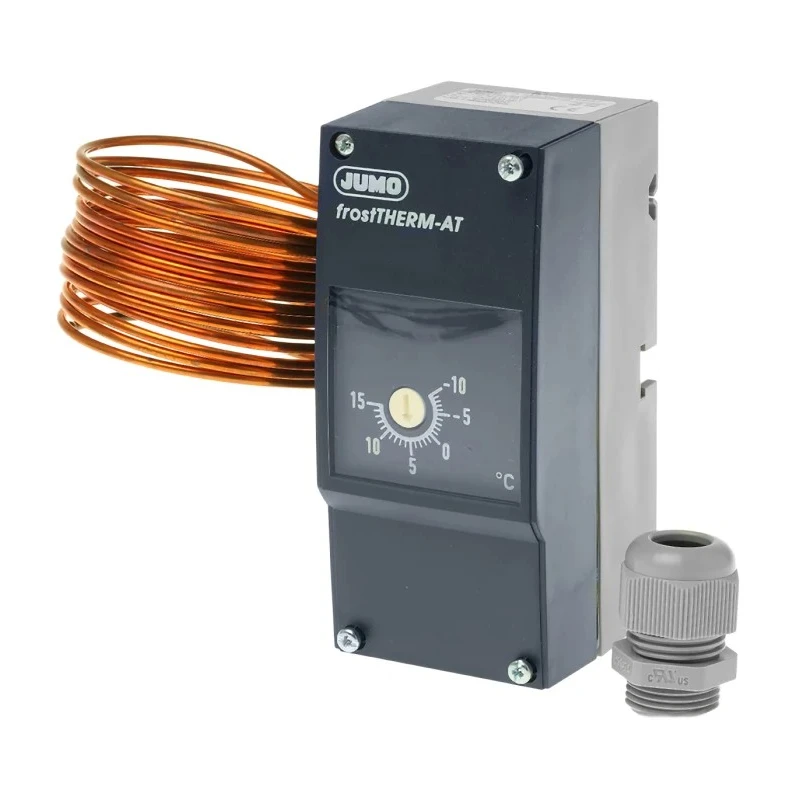

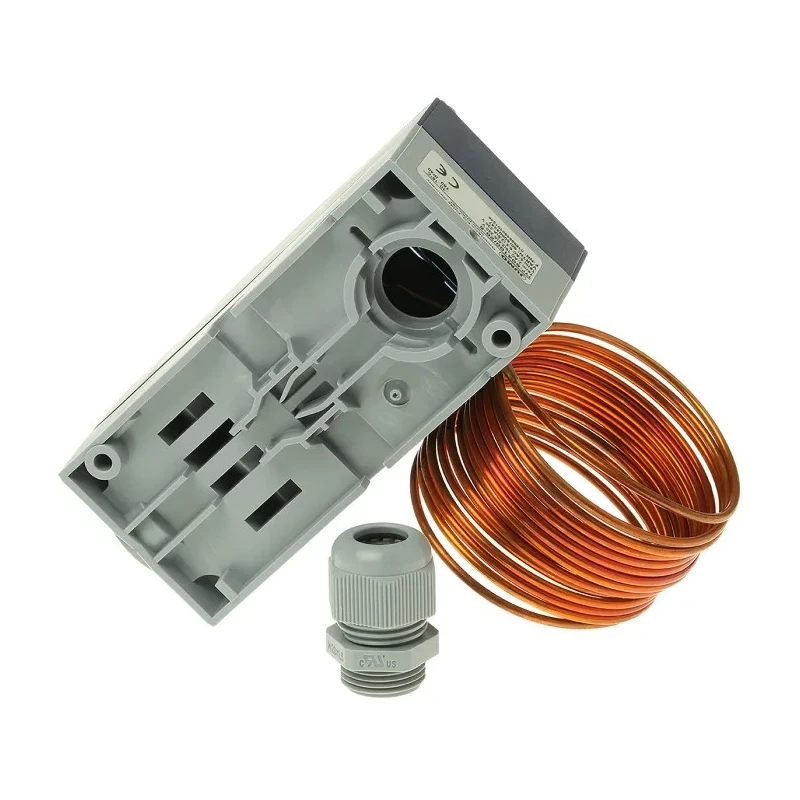

Jumo Capillary Thermostat Wall Mount 1P 16 A 230 V AC, +15 °C Max frostTHERM-AT/-DR 604100/20-5-140-3000-0-40/000

Free Delivery in India | Lowest Global Shipping Charges

Jumo Capillary Thermostat Wall Mount 1P 16 A 230 V AC, +15 °C Max frostTHERM-AT/-DR 604100/20-5-140-3000-0-40/000

Name: Jumo Capillary Thermostat Wall Mount 1P 16 A 230 V AC, +15 °C Max frostTHERM-AT/-DR 604100/20-5-140-3000-0-40/000
Brand: JUMO
SKU: 228660
Price: 189.54 USD
Availability: InStock



Category Thermostatic Switch Brand JUMO Condition New

Specifications

Country of Origin	Germany
Brand	Jumo
Model	604100/20-5-140-3000-0-40/000
Mount Type	Wall Mount
Series	frostTHERM-AT/-DR
Maximum Operating Temperature	+15°C
Contact Configuration	1P
Minimum Operating Temperature	-10°C
Terminal type	Push-in
Thermostat Type	Capillary
Standards/Approvals	EN 60529
Contact DC Voltage	230V dc
Contact AC Voltage	230V ac
Contact Current	16A
Switch Function	CO
Maximum switching capacity	16 A, 230 V
Probe lead length	3000 mm or 6000 mm

Key Features

The thermostat supports push-in terminal connection technology for reduced installation time.
It is suitable for wall mounting with a frostTHERM-AT/-DR series design.
Maximum switching capacity is 16 A at 230 V AC, ensuring robust operation.
The device is rated for 230 V AC and 230 V DC contact voltage.
Build certified to EN 60529 standard with IP40/IP65 ingress protection options available.
The product includes a 3000 mm or 6000 mm probe lead length for flexible installation.
Designed primarily for frost protection in ventilation and air conditioning systems.
Manufactured in Germany, ensuring high-quality European standards.

Product Description

Jumo 604100/20-5-140-3000-0-40/000 is a capillary thermostat designed for wall mounting applications, delivering reliable frost protection with a maximum operating temperature of +15 °C and a 1P contact configuration. This thermostat is part of the frostTHERM-AT/-DR series, primarily used to safeguard temperature-sensitive ventilation and air conditioning systems against frost damage.

The thermostat features push-in connection technology, significantly reducing installation time by up to 50%. It supports a maximum switching capacity of 16 A at 230 V AC, suitable for many industrial and commercial HVAC applications. Both AC and DC contact voltages are rated at 230 volts, allowing versatile electrical integration.

With ingress protection conforming to EN 60529 standards, this model is available in IP40 and IP65 ratings to suit different environmental requirements. The long probe lead lengths of 3000 mm or 6000 mm offer flexible placement options to ensure precise temperature measurement and control. Its robust build quality is aligned with German manufacturing standards, providing durability and long service life.

Ideal for applications in industrial HVAC, refrigeration, laboratory environments, and other settings where frost prevention is crucial, this thermostat offers dependable performance and ease of installation. The wall mount design enhances accessibility and integration within control panels or mounted enclosures.

The thermostat supports push-in terminal connection technology. Compatible with ventilation and air conditioning systems for frost protection. Maximum contact current rating is 16 A at 230 V AC. Available with IP40 or IP65 ingress protection ratings.

Probe lead length options include 3000 mm and 6000 mm. Compliant with EN 60529 ingress protection standard. Constructed to German quality standards and manufactured in Germany. Explore more thermostats and related products in the Heater Thermostat & Heating Devices category on EnvMart for diverse industrial and commercial applications.
