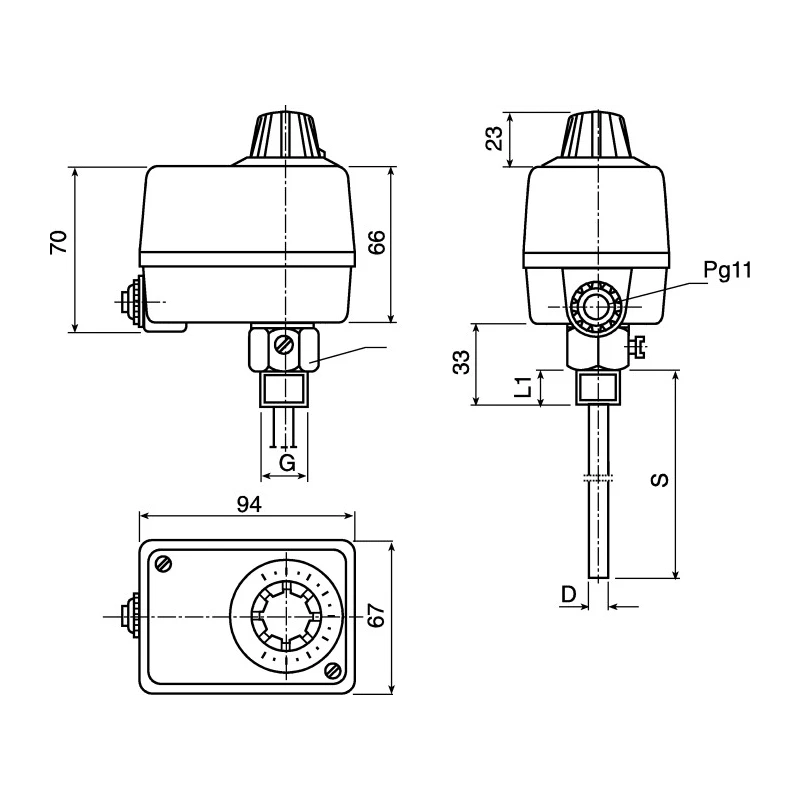

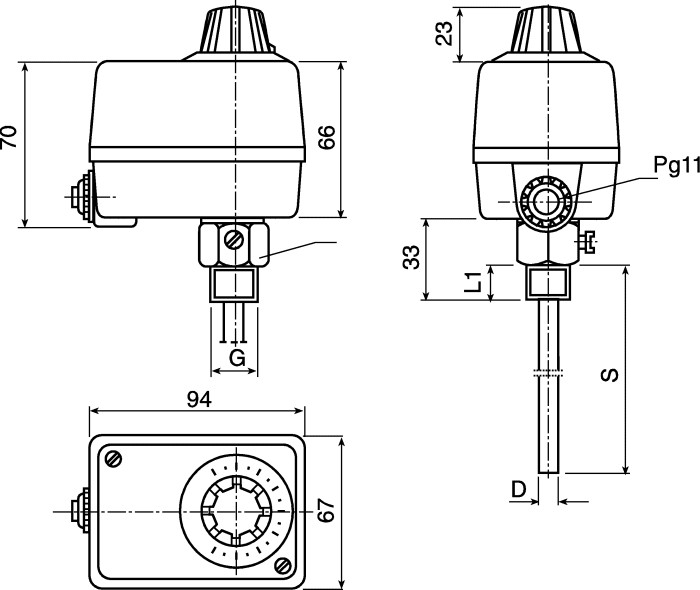

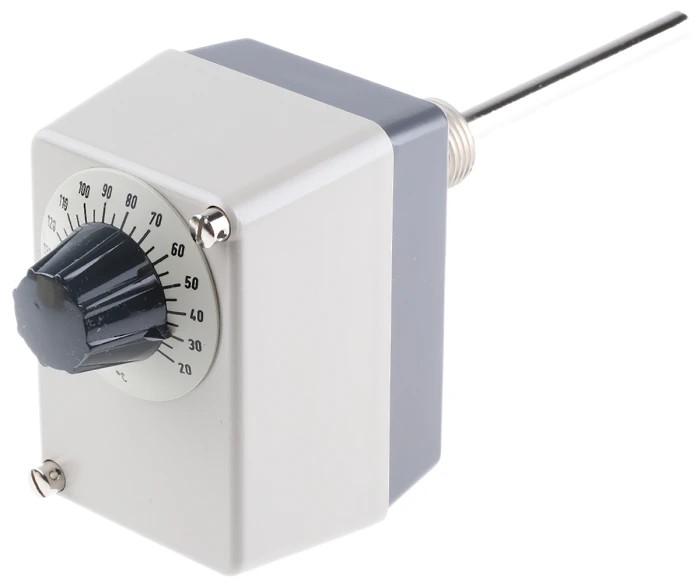

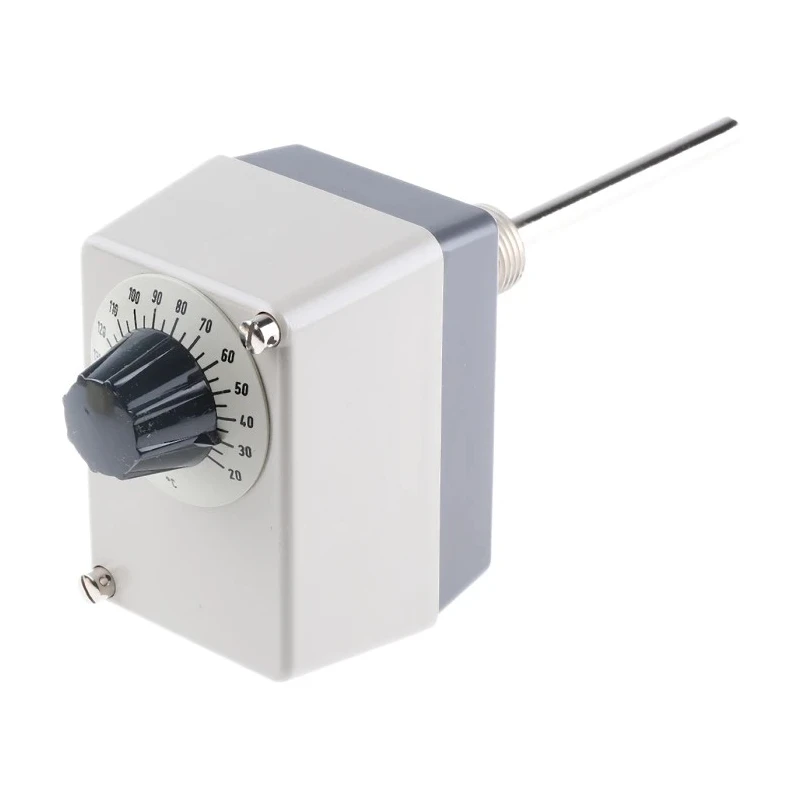

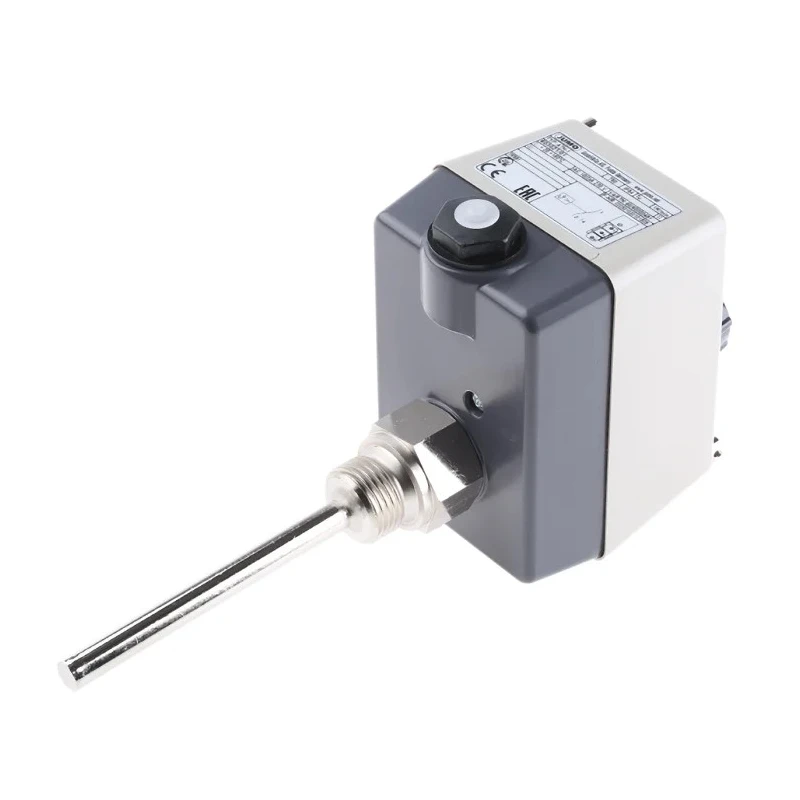

Jumo Capillary Thermostat, 150 °C Max, Manual Reset, 1 NO/1 NC, 10 A, Surface 603021/01-1-043-30-0-00-20-13-46-100-8-6/000

Jumo 603021/01-1-043-30-0-00-20-13-46-100-8-6/000 Capillary Thermostat is a precision thermostatic switch designed for reliable temperature monitoring and control in industrial and electrical automation applications. It operates on the principle of volume expansion, where temperature increase inside the capillary probe causes expansion, elevating a diaphragm to actuate the microswitch with manual reset capability.

This thermostat features a surface mount design with solder tab terminals for straightforward installation on relevant equipment. The contact configuration provides 1 normally open (NO) and 1 normally closed (NC) switching contact capable of handling 10 A current at both 230 V AC and DC voltages. The thermostat is IP54 rated, offering protection against dust ingress and water spray, making it suitable for harsh environments.

The operating temperature range spans from 20°C minimum to 150°C maximum, ensuring it meets requirements for heater thermostat and heating device applications. It includes a differential setting of 3-4% for precise temperature control or monitoring functions. The ATH series variations include options for external or internal temperature setpoint adjustment using screw-in pockets, enhancing customization for specific uses.

This device finds industrial use in electrical automation, HVAC systems, manufacturing equipment, and laboratory instruments requiring robust and accurate temperature switching controls. The manual reset feature assures safety by requiring user intervention after a trip to prevent unintended automatic resets.

Installation is optimized by the surface mount design with compact build and secure mounting options. This model does not hold hazardous area certifications or standards approvals but is designed with industrial performance in mind.

Operates utilizing volume expansion in the capillary probe for accurate switching. Manual reset type provides safety and control for temperature regulation. Single pole double throw (SPDT) 1 NO/1 NC contact system rated at 10 A.

Capable of switching 230 V AC and DC voltages. IP54 rated design ensures protection in dusty and wet environments. Differential control of 3-4% enhances temperature monitoring accuracy. Surface mount form factor with solder tab terminals for ease of installation.

Applicable across industrial automation, HVAC, laboratory, and manufacturing systems. Part of the ATH series with temperature adjustment options available. Explore additional Thermostatic Switches in the Electronics & Electricals category at EnvMart for diverse industrial applications.
