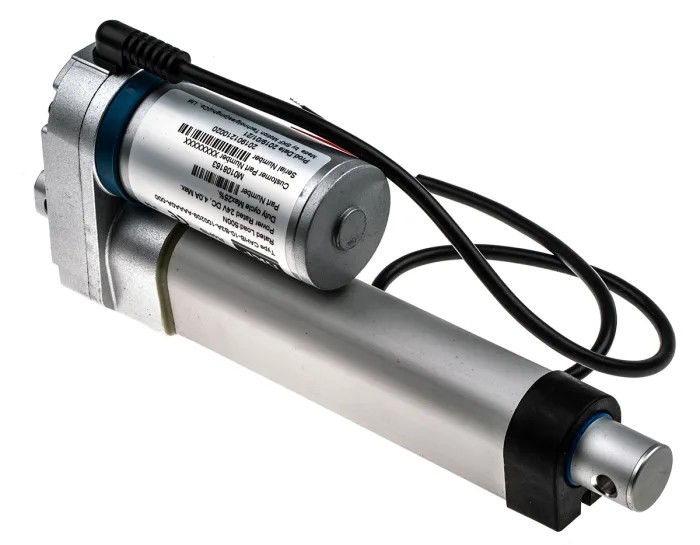

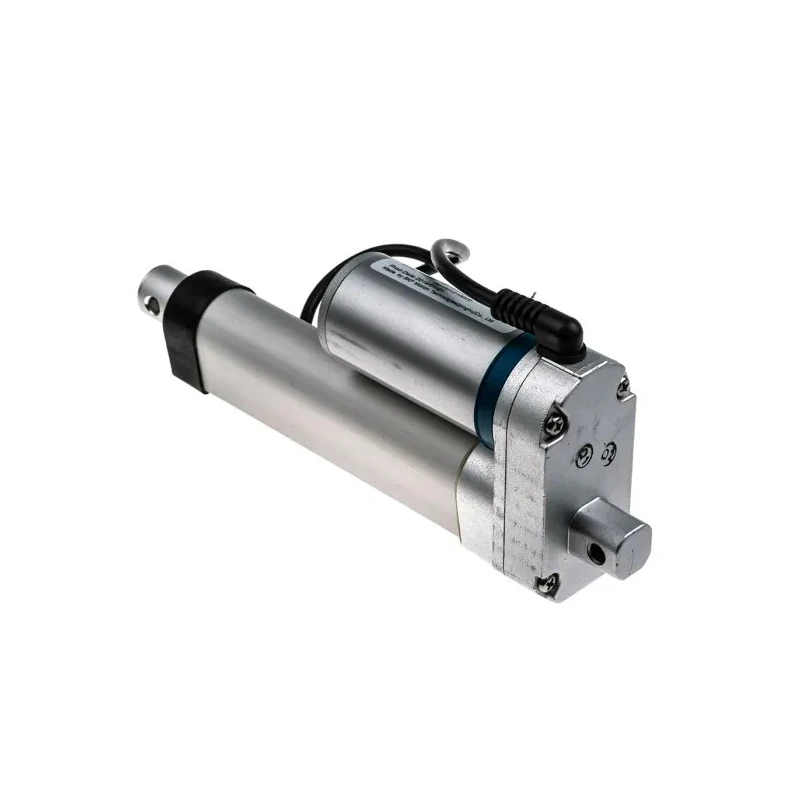

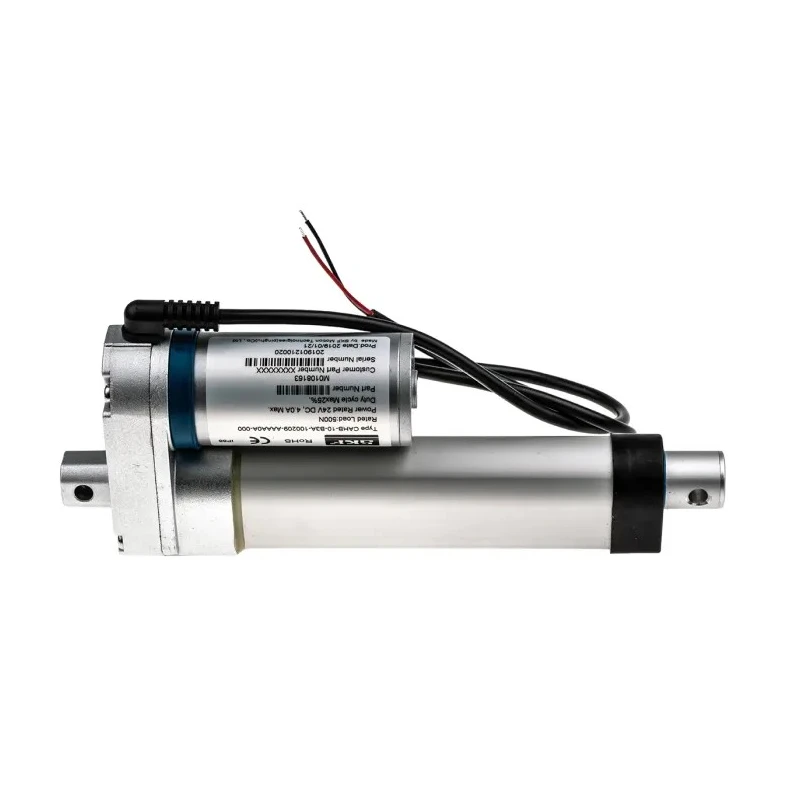

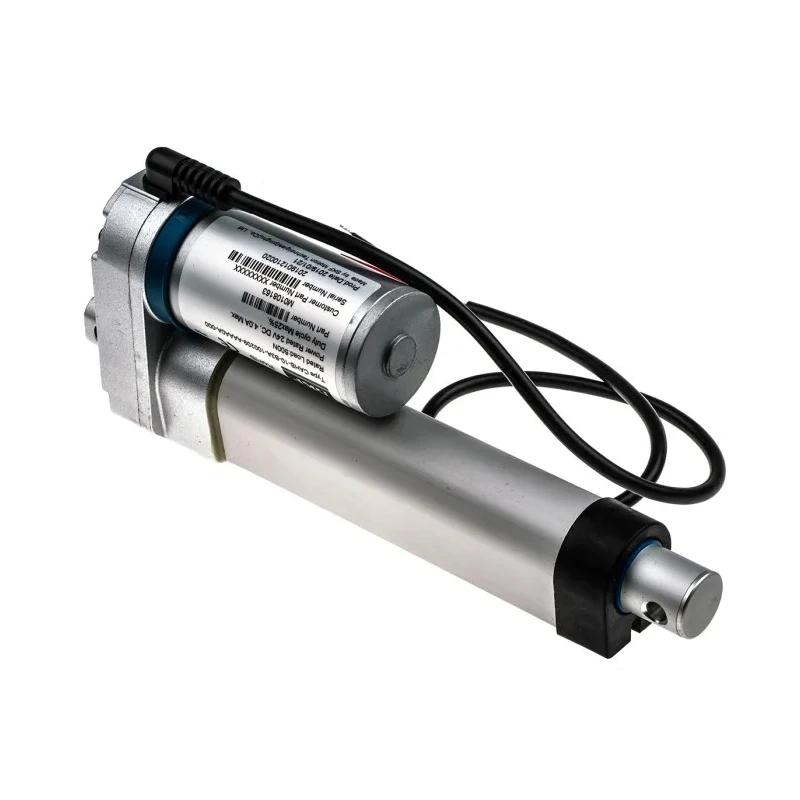

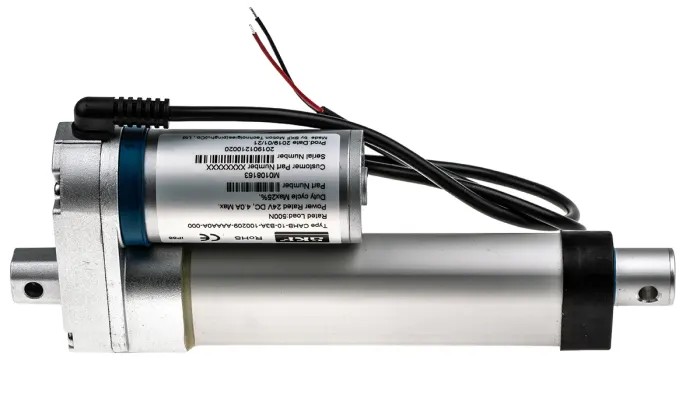

Ewellix Makers in Motion Miniature Electric Linear Actuator 24V DC 500N Max Load 100mm Stroke CAHB-10-B3A-100209AAA000-000

Ewellix Makers in Motion CAHB-10-B3A-100209AAA000-000 is a miniature electric linear actuator designed for industrial and mechanical power transmission applications. It features a robust 24V DC motor delivering a maximum force of 500N and a stroke length of 100mm. The actuator’s screw drive mechanism ensures efficient and smooth linear motion at speeds up to 16mm/s.

Engineered for versatility, this actuator can be mounted vertically or horizontally, making it suitable for diverse setups such as sliding, lifting, or tilting parts in automation systems. The self-locking feature guarantees user safety by maintaining actuator position without continuous power.

With an IP66S rating, the actuator is protected against dust ingress and powerful water jets, suitable for harsh industrial environments. It withstands temperatures ranging from -40°C up to 85°C, making it robust for a wide array of industrial, manufacturing, food & beverage, pharmaceutical, and highway maintenance equipment applications.

The TR12 screw spindle provides durable and precise linear movement, while lubricated parts offer extended operational lifespan with minimal maintenance. The actuator’s DC motor technology combines energy efficiency with reliable performance, meeting RoHS standards and manufacturing quality requirements.

This product is ideally used to automate hard-to-access openings, such as doors or windows, and can be integrated into systems requiring controlled linear motion for process automation or material handling.

Equipped with a durable DC motor providing efficient mechanical actuation. 100mm stroke length enables precise linear movement in various applications. Maximum load capacity of 500N allows it to push, lift, or slide objects effectively.

Maximum speed of 16mm/s helps accomplish fast and controlled motion. IP66S rating offers high protection against dust and water ingress. Self-locking mechanism ensures safety by holding position when motion stops. Wide operating temperature range from -40°C to +85°C for industrial versatility.

Lubricated components extend service life and reduce maintenance needs. Screw drive spindle type TR12 provides reliable and precise actuation. Ideal for vertical or horizontal installation to suit multiple system orientations.
