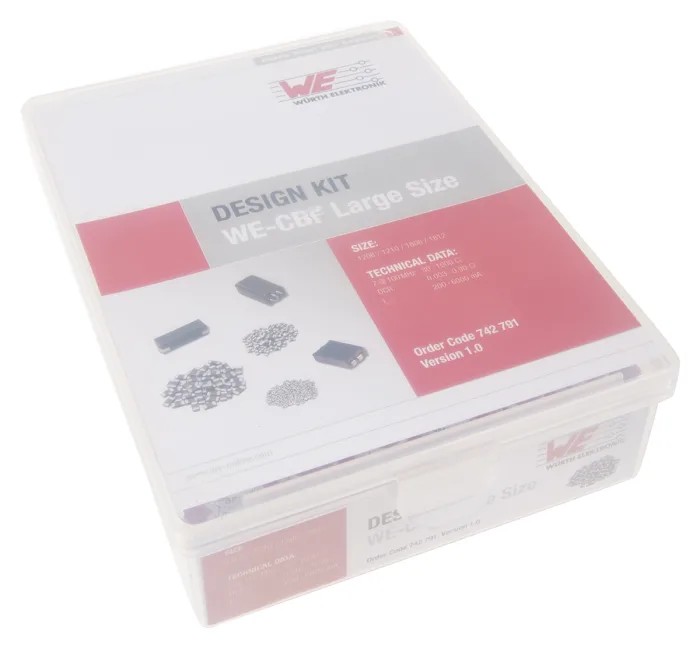

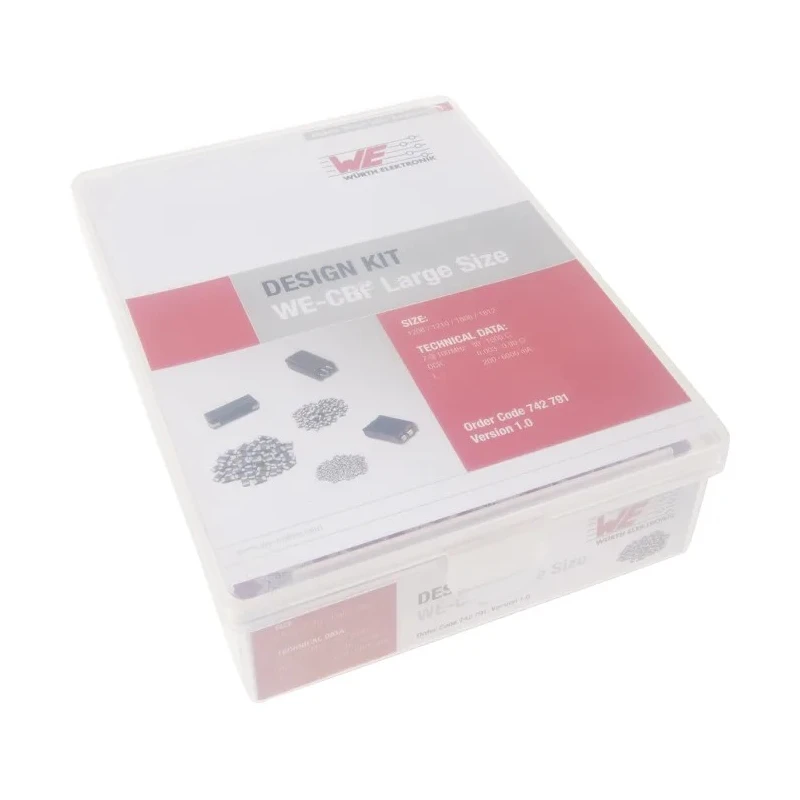

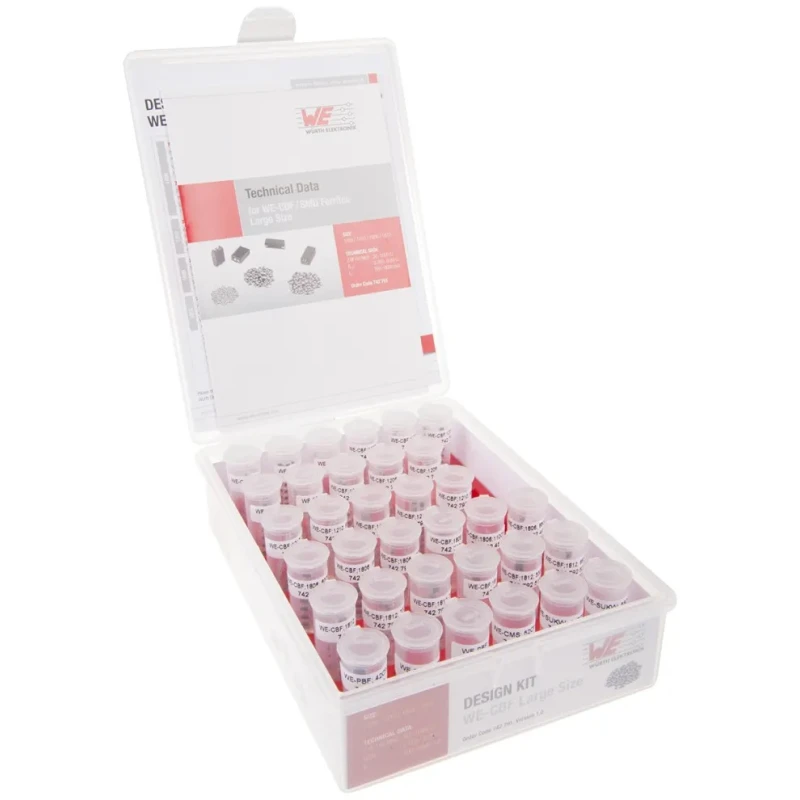

Wurth Elektronik SMD Ferrite Kit High Current Wide Band Operating Temperature -55 °C to +125 °C 742791

Wurth Elektronik 742791 SMD Ferrite Kit is a comprehensive set of SMD ferrite beads designed to suppress electromagnetic interference and improve signal integrity on printed circuit boards. It operates efficiently over a wide temperature range from -55 °C to +125 °C, catering to demanding industrial and electronic applications.

This kit features the WE-CBF series, which comprises small-sized chip bead ferrites that offer low DC resistance and high anti-EMI efficiency. The inclusion of multiple package sizes such as 1206, 1210, 1806, and 1812 ensures flexibility for various board layouts and designs.

The ferrites are constructed with reliable Ni-Sn electrodes and support high current ratings up to 6 A, making them suitable for power supply lines and high-speed data interfaces.

Applications include high-speed data lines like USB 2.0, IEEE 1394, and LVDS, wide bandwidth signals including control signals, RS232, RS422, DC/DC converters, and other mixed signal circuits. The low impedance at low frequencies for certain ferrites and high impedance at higher frequencies makes this kit versatile for wideband EMI suppression.

The kit also contains WE-PBF power ferrite beads, WE-CMS common mode beads, and WE-SUKW 6 hole ferrite beads, expanding the utility to common mode noise filtering and power line applications.

Includes WE-CBF series SMD chip bead ferrites for direct PCB placement. High rated current ferrites support up to 6 A continuous current. Operating temperature range from -55 °C to +125 °C for harsh environments. Wide band EMI suppression suitable for control signals and data lines.

Includes power ferrite beads and common mode ferrite beads for diverse applications. Recommended for reflow soldering processes.

This kit is ideal for industrial electronics, consumer devices, communication equipment, and power supply units requiring efficient EMI filtering and noise suppression. It provides engineers with a versatile selection of ferrite beads to optimize signal quality and electromagnetic compatibility.
