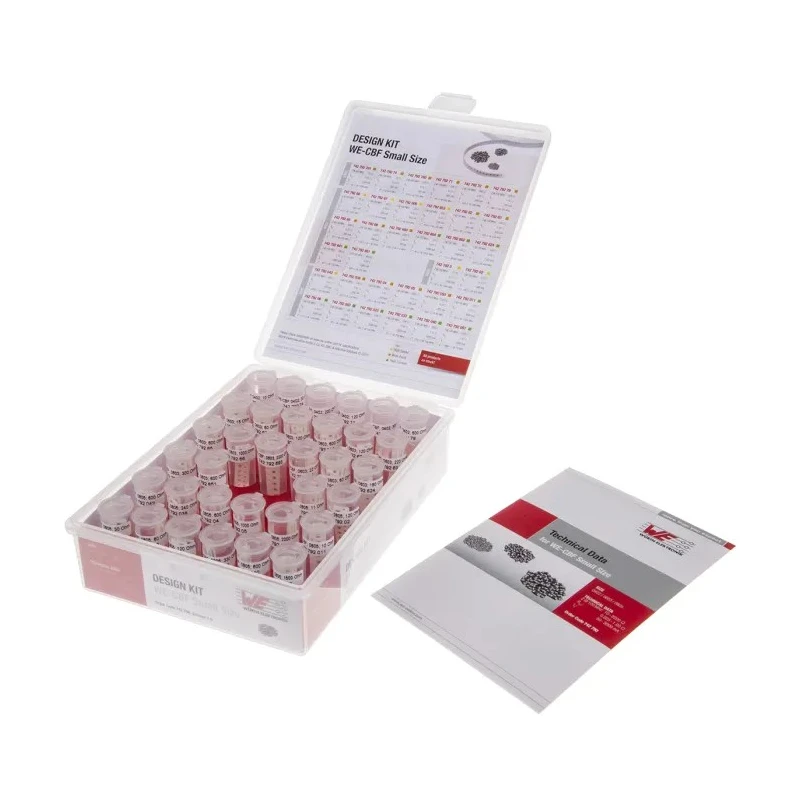

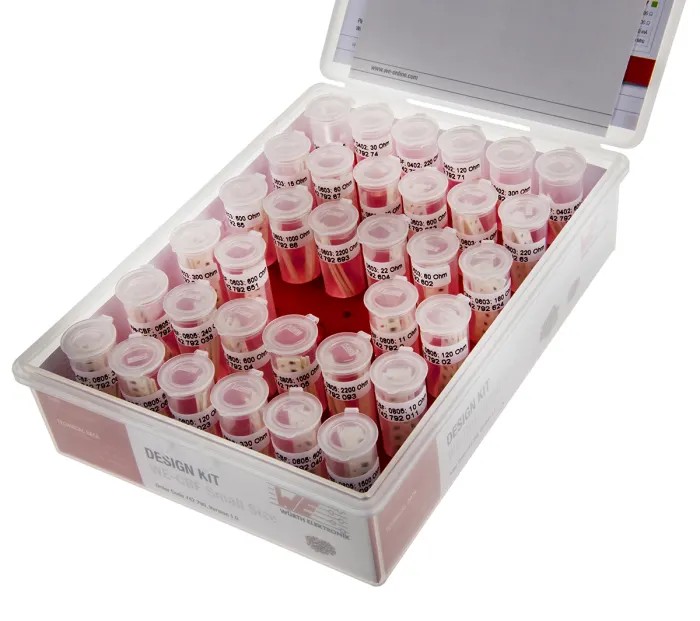

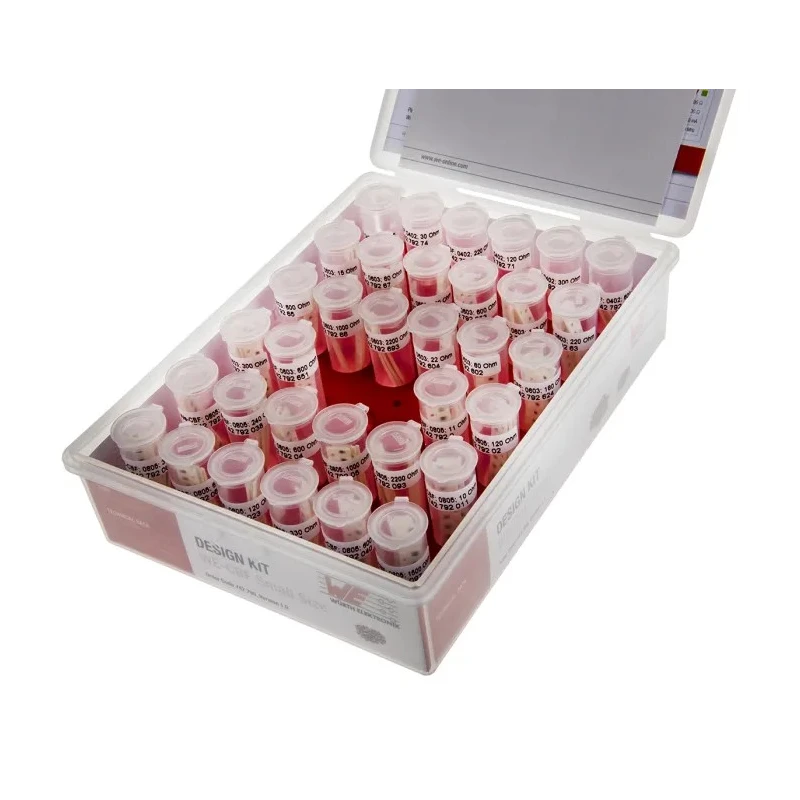

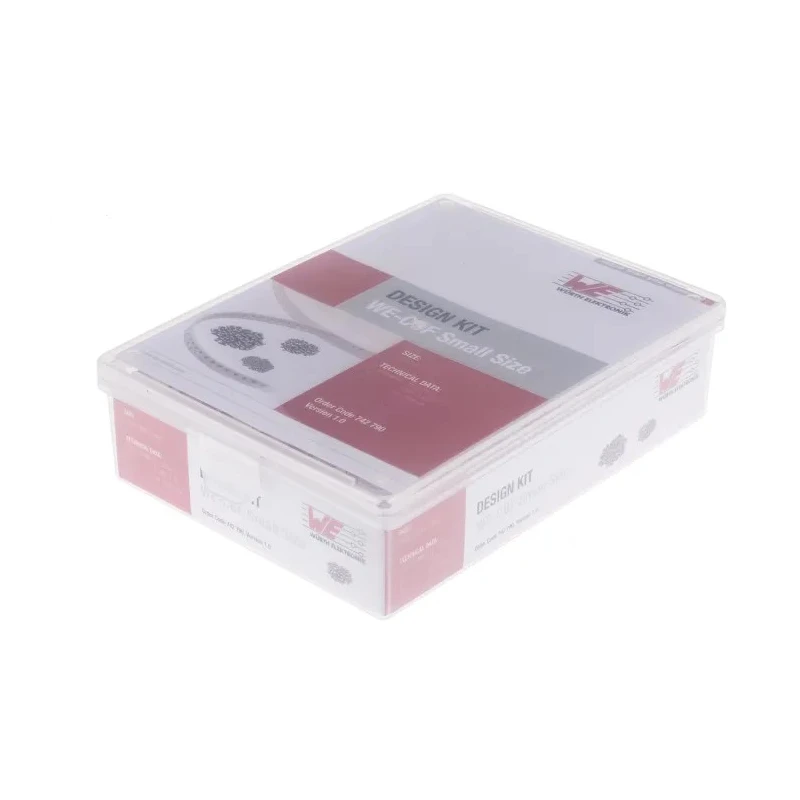

Wurth Elektronik 1020 Piece SMD Ferrite Kit with Anti-EMI Properties and Low DC Resistance 742790
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 742790 |
| Number of Pieces | 1020 |
| Standards/Approvals | RoHS |
| • Operating Temperature | - 55 °C to +125 °C |
| High Current | "High Current" SMD ferrites WE-CBF are designed for high current (over 1A). The rated current refers to 40K self-heating |
| Wide Band | "Wide Band" SMD ferrites WE-CBF already show high impedance in low frequency range. Therefore they are wide band through the whole spectrum. e.g. control signals, RS232, RS422, DC/DC converter |
Key Features
- Includes 1020 pieces of SMD ferrite chip beads for PCB mounting.
- Provides excellent anti-EMI properties with low DC resistance.
- Supports high rated currents up to 6 A for reliable operation.
- Operates within a temperature range from - 55 °C to +125 °C.
- Suitable for high-speed data lines like USB 2.0 and LVDS.
- Wide band ferrites deliver high impedance over entire frequency spectrum.
- High current ferrites designed for currents over 1 A with self-heating rating.
- Recommended for reflow soldering in electronics manufacturing.
Product Description
Wurth Elektronik 742790 is a comprehensive 1020 piece SMD Ferrite Kit designed for industrial and electronic applications where EMI suppression and signal integrity are critical.
This design kit features WE-CBF series SMD chip bead ferrites that can be mounted directly onto printed circuit boards. These ferrites effectively reduce electromagnetic interference while maintaining low DC resistance to support efficient current flow up to 6 A.
The kit includes small-sized ferrites such as 0402, 0603, and 0805 packages, offering maximal impedance up to 1000 Ω, perfectly suited for high frequency data signal lines like USB 2.0, IEEE 1394, and LVDS interfaces.
Applications cover a broad range including voltage supply filtering, control signal conditioning, RS232, RS422 communication lines, and DC/DC converter noise suppression. The ferrites are recommended for reflow soldering processes and operate reliably from - 55 °C to +125 °C, ensuring durability under harsh environmental conditions.
Specialized ferrite types in the kit include:. High Speed: Lower impedance at low frequency ranges for minimal attenuation of fast signals. Wide Band: High impedance across a wide frequency spectrum for comprehensive EMI filtering.
High Current: Designed to handle currents over 1 A with rated current referring to a 40K self-heating condition. This product complies with RoHS regulations and is manufactured in Taiwan to maintain quality and reliability.
The Wurth Elektronik 742790 SMD Ferrite Kit is ideal for industrial electronics, communication devices, laboratory equipment, and power supply modules where EMI control is essential.
Explore more in the Ferrite Kit category on EnvMart for your complete electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -55 °C to +125 °C.
This kit includes a total of 1020 pieces of SMD ferrite chip beads.
The high current SMD ferrites in this kit are designed to handle currents over 1 A, with the rated current referring to a 40K self-heating condition.
The ferrites are suitable for high-frequency data signal lines like USB 2.0, IEEE 1394, and LVDS interfaces, as well as for voltage supply filtering and control signal conditioning.
The ferrites can deliver maximal impedance up to 1000 Ω across a wide frequency spectrum, providing effective EMI filtering.
The ferrites in this kit are recommended for reflow soldering processes in electronics manufacturing.
The kit includes specialized ferrite types such as High Speed, Wide Band, and High Current SMD ferrites, each designed for different applications.
This product complies with RoHS regulations, ensuring it meets environmental safety standards.
The country of origin for this model is Taiwan.
Typical applications include voltage supply filtering, control signal conditioning, RS232, RS422 communication lines, and DC/DC converter noise suppression.
The kit includes small-sized ferrites in package sizes such as 0402, 0603, and 0805.
The primary function of the ferrites is to reduce electromagnetic interference (EMI) while maintaining low DC resistance for efficient current flow.
