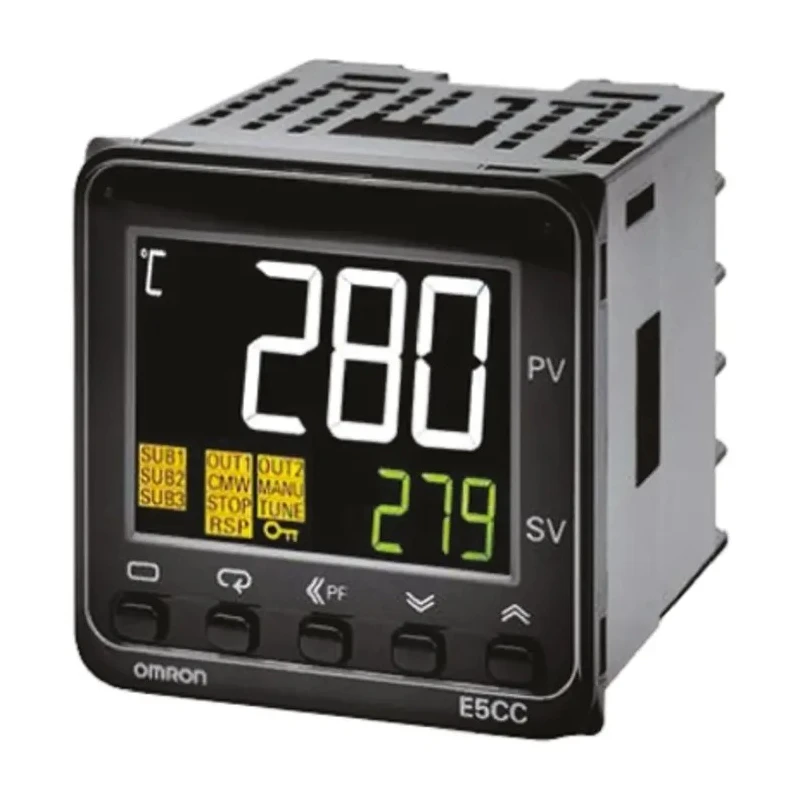

Omron Panel Mount PID Temperature Controller 2 Input 1 Output Relay 240V AC/DC E5CC

Omron E5CC Panel Mount PID Temperature Controller model E5CC is designed for precise temperature management in industrial and laboratory environments. This panel mount controller features two universal inputs and one relay output, providing versatile control over heating and cooling systems with efficient PID algorithms. With a compact 48 x 48 mm form factor and a large, bright LCD display equipped with 15.2 mm characters, the E5CC ensures clear visibility in various installation contexts.

The device supports a wide array of sensor types including thermocouple and platinum resistance sensors along with analogue current and voltage inputs. Its ultra-fast 50 ms sampling enables highly responsive control adjustments. Communication capabilities include RS485 digital interface allowing easy integration with programmable logic controllers (PLCs) and industrial automation networks.

Installation is simplified by the screw terminal block and standard panel mount format with a 60 mm panel depth. Operating temperature is rated from 10°C to 55°C while maximum supply voltage accepts up to 240V AC/DC, making it compatible with common industrial power supplies. Expansion is supported through three auxiliary outputs enabling customized system extensions for complex process control applications.

The E5CC range is compliant with multiple international standards including UL 61010-1, CSA C22.2 No.61010-1, EN 61010-1 (IEC 61010-1), EN61326-1, and bears the KC mark, ensuring safety and performance certification for global deployments.

This controller is ideal for industrial automation, manufacturing process control, HVAC temperature regulation, water treatment systems, and laboratory instrumentation requiring responsive and accurate temperature monitoring and control. The device also interfaces easily with Omron's CX-Thermo software via USB conversion cable for convenient setup and parameter tuning without the need for additional power supply.

For installation in industrial panels requiring a reliable and versatile PID temperature control solution, the Omron E5CC model offers compact size, comprehensive input support, and professional-grade certification for demanding applications.

Provides precise PID control suitable for heating and cooling processes. Equipped with a large white LCD display with 15.2 mm characters for easy readability. Compact 48 x 48 mm panel mount design for seamless integration.

Supports universal and thermocouple sensor inputs with rapid 50 ms sampling time. Includes RS485 communication interface for easy connectivity to PLCs. Features screw terminal block for secure and convenient wiring. Operates over a temperature range of 10°C to 55°C.

Supports expansion via 3 auxiliary outputs for customized control applications. Compatible with CX-Thermo software for easy configuration without additional power supply. Complies with international standards including UL, CSA, and EN certifications.
