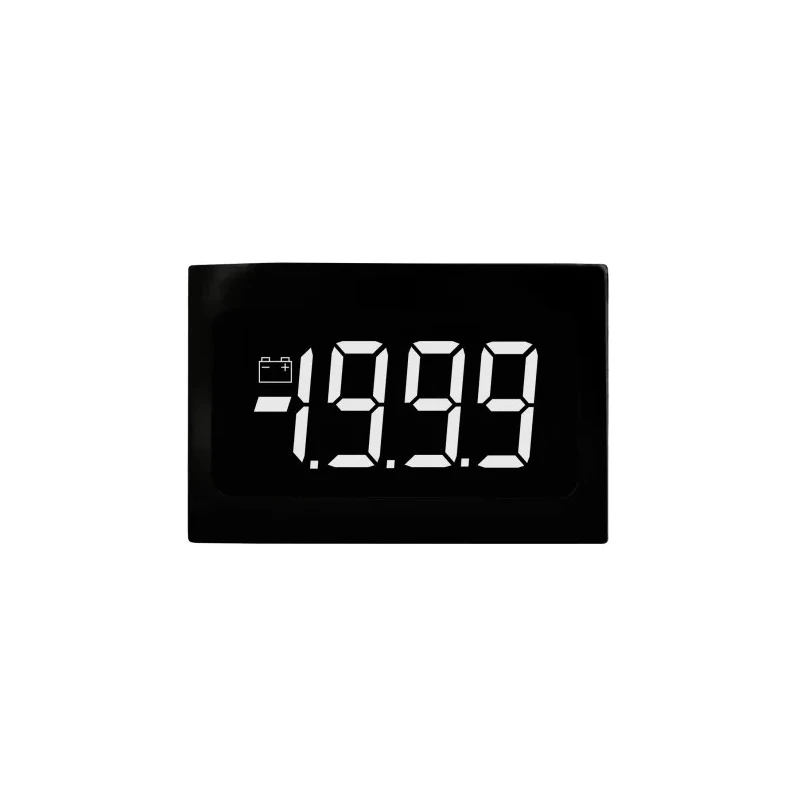

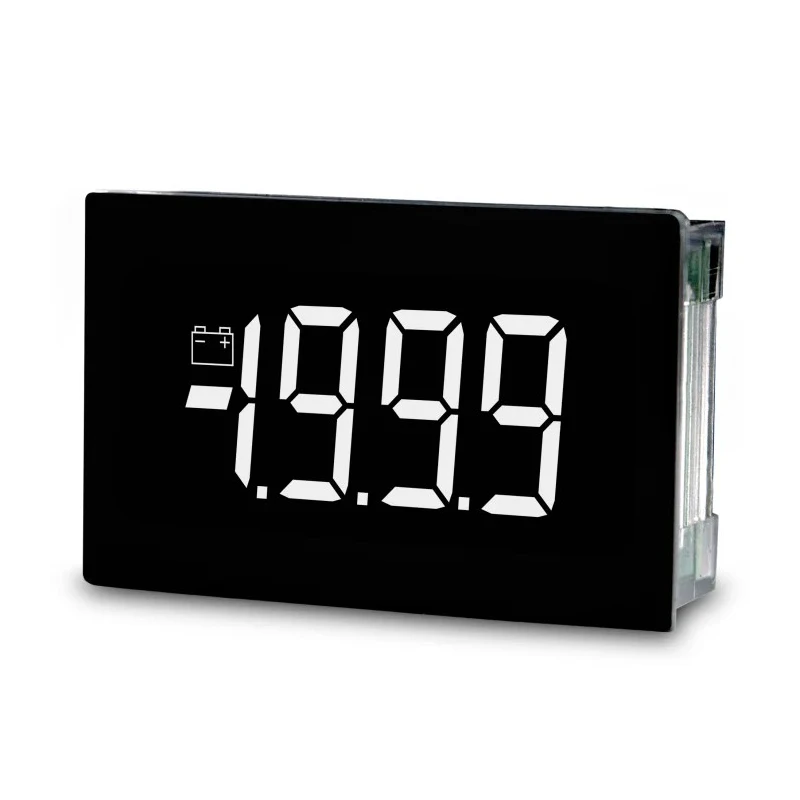

Lascar Digital Voltmeter DC, LCD Display 3-Digits ±0.1 % Accuracy, Cutout 21.3mm x 34mm, Depth 16mm SP 400-EB-W

Lascar SP 400-EB-W digital voltmeter DC offers reliable and accurate voltage measurement with a 3-digit LCD display, digit height of 9.75 mm, and ±0.1 % meter accuracy. The voltmeter features a negative rail generator enabling measurements referenced to the power supply ground and includes a white LED backlight for exceptional readability in all lighting conditions. It is designed for panel mounting with a compact cutout dimension of 21.3 mm height by 34 mm width and a depth of 16 mm. The device is equipped with auto-zero, auto polarity, and programmable decimal point features to enhance measurement precision.

This model operates efficiently within an ambient temperature range of 0°C to 50°C and includes protection to ensure splash proofing using the supplied seal. Its low cost and robust design make it suitable for both high-volume and low-volume applications. Key industrial applications include precision instrumentation systems, power supply monitoring, test boxes, and panel-mount indication. The SP 400-EB series digital voltmeter complies with BS EN 61010 safety standards and ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 certifications.

The device is manufactured in China and is ideal for industrial, laboratory, instrumentation, manufacturing, and electrical automation use cases. Its compact size and operational reliability make it well-suited for diverse process control and monitoring tasks. The product provides durable and accurate voltage measurement in a compact form factor.

Equipped with a 9.75 mm digit height for easy readability. Programmable decimal points allow customization of readings. Auto-zero and auto polarity functions enhance measurement accuracy. White LED backlighting improves visibility under varying light conditions.

Operating temperature range from 0°C to 50°C supports diverse environments. Compact panel mount design with 21.3 mm height and 34 mm width cutout dimensions. Low battery warning feature ensures reliable operation. Includes splash proof design with supplied sealing for panel fitting.

Ideal for precision instrumentation systems and power supply monitoring. Conforms to BS EN 61010 standards for safety and performance. Discover the range of Lascar Digital Voltmeters and other precision panel meters on EnvMart for reliable industrial measurement solutions.
