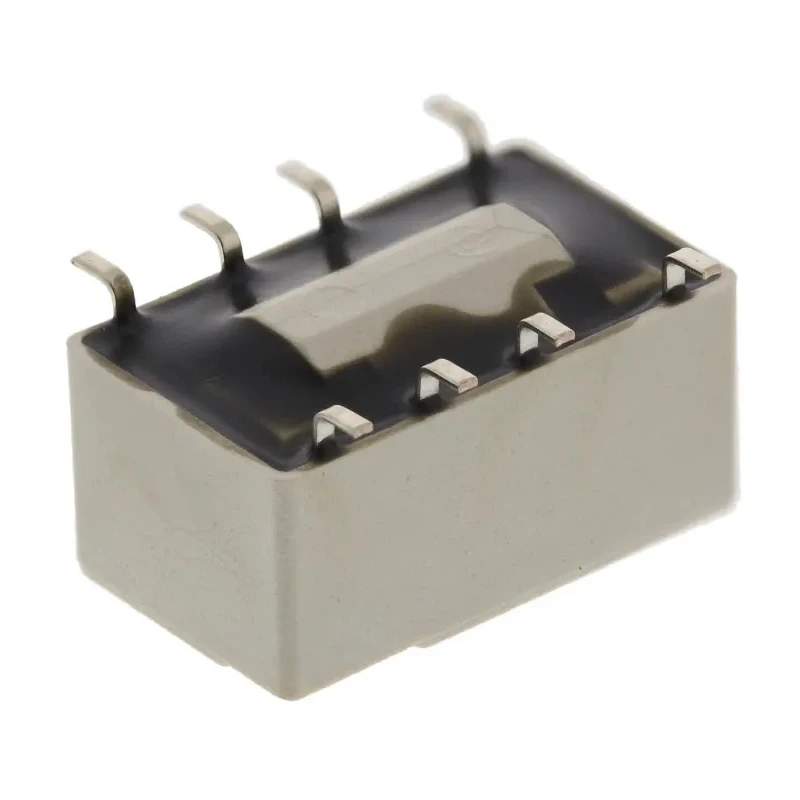

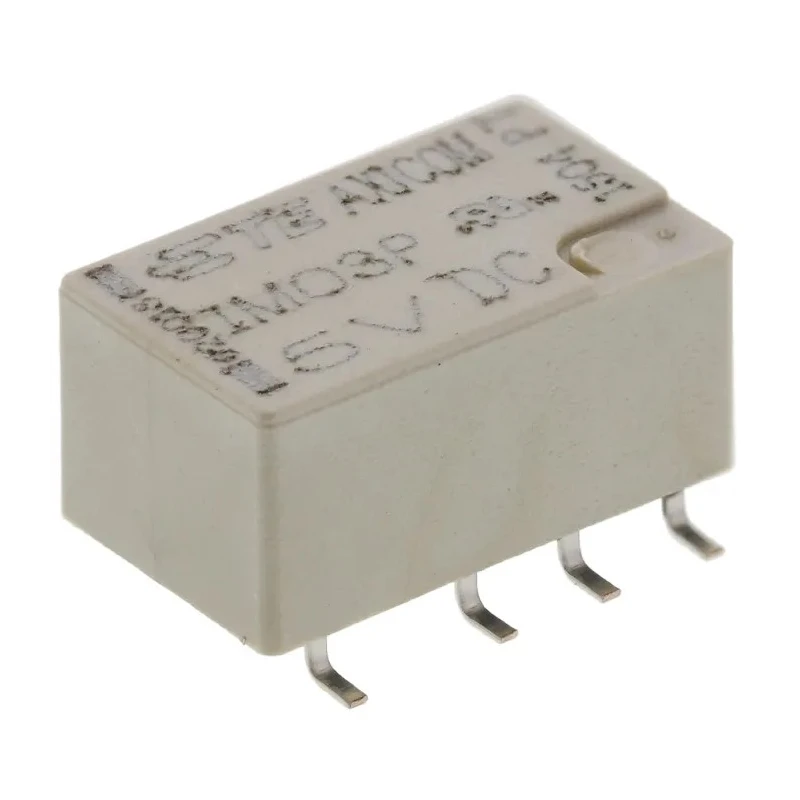

TE Connectivity Surface Signal Relay 5V DC Coil 2A DPDT IM03PGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM03PGR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| TE Connectivity PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- Compact slimline design measuring 10x6x5.65 mm for minimal PCB space usage.
- Bifurcated gold-plated contacts ensure durable and efficient switching.
- Hermetically sealed IP67 construction provides excellent environmental protection.
- High mechanical shock resistance tolerating up to 300G functional load.
- Low coil power consumption of 140mW helps reduce energy usage.
- Wide operating temperature range from -40°C to 85°C for diverse conditions.
- High insulation resistance greater than 10⁹Ω at 500V DC for safety and reliability.
- Meets stringent telecommunications surge capability standards including Telcordia GR 1089.
Product Description
TE Connectivity IM03PGR Surface Signal Relay features a 5V DC coil and a 2A switching current with DPDT contact configuration suitable for efficient PCB mounting applications. The relay is designed with a slim profile of 5.65mm height and a compact footprint of 60 mm², making it ideal for space constrained electronic circuits.
Its gold-plated bifurcated contacts provide excellent conductivity and long operational life. This relay is hermetically sealed (RT V), rated to IP67 standards, ensuring protection against dust and immersion in water. It is engineered to withstand functional mechanical shocks up to 300G and survival shocks up to 500G, making it robust for industrial environments.
The coil has a low power consumption of 140mW, reducing overall energy costs in device operation. Operating temperature ranges from -40°C to +85°C, supporting reliable performance in harsh environments. The relay offers high insulation resistance at 500V DC with greater than 10⁹Ω, ensuring electrical safety, and complies with RoHS and REACH standards.
Its high surge capability (1.2/50 μs and 10/700 μs) meets telecommunications industry requirements such as Telcordia GR 1089, FCC Part 68, and ITU-T K20, K21, and K45 standards. The IM series is widely used in telecommunications equipment, optical network terminals, office machines, test and measurement instruments, medical devices, and automotive systems.
Compact slimline design measuring 10x6x5.65 mm for minimal PCB space usage. Bifurcated gold-plated contacts ensure durable and efficient switching. Hermetically sealed IP67 construction provides excellent environmental protection.
High mechanical shock resistance tolerating up to 300G functional load. Low coil power consumption of 140mW helps reduce energy usage. Wide operating temperature range from -40°C to 85°C for diverse conditions. High insulation resistance greater than 10⁹Ω at 500V DC for safety and reliability.
Meets stringent telecommunications surge capability standards including Telcordia GR 1089. Suitable for telecommunication, optical network, office, test, medical, and automotive equipment. This product is ideal for industrial, telecommunication, laboratory, medical, and automotive sector applications requiring high reliability and compact relay solutions.
Explore our wide range of precision relays and related electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current of 2A.
It operates with a coil voltage of 5V DC.
The relay measures 10mm in length, 6mm in width, and 5.65mm in height.
It features a DPDT (Double Pole Double Throw) contact configuration.
The maximum operating temperature is 85°C.
It has an insulation resistance greater than 10⁹Ω at 500V DC.
The coil power consumption is 140mW.
It is hermetically sealed and rated to IP67 standards, providing excellent environmental protection.
The contacts are made of gold-plated material for enhanced conductivity.
It complies with RoHS and REACH standards, and meets telecommunications surge capability standards including Telcordia GR 1089.
The minimum operating temperature is -40°C.
This relay supports surface mounting.
