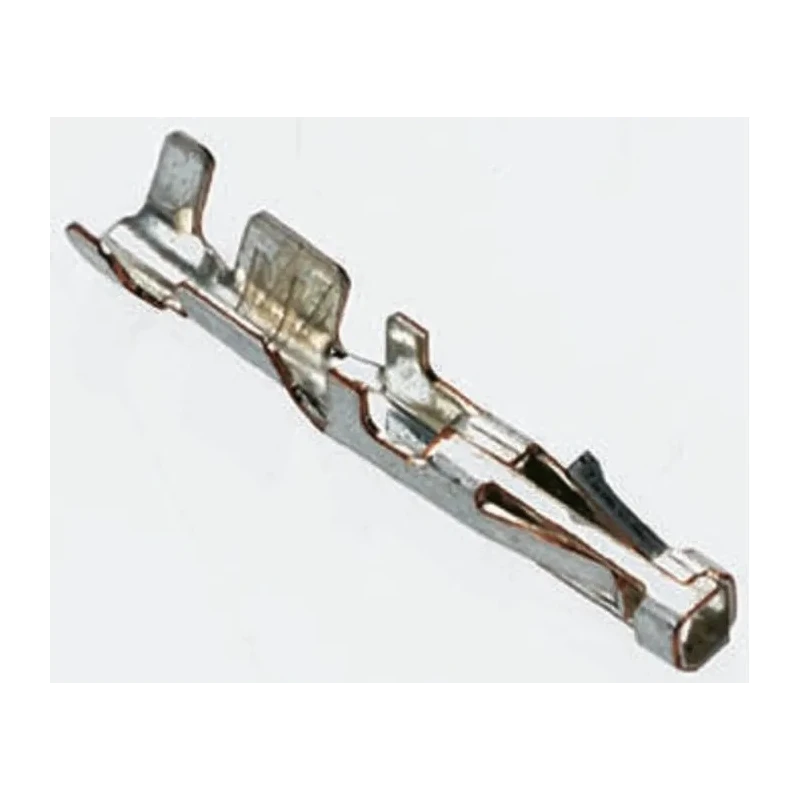

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 5A Current Gold Plated 30AWG to 26AWG 1-794611-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Dual beam contact design ensures reliable electrical connections.
- Locking lance mechanism secures contacts in connector housing.
- Gold plating of contacts enhances conductivity and corrosion resistance.
- Suitable for wire sizes from 0.05 mm² (30 AWG) to 0.1 mm² (26 AWG).
- Maximum operating temperature rated at 105°C for stable performance.
- Designed for use with Micro MATE-N-LOK connector housings.
- Made from phosphor bronze material for durability and excellent conductivity.
- Maximum contact resistance of 20 milliohms ensures low signal loss.
Product Description
TE Connectivity 1-794611-2 Micro MATE-N-LOK Series Female Crimp Terminal is a precision-engineered connector component designed for wire-to-wire and wire-to-board electrical connections. It supports a maximum current rating of 5A and features a 3mm contact pitch, perfect for compact, reliable assemblies.
The crimp contacts utilize a dual beam contact design ensuring excellent electrical reliability and a locking lance mechanism that securely retains the terminal inside the Micro MATE-N-LOK connector housing, minimizing risk of disconnection in industrial and consumer applications.
These crimp terminals are gold-plated phosphor bronze, which deliver superior conductivity and resistance to corrosion. The terminals accommodate wire diameters ranging from 0.05 mm² (30 AWG) to 0.1 mm² (26 AWG) and provide a maximum contact resistance of 20 mΩ, ensuring effective signal transmission with minimal losses.
Engineered for durability, these connectors withstand operating temperatures from -40°C up to 105°C, making them suitable for a wide range of electronic and electrical environments including automation, instrumentation, lighting systems, and general industrial use.
The Micro MATE-N-LOK 3mm connector system is favored for its low profile, compact design, and ease of use with a snap-in feature that improves manufacturing efficiency and reliability in assembly processes.
Dual beam contact design ensures reliable electrical connection with low resistance. Locking lance mechanism guarantees secure retention within the connector housing. Gold plating provides corrosion resistance and stable conductivity.
Accommodates wire sizes from 30 AWG to 26 AWG (0.05 mm² to 0.1 mm²). Phosphor bronze construction ensures durability and conductivity. Temperature rated for -40°C to 105°C for wide environmental adaptability. Crimp termination type provides strong, permanent wire attachment.
Maximum contact resistance 20 milliohms for efficient electrical performance.
This product is ideally used in electronics manufacturing, electrical assemblies, automotive wiring harnesses, LED lighting applications, instrumentation, and other industrial environments requiring precise, reliable wire termination solutions.
Explore a comprehensive range of Micro MATE-N-LOK connectors and accessories on EnvMart for your electronic Connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 5A.
This connector accommodates wire sizes ranging from 0.05 mm² (30 AWG) to 0.1 mm² (26 AWG).
The maximum operating temperature of this terminal is rated at 105°C.
The contacts in this terminal are made from phosphor bronze, which enhances conductivity and durability.
It features a locking lance mechanism that secures the contacts within the connector housing, minimizing the risk of disconnection.
The maximum contact resistance for this terminal is 20 milliohms, ensuring low signal loss during operation.
This crimp terminal is suitable for use in electronics manufacturing, automotive wiring harnesses, LED lighting applications, and general industrial environments.
This terminal operates effectively within a temperature range of -40°C to 105°C.
This connector uses a crimp termination type for strong and permanent wire attachment.
This female crimp terminal belongs to the Micro MATE-N-LOK series.
The dual beam contact design and the locking lance mechanism enhance the reliability of electrical connections in this terminal.
This product is manufactured in India.
