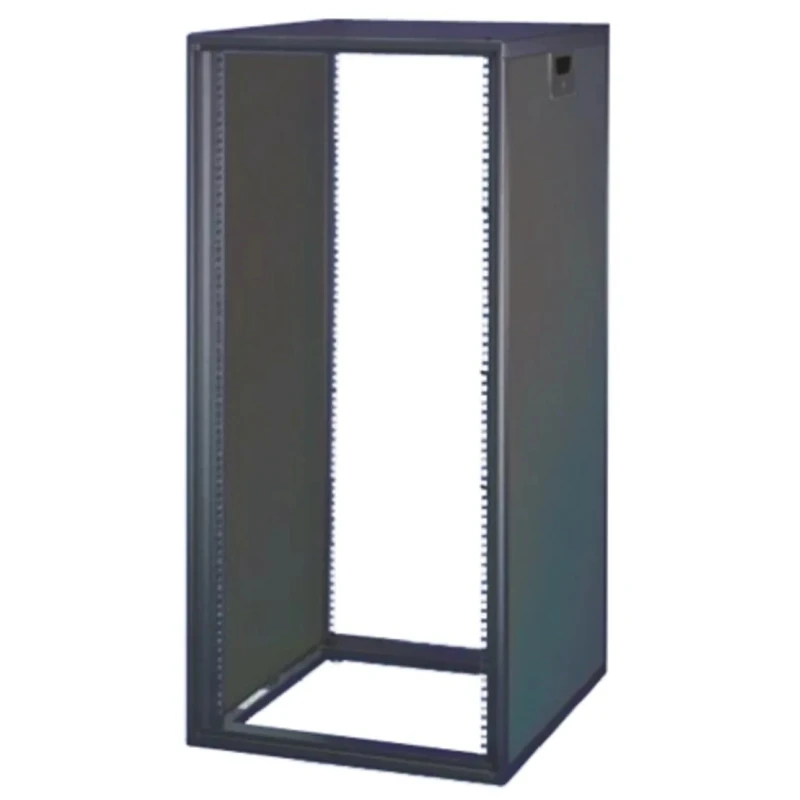

nVent SCHROFF Novastar Series 34U Floor Standing Server Cabinet 600 mm Depth 553 mm Width 1567 mm Height 16230-011

nVent SCHROFF 16230-011 Novastar Series 34U Floor Standing Server Cabinet is a high-quality server enclosure engineered to house 19 inch rack-mounted equipment in professional data centers and industrial environments. This cabinet measures 1567 mm in external height, 600 mm in depth, and 553 mm in width, providing a compact and efficient footprint for server installations where space saving is essential.

The cabinet features a robust construction comprising a steel case with die-cast aluminium extrusion uprights that include 19 inch cut-outs compatible with standard rack-mounted equipment. The aluminium frame provides strength while keeping the overall weight manageable for easier mobility. The cabinet is designed for floor standing installation, making it suitable for data rooms and industrial facilities.

Side panels of 1 mm steel utilize a twist-locking catch mechanism for quick release and easy access during maintenance or installation, while optional front doors (not supplied) can be fitted to secure the equipment and allow a 180° opening angle for unrestricted access.

Designed with IP20 ingress protection class, the cabinet protects internal components against solid objects greater than 12.5 mm, but does not offer liquid ingress protection. This makes it ideal for typical indoor server room environments.

The cabinet supports a static load of up to 400 kg, sufficient for housing heavy IT equipment in the 34U size configuration. The grey color finish (RAL 7021 for frame and RAL 7035 for side panels) offers an industrial aesthetic suitable for professional environments.

The set includes 1 frame with aluminium uprights, 2 steel side panels, 1 flush steel top cover, 4 feet for stable support, and an earthing kit for safety grounding. Additional accessories such as doors, shelves, base plates, bases/plinths, slide rails, and castors can be ordered separately to customize the cabinet configuration.

This server cabinet is suitable for use in industrial, manufacturing, telecommunications, IT data centers, and laboratory applications where robust and reliable rack mounting is required.

Manufactured in France, the nVent SCHROFF Novastar series meets stringent European quality standards for durability and design. The cabinet includes 19 inch cut-out uprights for easy equipment mounting. Side panels are flush with the frame to minimize width and optimize space.

Quick release side panels facilitate rapid access to equipment. Optional front doors provide security and access control. Static load capacity ensures the ability to house heavy equipment safely. Explore more products from the nVent SCHROFF Novastar series and other Server Cabinets at EnvMart to fulfill your technical and industrial enclosure requirements.
