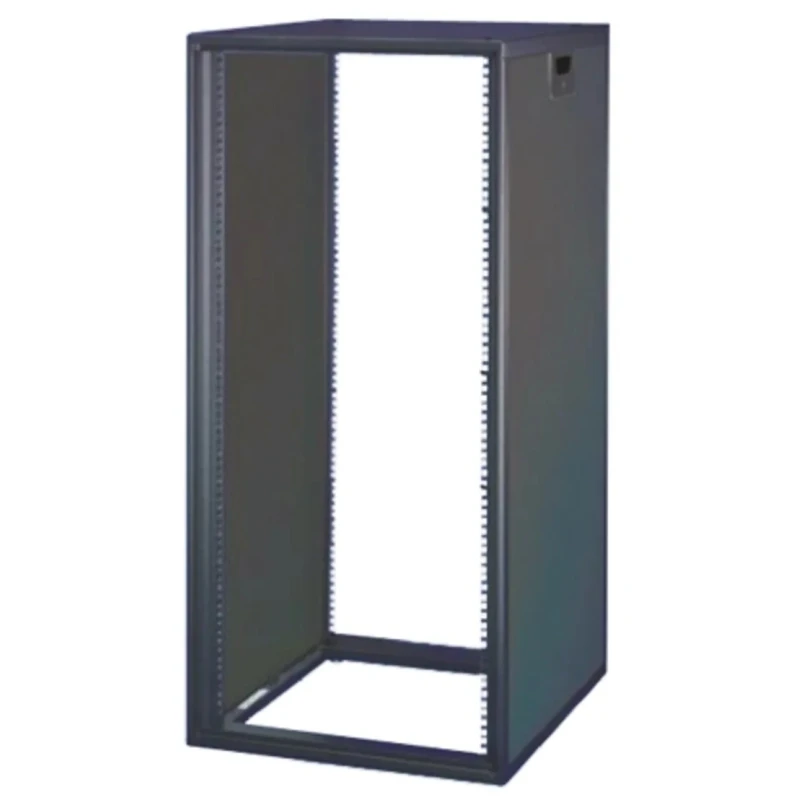

nVent SCHROFF Novastar Series 25 U-Rack Server Cabinet Floor Standing Steel 600mm Depth 553mm Width 1167mm Height 16230-009

nVent SCHROFF 16230-009 Novastar Series 25 U-Rack Server Cabinet is a robust floor standing enclosure specially designed for housing 19-inch server racks and equipment. Constructed from high-quality steel with a grey finish, it provides strong physical and environmental protection suitable for industrial, commercial, and data center applications.

This server cabinet features a single door design and complies with ingress protection ratings IP40 and IP20, ensuring protection against solid foreign objects and minimal liquid ingress. The cabinet's compact external dimensions of 1167mm height, 600mm depth, and 553mm width ensure suitability for space-constrained environments.

The Novastar series integrates die-cast aluminium extrusion uprights with 19-inch cut-outs, allowing seamless integration of standard rack-mounted equipment. Twist-locking catch steel side panels offer quick and easy access to the cabinet's interior for installation and maintenance. The cabinet frame supports a static load capacity of 200 kg, meeting the demands of mounting heavy IT equipment securely.

These server cabinets are tested according to IEC 61587-1 standards to guarantee safety and durability. Compliance with IEC 60297-3-100 ensures consistent external and internal dimensions, streamlining compatibility with various accessories and mounting hardware. Earth connections conform to DIN EN 50178 / VDE 0160 standards, maintaining electrical safety within the enclosure.

The cabinet's design allows optional addition of front doors (sold separately) which open to 180°, balancing security and accessibility. Additional accessories such as rear panels, base plates, plinths, slide rails, shelves, and castors are also available separately to customize the cabinet for specific installation needs.

Ideal for use in IT, telecommunications, data centers, industrial automation, and control rooms, the nVent SCHROFF Novastar Series offers reliable protection and flexible installation options to meet rigorous operational demands.

The cabinet supports 25 rack units (25U) suitable for 19-inch servers and racks. It features a single door design with ingress protection ratings of IP40 and IP20. The external dimensions are 1167mm height, 600mm depth, and 553mm width for space-efficient installation.

Constructed from durable steel with grey finish ensuring sturdy and reliable protection for mounted equipment. Complies with multiple industrial standards including IEC 60297-3-100 and IEC 61587-1 for safety and performance.

The cabinet includes die-cast aluminum extrusion uprights with 19-inch cut-outs and twist-locking steel side panels. Offers easy access with quick release side panels and option to fit a front door (sold separately) with 180° opening angle.

Static load capacity supports up to 200 kg ensuring safe mounting of servers and accessories. Explore the full range of Server Cabinets and Enclosures available on EnvMart for your industrial and commercial needs.
