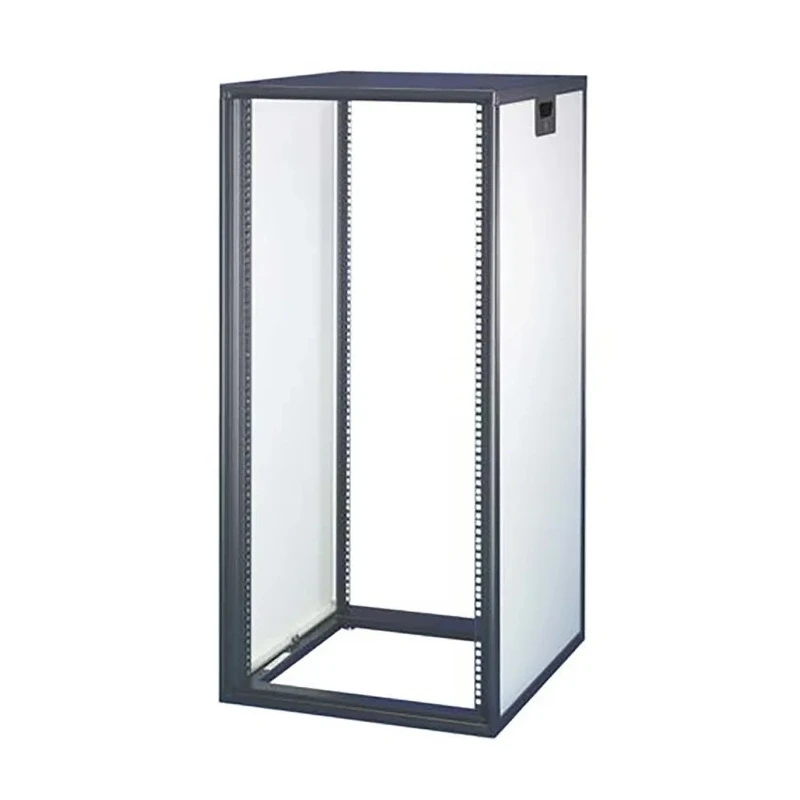

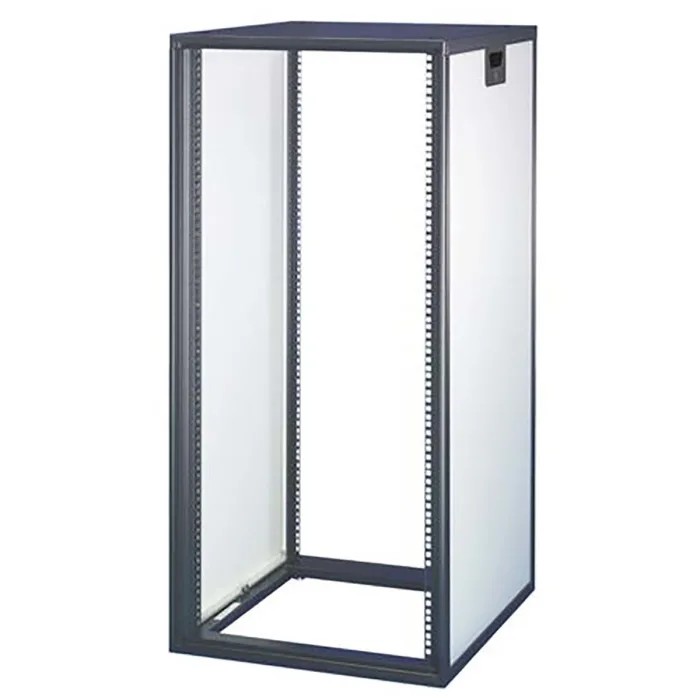

nVent SCHROFF Novastar Series 20U Floor Standing Server Cabinet Steel Grey 945mm(H) x 553mm(W) x 800mm(D) 16230-008
Specifications
| Country of Origin | France |
|---|---|
| Brand | nVent SCHROFF |
| Colour | Grey |
| Mount Type | Floor Standing |
| Series | Novastar |
| External Width | 553mm |
| External Depth | 800mm |
| External Height | 945mm |
| Rack Unit | 20U |
| External Case Material | Steel |
| RS PRO 20 U-Rack Server Cabinet 800 mm, 553 mm 945 mmRS Stock No. | 265-8269Brand: RS PRO |
| nVent-SCHROFF Minirack Series 20U-Rack Server Cabinet, 945 x 553 x 780mmBrand | Schroff |
Key Features
- This server cabinet provides a slim, mobile design suited for 19 inch server racks.
- It features a height of 945mm, width of 553mm, and depth of 800mm for compact space utilization.
- Built with steel external case material and is capable of housing equipment with static loads up to 200 kg.
- Includes quick release side panels and optional front door mounting (door not supplied) to enhance equipment access and security.
- Ingress Protection class IP20 ensures protection against solid objects larger than 12.5 mm.
- The cabinet complies with IEC-61587-1 standards for enclosures.
- Ideal for industrial, data center, and IT network applications requiring secure and organized server housing.
- Supplied with frame, steel side panels, top cover, feet, and earthing kit for installation flexibility.
Product Description
nVent SCHROFF 16230-008 Novastar Series 20U Floor Standing Server Cabinet constructed with robust steel in a grey finish, measures 945mm in height, 553mm width, and 800mm depth. It is engineered to accommodate 19 inch server racks, making it ideal for organized IT hardware mounting.
The cabinet features a slim but strong die-cast aluminium frame with quick release steel side panels that facilitate easy access to mounted equipment. Designed to support static loads up to 200 kg across rack units 9U to 25U, the cabinet offers reliable structural integrity for server installations.
Ingress Protection rating IP20 provides effective defense against solid objects exceeding 12.5 mm diameter while not protecting against liquids. The front door is available separately and features a 180° opening angle, enabling unhindered access with the option to secure equipment.
The Novastar series server cabinet adheres to IEC-61587-1 environmental and safety standards, making it suitable for demanding industrial, data center, laboratory, manufacturing, and telecommunications environments. The included earthing kit ensures proper grounding and safety compliance.
Supplied components include the aluminium extrusion frame with 19 inch cut-outs, two 1mm thick steel side panels with twist-lock catches (color coded RAL 7035 or RAL 7021), a flush top cover, four feet for stable mounting, and an earthing kit. Additional accessories such as doors, shelves, base plates, bases/plinths, slide rails, and castors are sold separately to tailor the installation to operational requirements.
Manufactured in France, the cabinet combines quality materials and engineering to provide a durable, secure enclosure suitable for floor-standing mounting of networking and server equipment in commercial and industrial settings.
Slim, mobile design suited for 19 inch racks. Robust steel construction with aluminium frame. Static load support of up to 200 kg. IP20 ingress protection standard. Compliance with IEC-61587-1 standards. Quick release side panels for easy access.
Optional front door with 180° opening (sold separately). Includes earthing kit for grounding safety. Multiple accessories available separately. Explore more server cabinet options and configurations from nVent SCHROFF and related product ranges on EnvMart.
Explore more products in our Server Cabinets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this model are 945mm in height, 553mm in width, and 800mm in depth.
It is capable of supporting static loads up to 200 kg across its rack units.
The external case material is constructed from steel.
This cabinet has an ingress protection rating of IP20, which protects against solid objects larger than 12.5 mm but does not protect against liquids.
This model supports a rack unit size of 20U.
No, the front door is not supplied with the cabinet but is available separately.
The cabinet comes with a frame, steel side panels, a top cover, feet, and an earthing kit for installation flexibility.
This model is manufactured in France.
It complies with IEC-61587-1 standards for enclosures.
It is suitable for industrial, data center, laboratory, manufacturing, and telecommunications environments.
