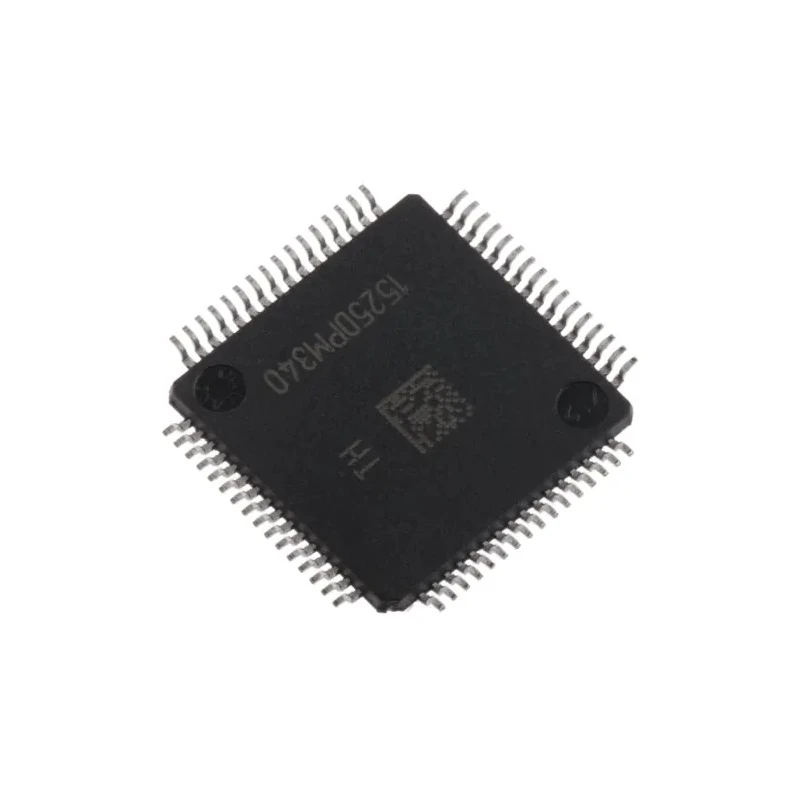

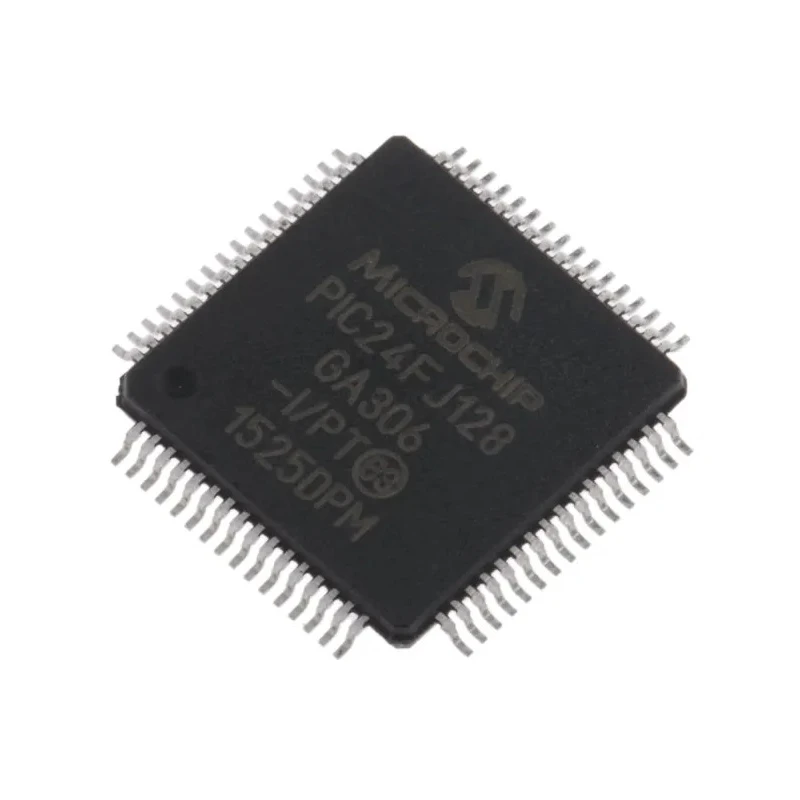

Microchip 16 bit PIC24FJ Microcontroller 32 MHz 128kB FLASH 64-Pin TQFP PIC24FJ128GA306-I/PT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24FJ128GA306-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 16 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a modified Harvard instruction set architecture.
- Includes 8kB RAM and 16 ADC channels with 10/12 bit resolution.
- Supports a maximum supply voltage of 3.6V and minimum of 2V.
- Functional in temperature ranges from -40°C to 85°C.
- Contains 5 hardware timers and 3 analogue comparators.
- Designed for surface mount applications using TQFP package type.
- Compact physical dimensions of 10 mm length, 10 mm width, and 1.05 mm height.
- Produced under strict standards with no automotive certification.
Product Description
Microchip PIC24FJ128GA306-I/PT is a high-performance 16 bit microcontroller based on the PIC24FJ series, operating at a maximum clock frequency of 32 MHz and featuring 128kB of FLASH program memory. Packaged in a 64-pin Thin Quad Flat Package (TQFP), this device is suitable for surface mount technology implementations.
This microcontroller is equipped with an 8kB RAM size and a Modified Harvard Architecture, enhancing operational speed and efficiency in embedded systems. It includes 16 analogue-to-digital converter (ADC) channels with 10 or 12-bit resolution, suitable for precise sensor interfacing and analog signal processing.
The device supports a wide operating voltage range from 2V minimum to 3.6V maximum, ensuring reliable operation in various power environments. Temperature tolerance ranges from -40°C to 85°C, making it suitable for industrial and commercial applications requiring robust environmental performance.
Additional integrated features include three analogue comparators and five timers, enabling complex timing and control functions within embedded projects. The compact dimensions measure 10 mm by 10 mm with a height of 1.05 mm, facilitating use in space-constrained designs.
Manufactured in Thailand, this microcontroller adheres to quality and process standards, though it lacks automotive standard certification. It is ideal for electronic, industrial, and manufacturing applications requiring reliable 16 bit microcontroller functionality with moderate memory and peripheral support.
Operates with a modified Harvard instruction set architecture. Includes 8kB RAM and 16 ADC channels with 10/12 bit resolution. Supports a maximum supply voltage of 3.6V and minimum of 2V. Functional in temperature ranges from -40°C to 85°C.
Contains 5 hardware timers and 3 analogue comparators. Designed for surface mount applications using TQFP package type. Compact physical dimensions of 10 mm length, 10 mm width, and 1.05 mm height. Produced under strict standards with no automotive certification.
This microcontroller is well suited for embedded system development across industrial automation, consumer electronics, instrumentation, and control systems. Explore additional Microchip microcontrollers and components in the EnvMart Microcontroller category to find complementary products and development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ128GA306-I/PT microcontroller is 32 MHz.
This microcontroller features a program memory size of 128kB FLASH.
It includes 8kB of RAM.
The device is equipped with 16 analogue-to-digital converter (ADC) channels with 10 or 12-bit resolution.
It operates within a temperature range of -40°C to 85°C.
The microcontroller supports a minimum supply voltage of 2V and a maximum of 3.6V.
This model has compact dimensions of 10 mm in length, 10 mm in width, and 1.05 mm in height.
It contains five hardware timers.
It is packaged in a 64-pin Thin Quad Flat Package (TQFP), suitable for surface mount applications.
The microcontroller operates with a modified Harvard instruction set architecture.
This microcontroller is manufactured in Thailand.
This model does not have automotive certification.
