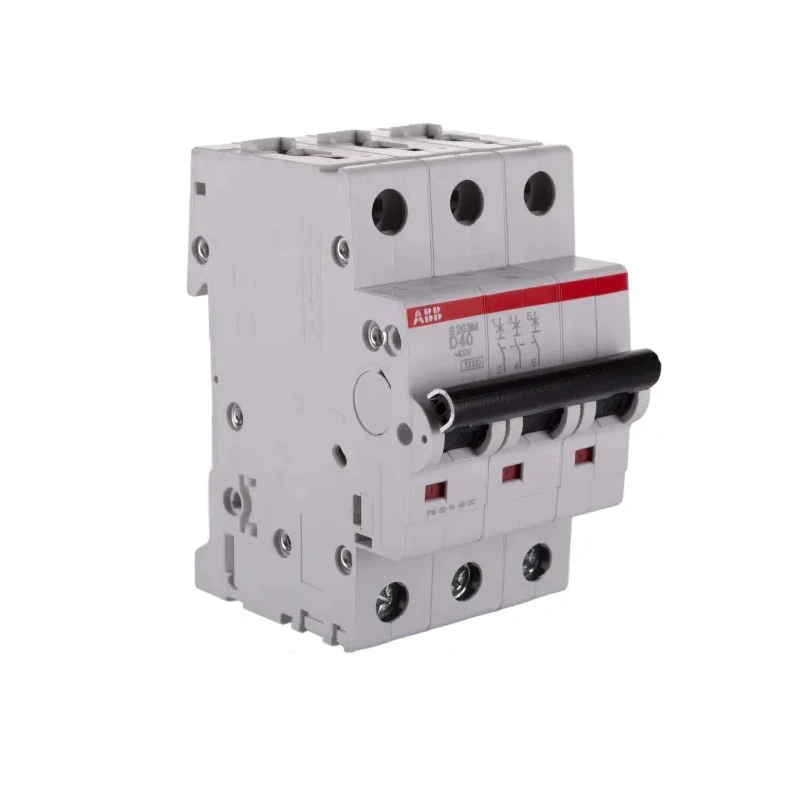

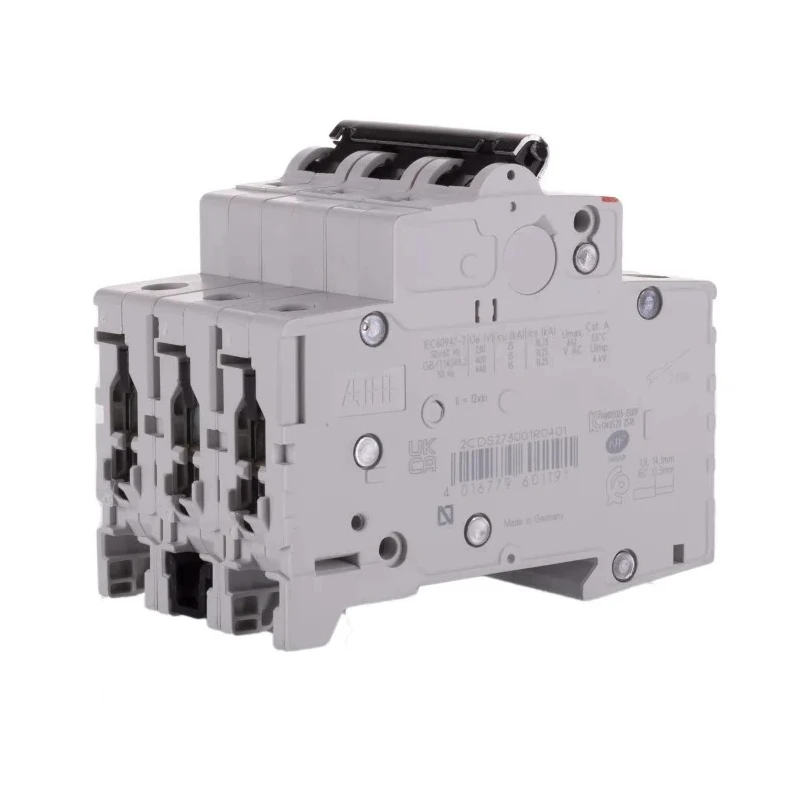

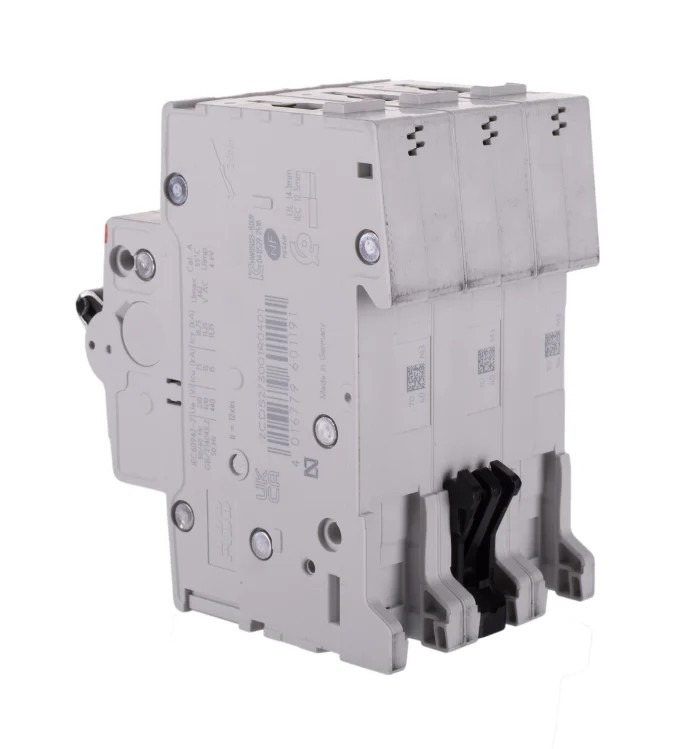

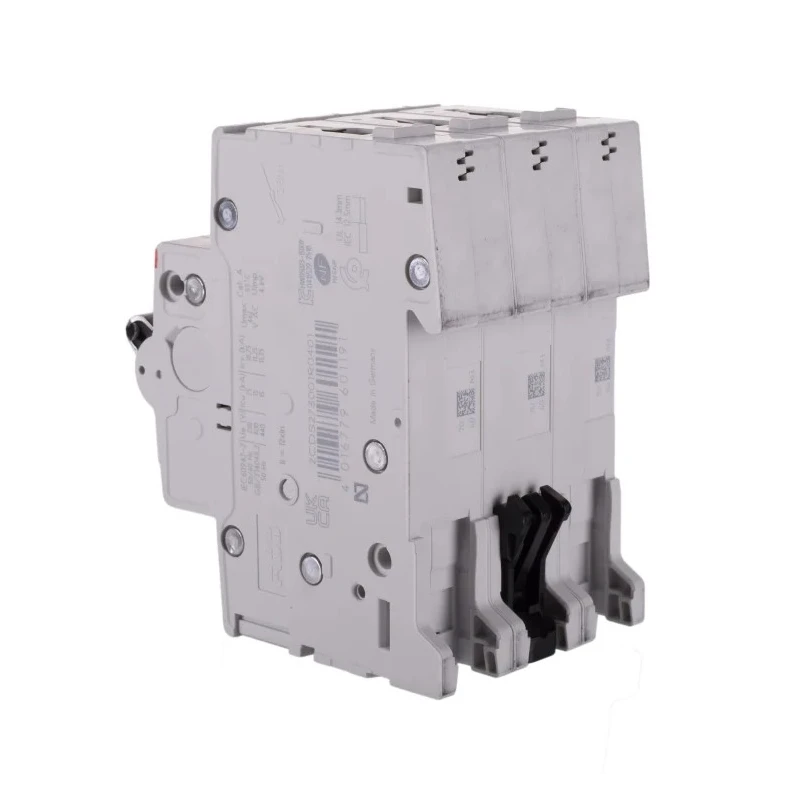

ABB System Pro M Compact S200M Miniature Circuit Breaker 3-Pole 40A Type D 400V ac 125V dc 10kA 2CDS273001R0401 S203M-D40
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS273001R0401 S203M-D40 |
| Depth | 69mm |
| IP Rating | IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 125V dc |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal |
Key Features
- Type D tripping characteristic enables operation at 10 to 20 times the rated current for handling surge currents.
- Designed for 3 poles to simultaneously break three circuits safely and efficiently.
- Rated for 400V ac and 125V dc ensuring versatility in AC and DC systems.
- High breaking capacity of 10kA ensures safety under high fault conditions.
- Durable IP20 protection rating offers finger-safe enclosure against objects larger than 12 mm.
- Snap-on DIN rail mounting ensures quick and secure installation without specialized tools.
- Wide temperature range of -25°C to +55°C suitable for demanding environments.
- Features red and green contact position indicators for clear ON/OFF status visibility.
Product Description
ABB 2CDS273001R0401 S203M-D40 Miniature Circuit Breaker from the System Pro M Compact S200M series is engineered for effective overcurrent protection in commercial and industrial electrical installations. Rated at 40A with Type D tripping characteristics, this device supports heavy-duty applications by tripping between 10 to 20 times the nominal current, ideal for circuits with high surge currents.
This 3-pole breaker can disconnect three circuits simultaneously, enhancing safety during faults. It is suitable for use in both AC (400V) and DC (125V) systems, broadening its application scope. The high breaking capacity of 10kA equips this breaker to withstand substantial short circuit currents without damage.
The breaker features thermal tripping mechanism and a secure IP20 finger-safe enclosure, preventing accidental contact with live components. Its design allows quick snap-on mounting to standard DIN rails, facilitating efficient installation and maintenance without specialized tools.
Operating reliably in ambient temperatures from -25°C to +55°C, it withstands challenging environmental conditions. Visual indication of contact status is provided by red and green markers, enabling quick verification of circuit states.
Conforming to rigorous IEC/EN 60898-1 and IEC/EN 60947-2 standards, this ABB breaker assures compliance with international quality and safety norms. Its compact dimensions (Height: 88mm, Width: 52.5mm, Depth: 69mm) allow integration in various panel and distribution board configurations.
Typical applications include industrial automation systems, data centers, and construction industry electrical panels where durable and reliable circuit protection is essential. ABB's System Pro M Compact breakers are trusted solutions for risk mitigation against electrical faults and overcurrents.
Explore a range of ABB Miniature Circuit Breakers and accessories at EnvMart for industrial-grade electrical protection solutions. Type D tripping characteristic enables operation at 10 to 20 times the rated current for handling surge currents.
Durable IP20 protection rating offers finger-safe enclosure against objects larger than 12 mm. Snap-on DIN rail mounting ensures quick and secure installation without specialized tools. High breaking capacity of 10kA ensures safety under high fault conditions.
Wide temperature range of -25°C to +55°C suitable for demanding environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A, making it suitable for various electrical applications.
The breaking capacity of this circuit breaker is 10kA, which allows it to handle substantial short circuit currents safely.
It is rated for 400V AC and 125V DC, providing versatility for both AC and DC systems.
The Type D tripping characteristic enables operation at 10 to 20 times the rated current, allowing it to handle high surge currents effectively.
This unit has an IP20 protection rating, which offers a finger-safe enclosure against objects larger than 12 mm.
The dimensions are 88mm in height, 52.5mm in width, and 69mm in depth, allowing for integration into various panel configurations.
It features snap-on DIN rail mounting, which allows for quick and secure installation without the need for specialized tools.
This model operates reliably in ambient temperatures ranging from -25°C to +55°C, suitable for demanding environments.
It conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring compliance with international quality and safety norms.
This circuit breaker is a 3-pole device, allowing it to simultaneously disconnect three circuits for enhanced safety.
It uses screw terminals for secure connections, ensuring reliable electrical contact.
Typical applications include industrial automation systems, data centers, and electrical panels in the construction industry, where effective circuit protection is essential.
