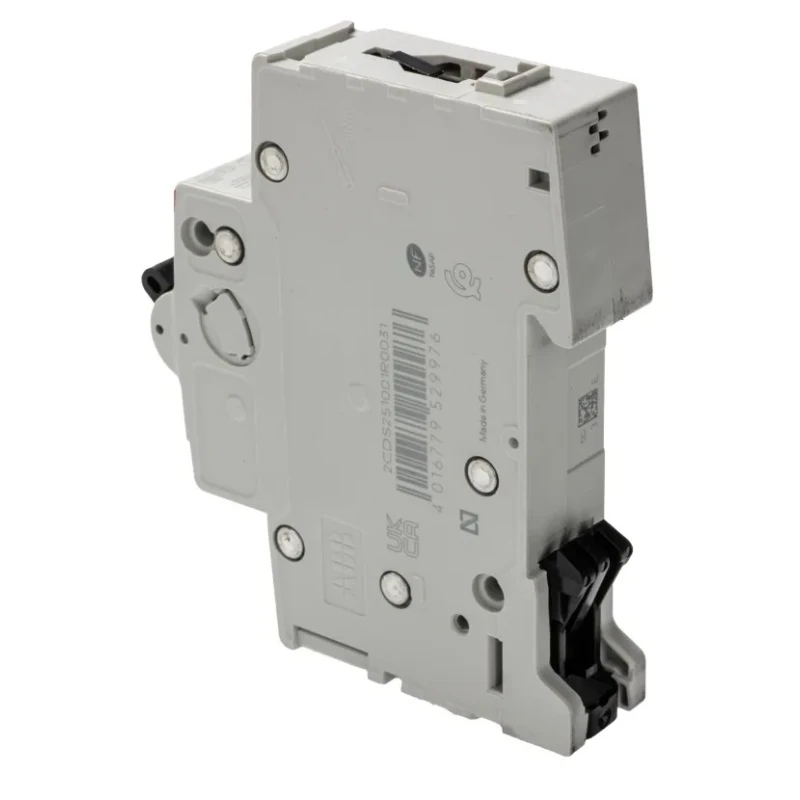

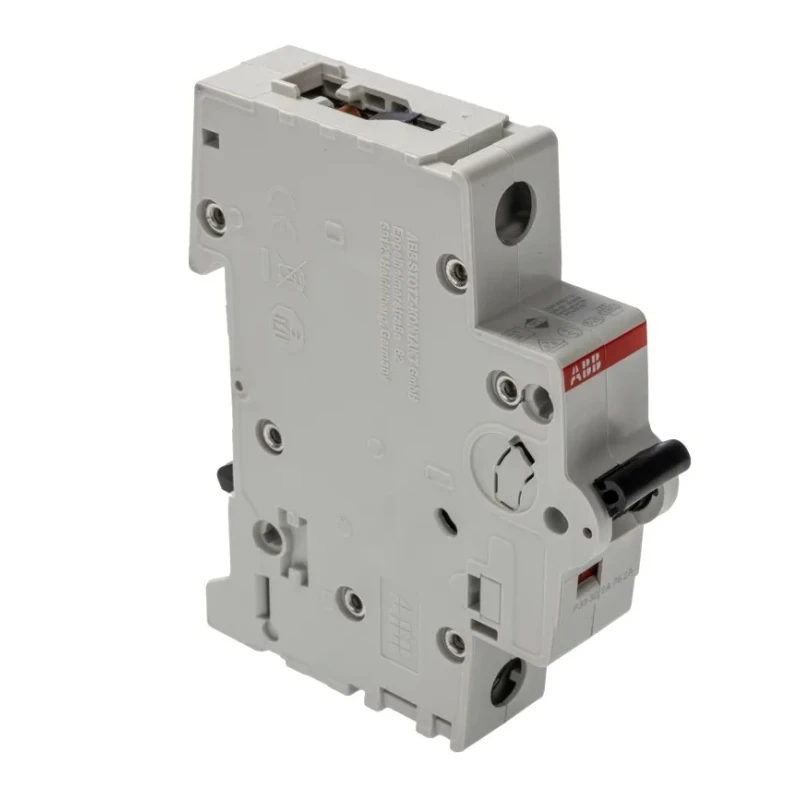

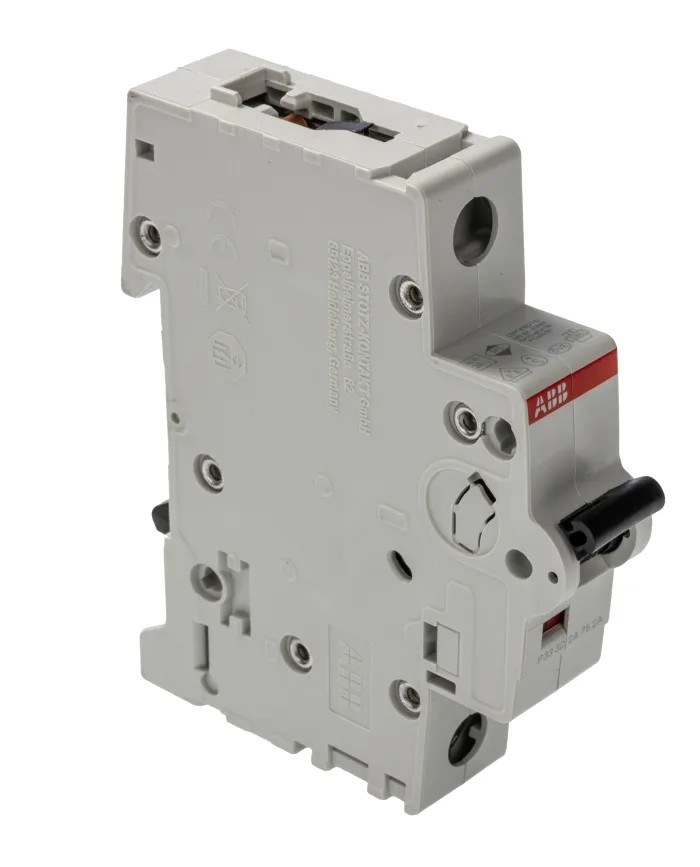

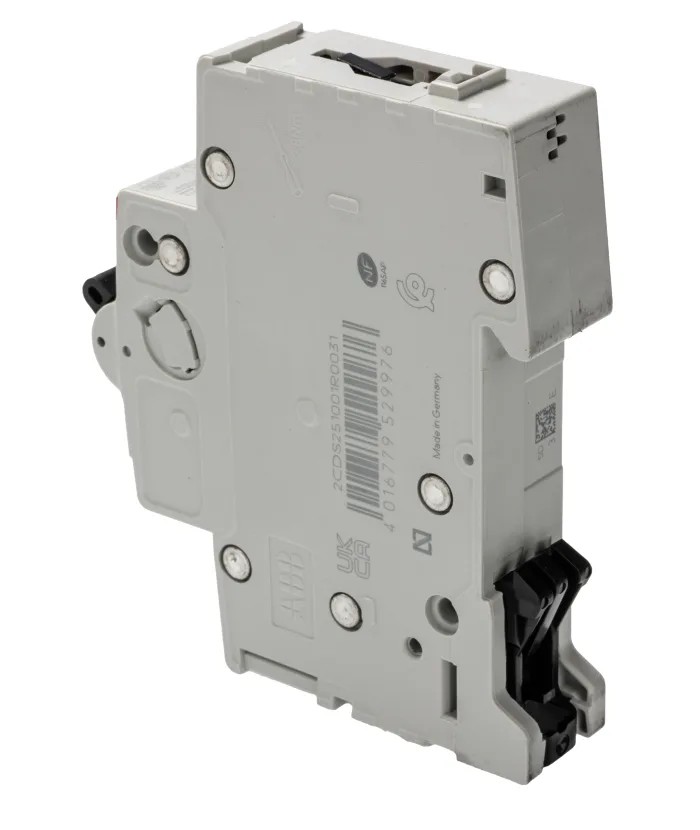

ABB System Pro M Compact S200M Miniature Circuit Breaker, 1-Pole, 10A, Type D, 230V AC, 72V DC, 15 2CDS271001R0101 S201M-D10

ABB 2CDS271001R0101 S201M-D10 System Pro M Compact S200M Miniature Circuit Breaker is engineered for precise protection of electrical circuits in demanding commercial and industrial environments. Rated at 10A current and equipped with Type D tripping characteristics, this MCB efficiently handles high inrush currents often encountered in inductive loads such as motors and transformers.

The breaker supports a rated AC voltage of 230V and DC voltage of 72V, offering flexible usage across alternating and direct current systems. It features a high breaking capacity of 15 kA, providing robust short circuit interrupting capability to safeguard electrical installations from fault conditions.

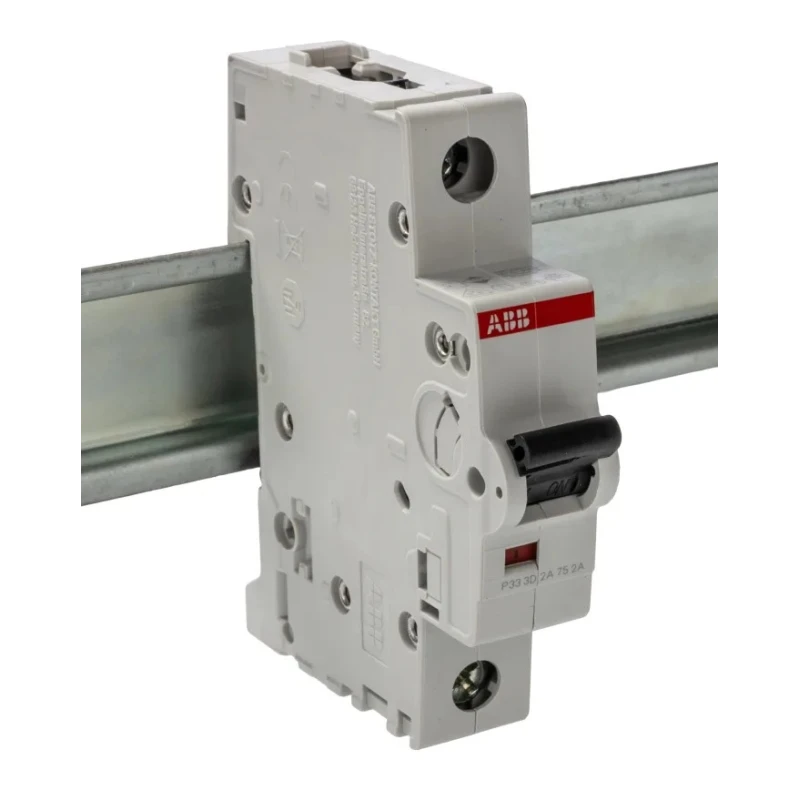

Mounted easily on DIN rails and utilizing screw terminals, the device ensures reliable and straightforward installation within electrical panels. Measuring only 17.5mm in width, its compact design optimizes space utilization in distribution boards.

The thermal electromechanical tripping mechanism guarantees consistent operation by combining thermal overload detection with an electromechanical response, enhancing protection accuracy.

Classified as IP20, this Miniature Circuit Breaker offers adequate protection against solid object ingress while conforming to rigorous IEC/EN safety and performance standards IEC/EN 60898-1 and IEC/EN 60947-2. The lever-type reset actuator provides simple manual resetting after trips.

Primary applications include protection in commercial electrical distribution systems and industrial circuit boards where high inrush currents are common. While primarily suited for commercial and industrial use, consultation is advised for residential applications.

Manufactured in Germany, the product reflects ABB’s commitment to durability, safety, and compliance in electrical protection solutions. This MCB is an essential component in electrical safety infrastructure to prevent damage caused by overload and short circuit scenarios, preserving equipment integrity and operational continuity.

Single pole breaker with 10A rating and Type D tripping. High breaking capacity of 15 kA for fault protection. Supports 230V AC and 72V DC voltages. Compact size with 17.5mm width for space-saving panel designs. DIN rail mounting and screw terminals ensure easy installation.

Thermal electromechanical trip mechanism for reliable operation. Rated IP20 for basic environmental protection. Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Produced in Germany assuring quality and performance.
